Home
>>
Toyota
>>
1999
>>
Camry Solara SLEV6 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

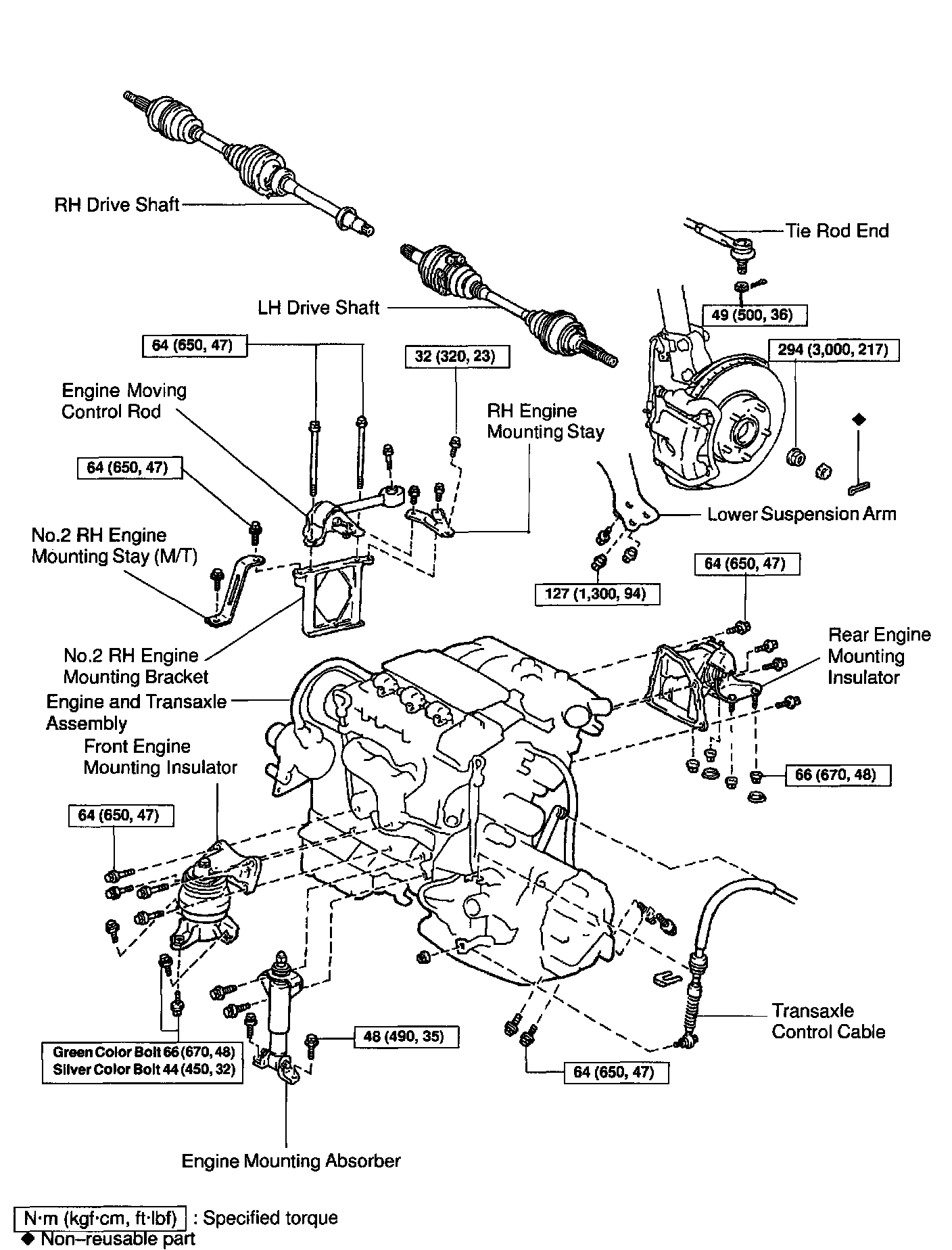

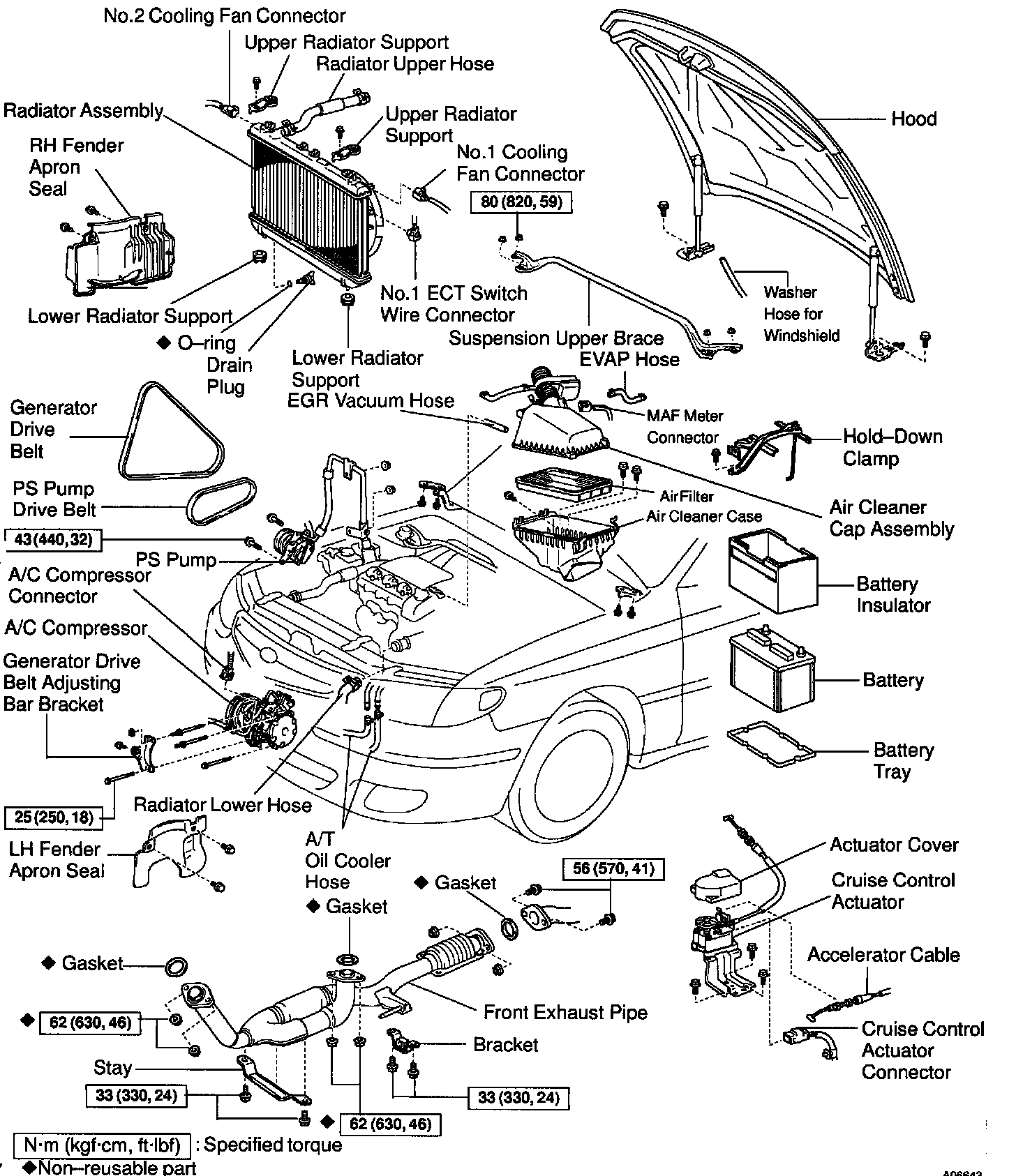

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
