Camry Solara SLEV6 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Door Position Sensor / Switch, HVAC
>>

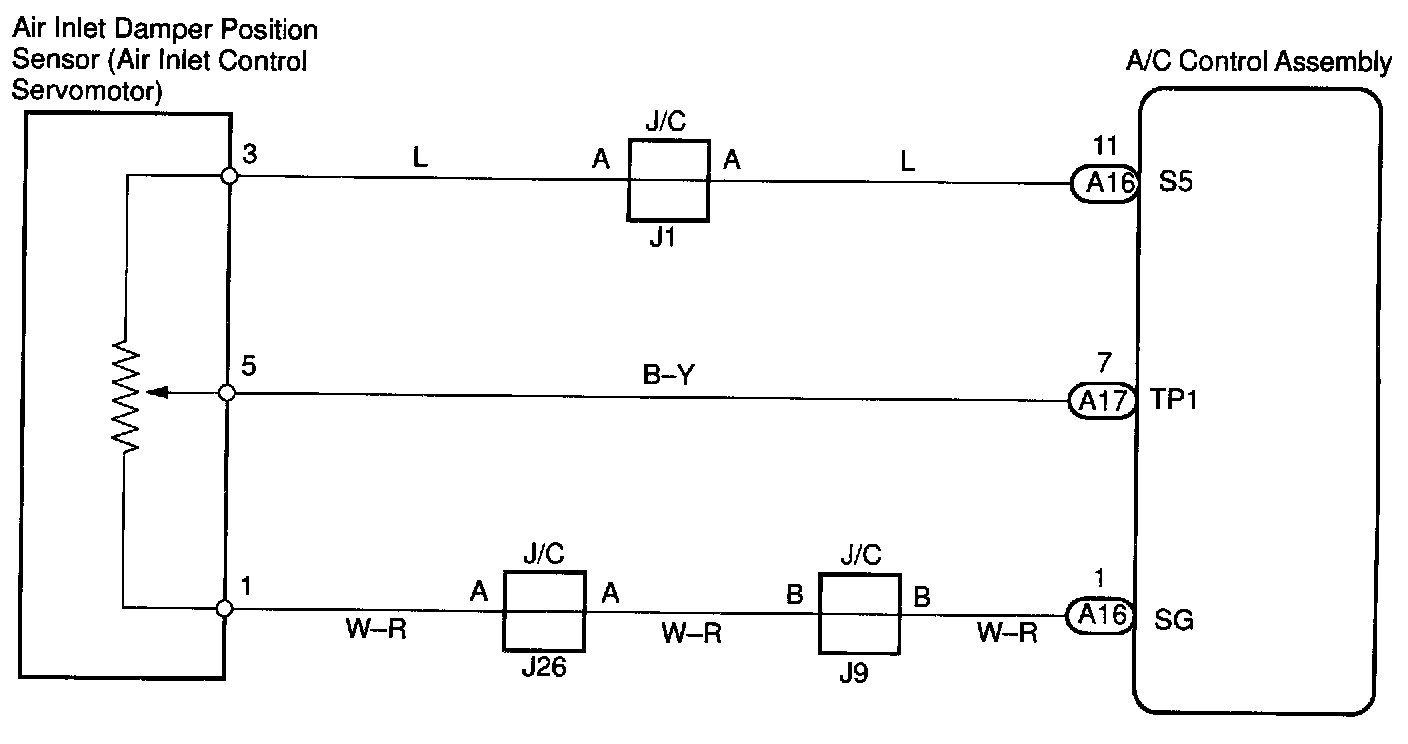

Air Inlet Control Servomotor Position Sensor
Air Inlet Control Servomotor Position Sensor
