ABS w/Traction Control (TRAC)

REMOVAL





1. REMOVE RIGHT FRONT FENDER LINER
2. REMOVE A/C TUBE CLAMP BRACKET BOLT

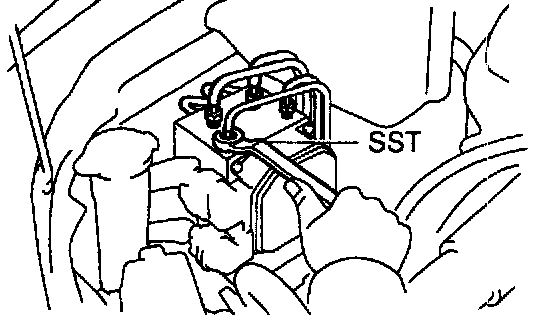

3. DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS & TRAC actuator.
SST 09751-36011
4. REMOVE ABS & TRAC ACTUATOR ASSEMBLY
a. Disconnect the 2 connectors.
b. Remove the 2 bolts, 2 nuts and ABS & TRAC actuator assembly.
5. REMOVE ABS & TRAC ACTUATOR
a. Remove the 2 nuts and ABS & TRAC actuator from actuator bracket.
b. Remove the 2 holders and 3 cushions from the ABS & TRAC actuator.

INSTALLATION
1. INSTALL ABS & TRAC ACTUATOR
a. Install the 3 cushions and 2 holders to the ABS & TRAC. actuator.
b. Install the ABS & TRAC actuator and 2 nuts to the actuator bracket.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
2. INSTALL ABS & TRAC ACTUATOR ASSEMBLY
a. Install the ABS & TRAC actuator assembly, 2 bolts and 2 nuts.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
b. Connect the 2 connectors.

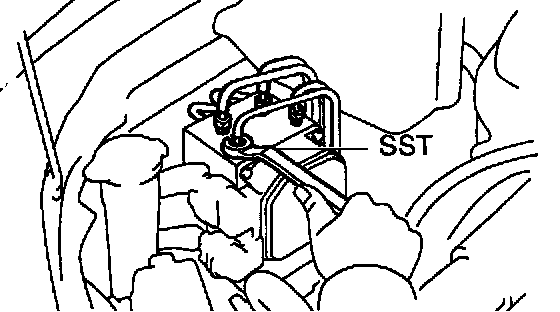

3. CONNECT BRAKE LINES
Using SST, connect the 6 brake lines to the ABS & TRAC actuator.
SST 09751-36011
Torque:
10 mm nut 15 Nm (155 kgf-cm, 11 ft. lbs.)
12 mm nut 20 Nm (200 kgf-cm, 14 ft. lbs.)
4. INSTALL A/C TUBE CLAMP BRACKET BOLT
5. INSTALL RIGHT FRONT FENDER LINER
6. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM
7. CHECK FOR LEAKS
