With Toyota Hand-Held Tester

Using TOYOTA hand-held tester, check the speed sensor signal

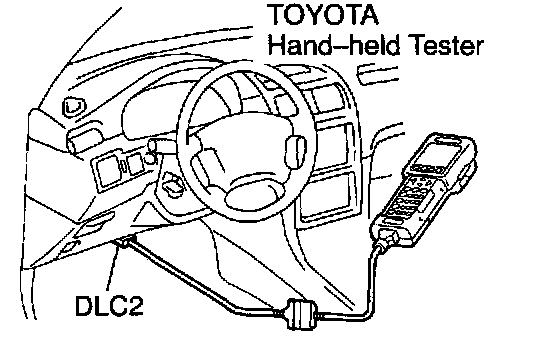

1. Hook up the TOYOTA hand-held tester to the DLC2.
2. When the ignition switch is turned ON, check that the ABS warning light goes on for a few seconds.
3. Turn the ignition switch OFF.




4. Using SST, connect terminals Ts and E1 of DLC1.
SST 09843-18020

5. Start the engine.





6. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit .

7. Drive vehicle straight forward.

HINT: Drive vehicle at 45 - 55 kph (28 - 34 mph) for several seconds.
If the brake is applied during the check, the check routine must be started again.

8. Read the DTC by following the prompts on the tester screen.
ABS (Antilock Brake System)

Please refer to the TOYOTA hand-held tester operator's manual for further details.
