Manual Transmission/Transaxle

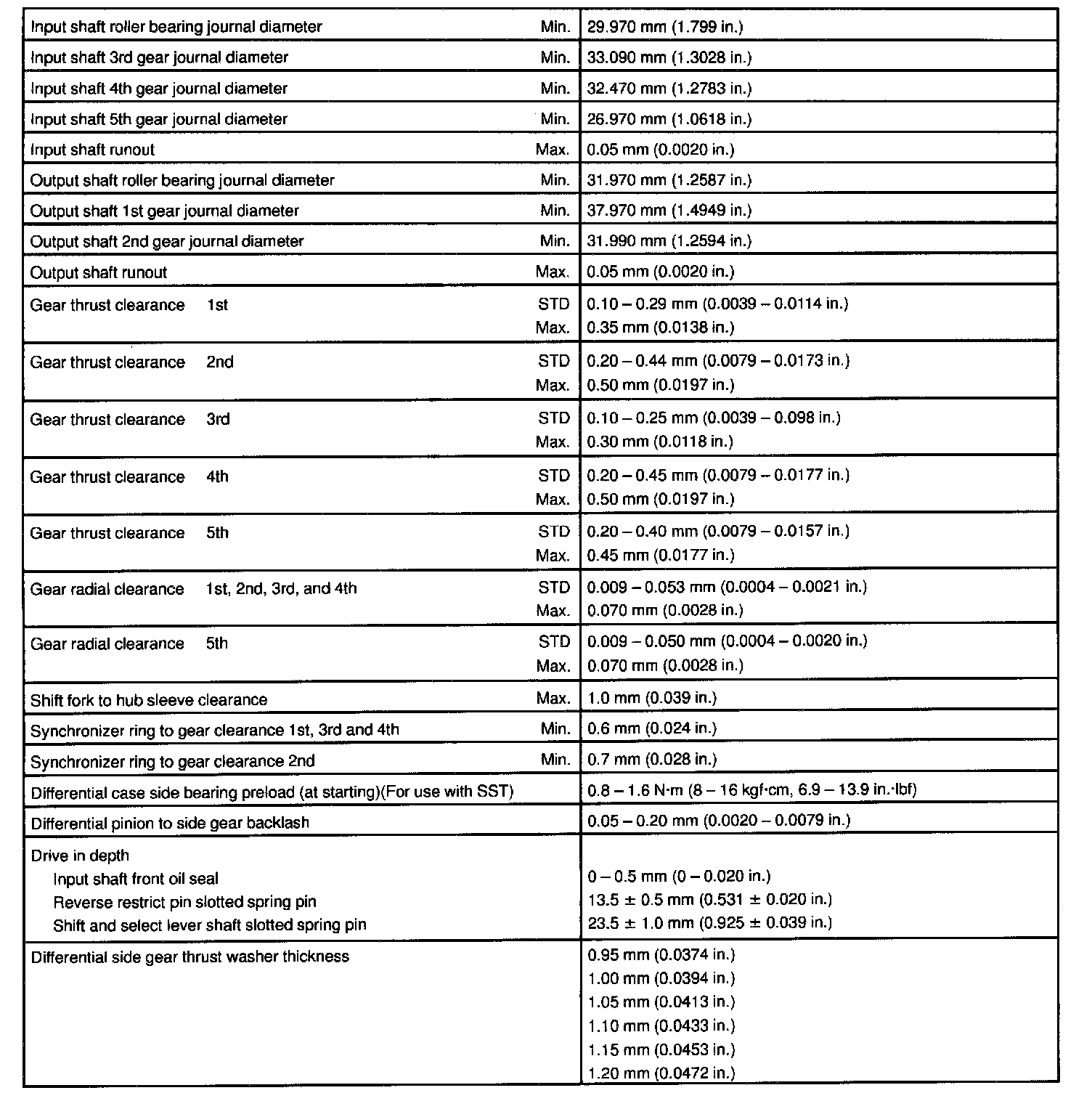

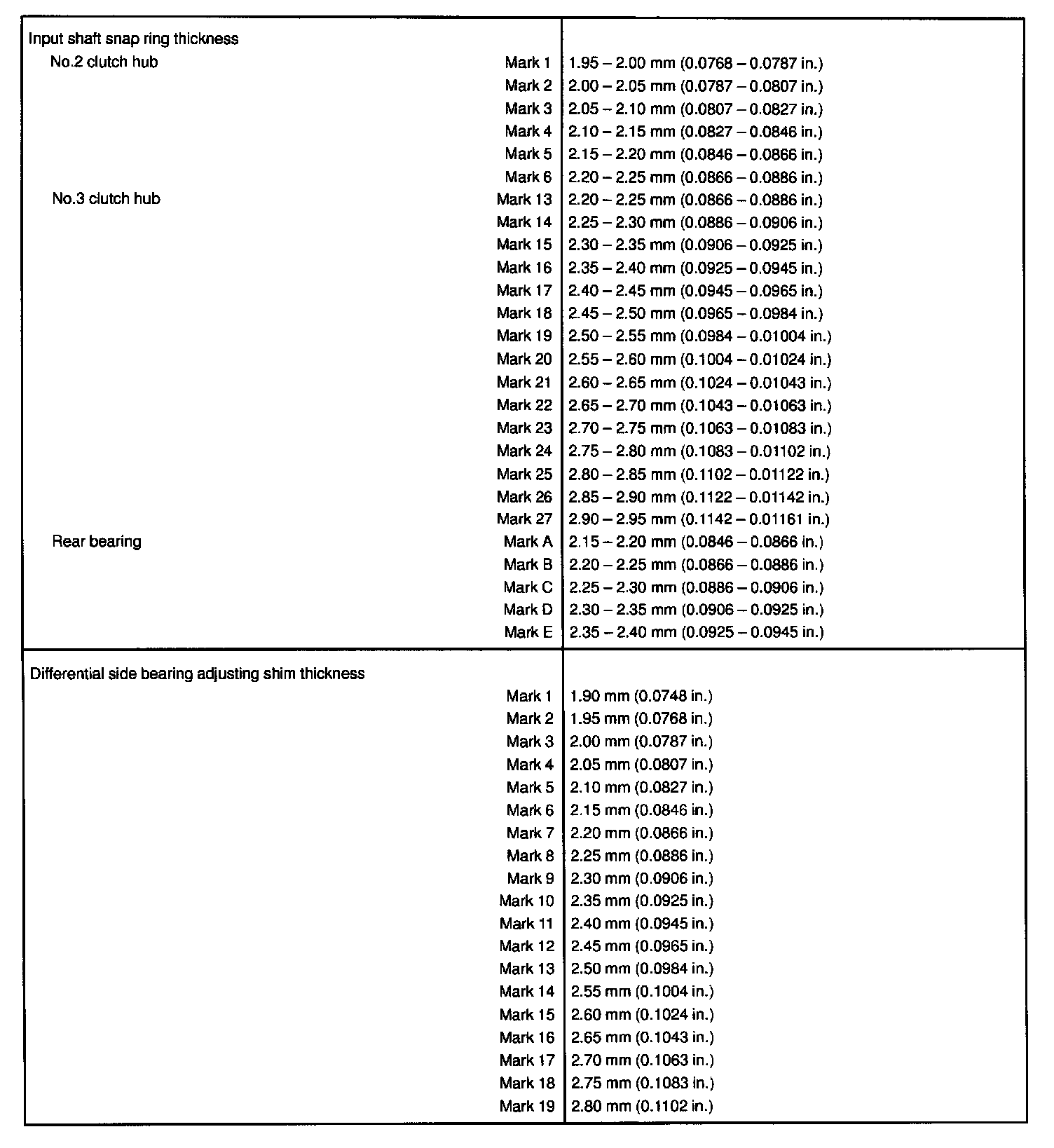

SERVICE SPECIFICATIONS

TORQUE SPECIFICATIONS
Transaxle To Engine:
17 mm Head 64 Nm (47 ft. lbs.)
14 mm Head 46 Nm (34 ft. lbs.)
Transaxle To:
LH Engine Mounting Bracket 64 Nm (47 ft. lbs.)
Engine Mount Bracket 52 Nm (38 ft. lbs.)
Rear Bearing Retainer 42 Nm (31 ft. lbs.)
Reverse Shift Arm Bracket 18 Nm (13 ft. lbs.)
Reverse Idler Shaft Lock Bolt 29 Nm (22 ft. lbs.)
