O/D Off Indicator Light Remains on

CIRCUIT DESCRIPTION
The O/D main switch contacts go open when the switch is pushed in and go closed when it is pushed out.
In O/D main switch is in OFF position, the O/D OFF indicator light lights up, and the ECM prohibits shifting to overdrive.




WIRING DIAGRAM

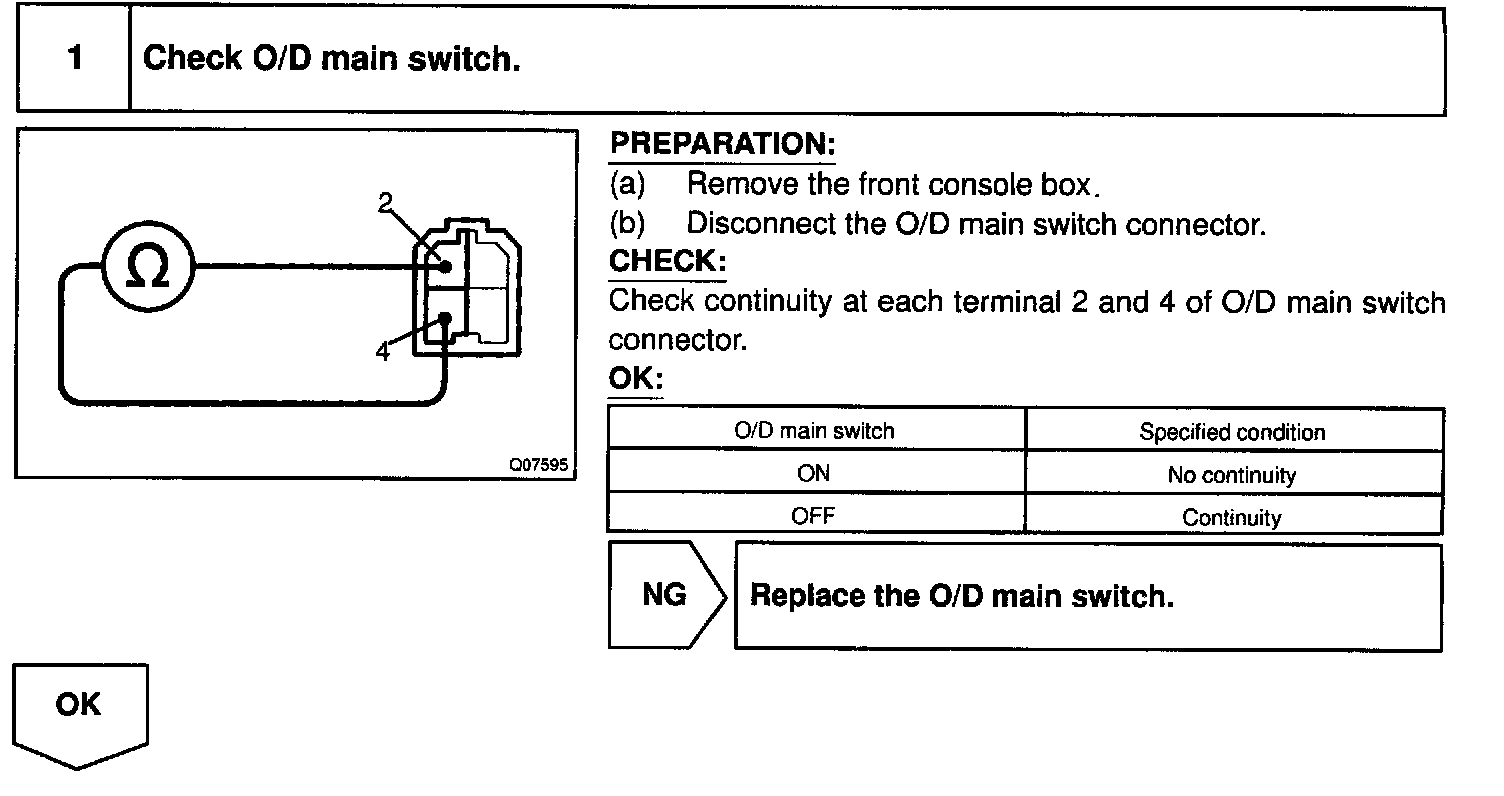

Step 1:

Step 2:

O/D OFF Indicator light remains ON

INSPECTION PROCEDURE
