A/C Evaporator Temperature Sensor Circuit

A/C Evaporator Temp. Sensor Circuit

CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the ECM.




WIRING DIAGRAM

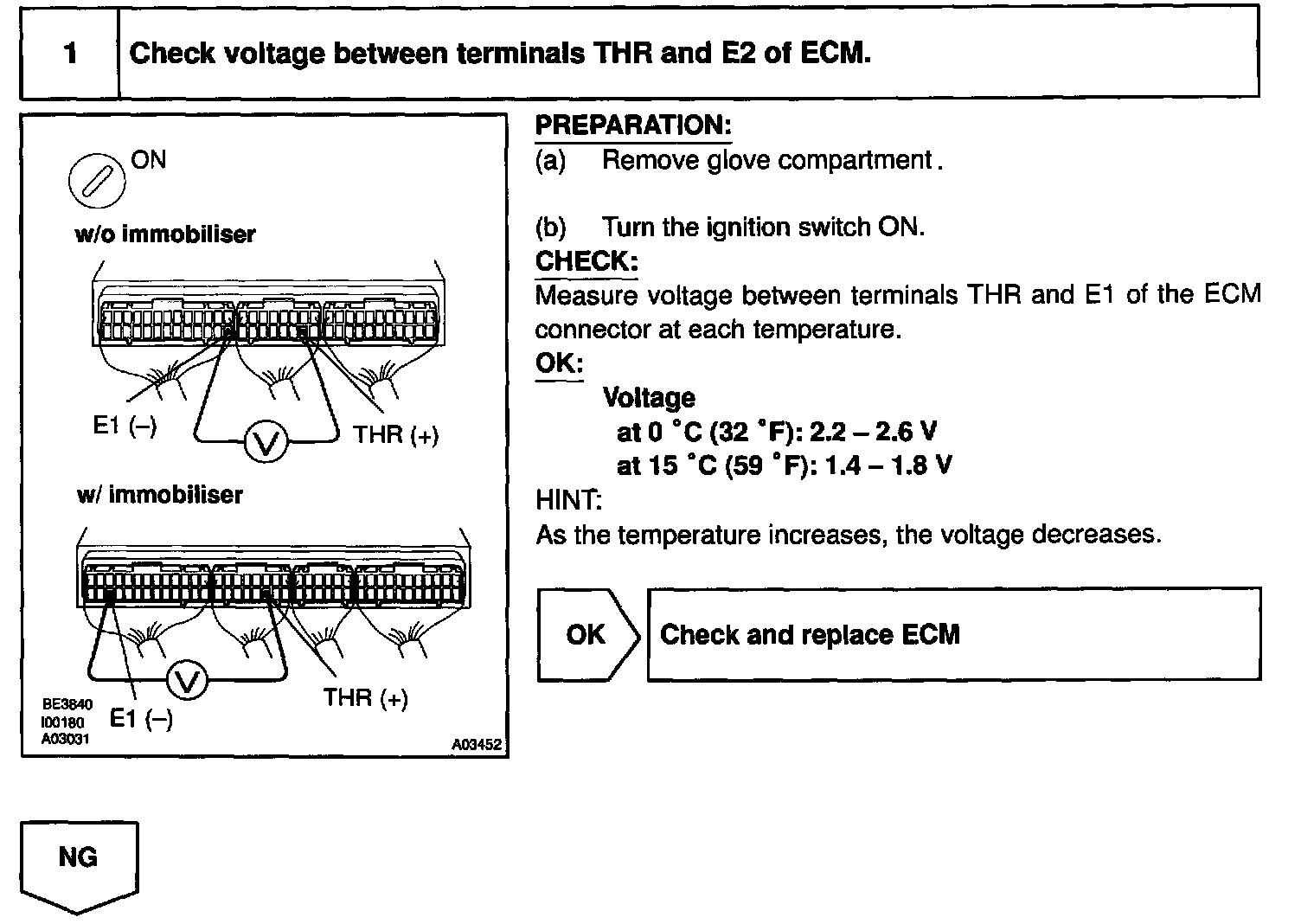

Step 1:

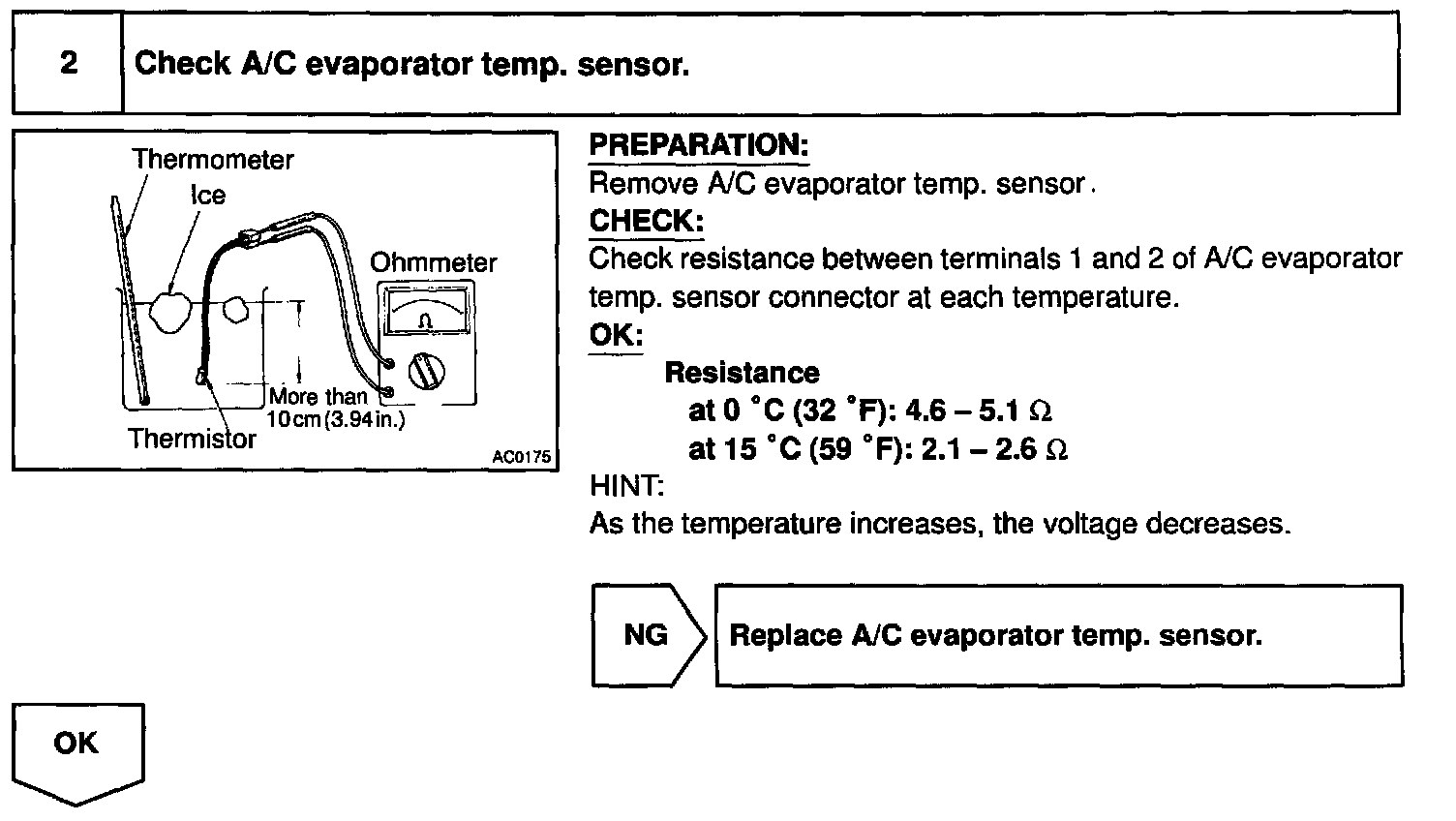

Step 2:

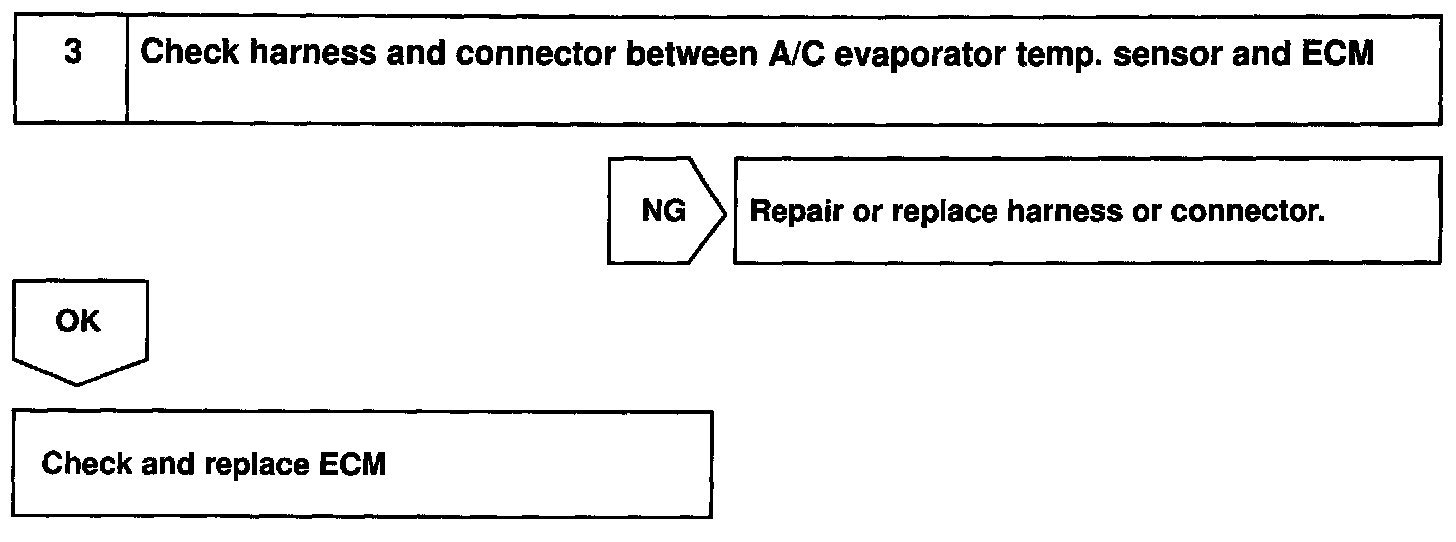

Step 3:

INSPECTION PROCEDURE
