Air-Fuel Ratio (A/F) Sensor

Air-Fuel Ration (A/F) Sensor (California):

COMPONENTS




1. INSPECT HEATER RESISTANCE OF A/F SENSOR
a. Disconnect the A/F sensor connector.

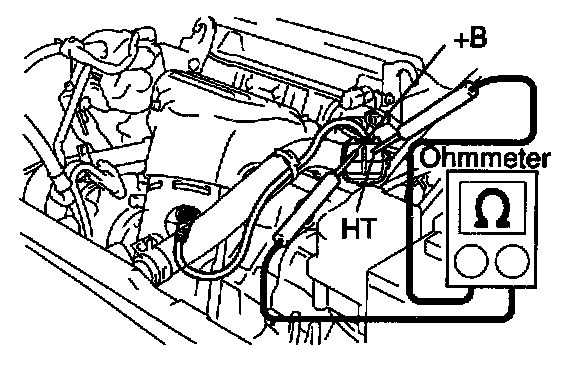

b. Using an ohmmeter, measure the resistance between terminals +B and HT.

Resistance: 0.8 - 1.4 ohms at 20° C (68° F)

If the resistance is not as specified, replace the sensor.

Torque: 44 N-m (450 kgf-cm, 32 ft.lbf)

c. Reconnect the A/F sensor connector.

2. INSPECT OPERATION OF A/F SENSOR: See "Related Diagnostic Charts" in this section
