Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSOR

a. Disconnect the camshaft position sensor connector.

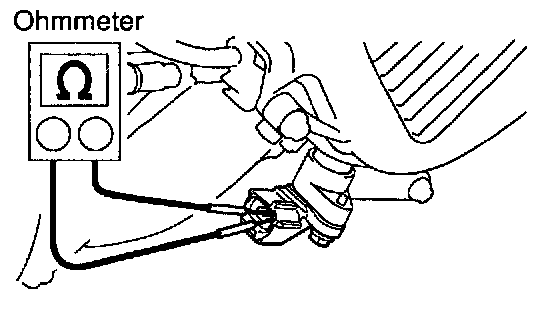

b. Using an ohmmeter, measure the resistance between terminals.




Resistance:

If the resistance is not as specified, replace the sensor.

c. Reconnect the camshaft position sensor connector.
