Balance Shaft Housing

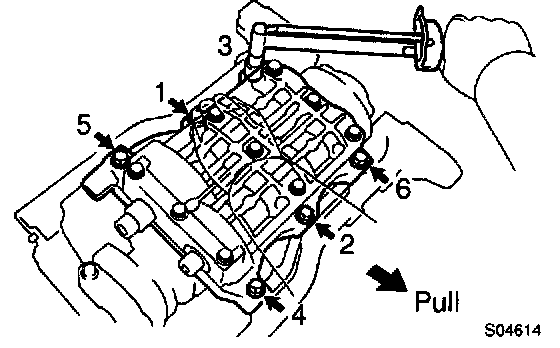

While pulling the center part of the engine balancer in the direction of the arrow, uniformly tighten the 6 bolts in serial passes, in the sequence shown.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
While pulling the center part of the engine balancer in the direction of the arrow, uniformly tighten the 6 bolts in serial passes, in the sequence shown.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
