Compressor HVAC: Service and Repair

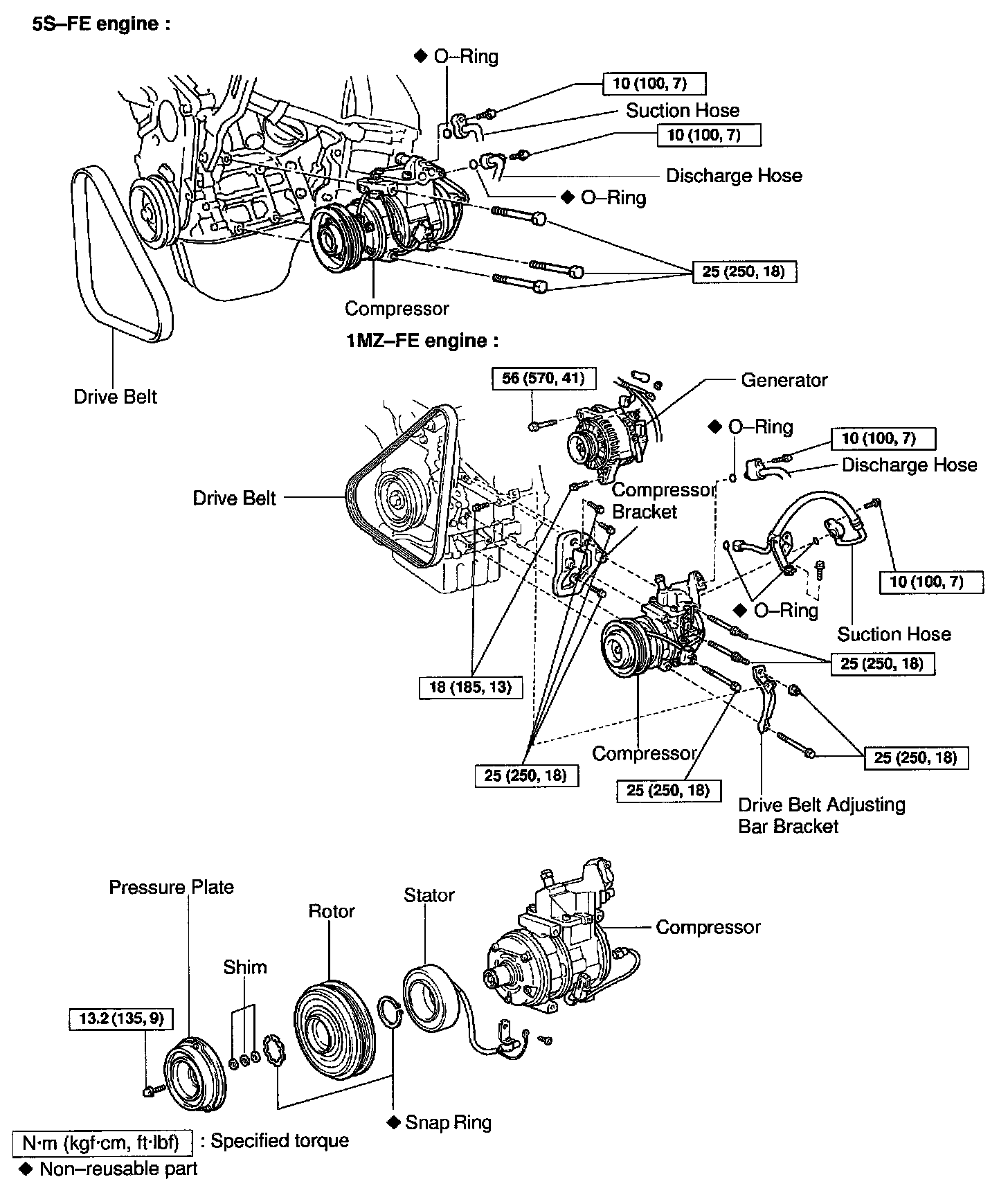

COMPONENTS

REMOVAL
1. RUN ENGINE AT IDLE SPEED WITH A/C ON FOR APPROX.10 MINUTES

2. STOP ENGINE

3. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY

4. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

5. REMOVE DRIVE BELT

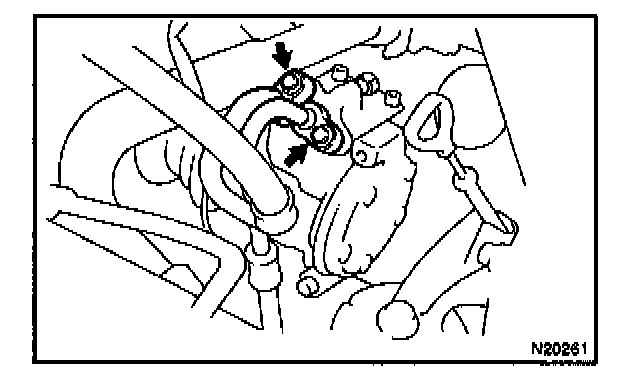

6. DISCONNECT DISCHARGE AND SUCTION HOSES
Remove the 2 bolts and disconnect both hoses

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

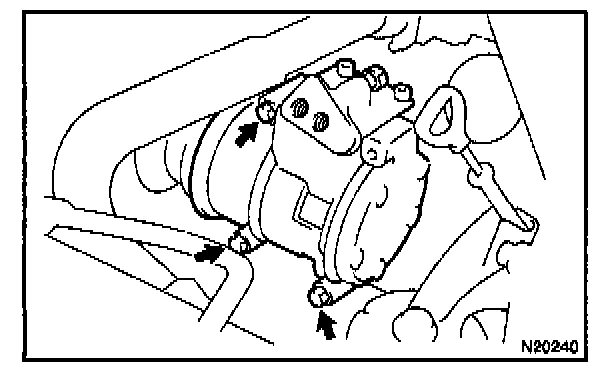

7. REMOVE COMPRESSOR
a. Disconnect the connector.
b. Remove the 3 bolts and compressor.

INSTALLATION
1. INSTALL COMPRESSOR
a. Install the compressor with 3 bolts.
Torque: 25 Nm (250 kgf.cm, 18 ft.lbf)
b. Connect the connector.

2. CONNECT DISCHARGE AND SUCTION HOSE
Connect the both hoses with the 2 bolts.
Torque: 10 Nm (100 kgf.cm, 7 ft.lbf)

NOTE: Hoses should be connected immediately after the caps have been removed.

HINT: Lubricate 2 new O-rings with compressor oil and install the tubes.

3. INSTALL SUCTION HOSE
a. Install the suction hose and tighten the bolt and nut.

Torque:
Piping joint: 32 Nm (330 kgf.cm, 24 ft.lbf) and install the hoes.

b. Install the suction hose clamping bolt.
c. Connect the wire harness clamp.

4. INSTALL AND CHECK DRIVE BELT

5. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY

6. EVACUATE AIR FROM REFRIGERATION SYSTEM AND CHARGE SYSTEM WITH REFRIGERANT
Specified amount: 800 ± 50 g (28.22 ± 1.76 oz.)

7. INSPECT FOR LEAKAGE OF REFRIGERANT
Using a gas leak detector, check for leakage of refrigerant. If there is leakage, check the tightening torque at the joints.

8. INSPECT A/C OPERATION
