Home
>>
Toyota
>>
1999
>>
Camry LE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Antitheft Lighting Relay
>>

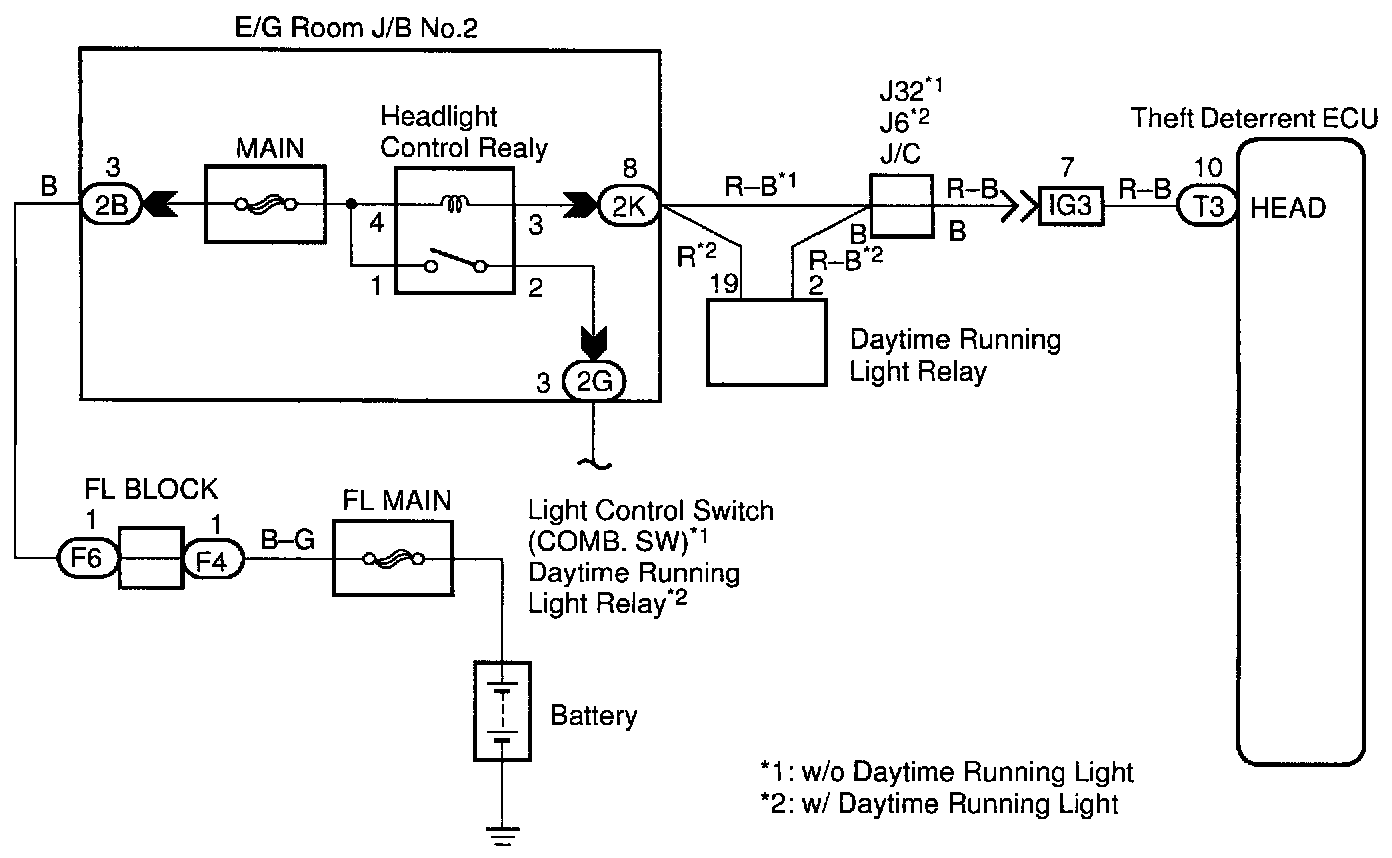

Headlight Control Relay Circuit
Headlight Control Relay Circuit
