Curiosii for ever!: Car repair manuals for everyone.
Home >> Toyota >> 1999 >> Camry LE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module

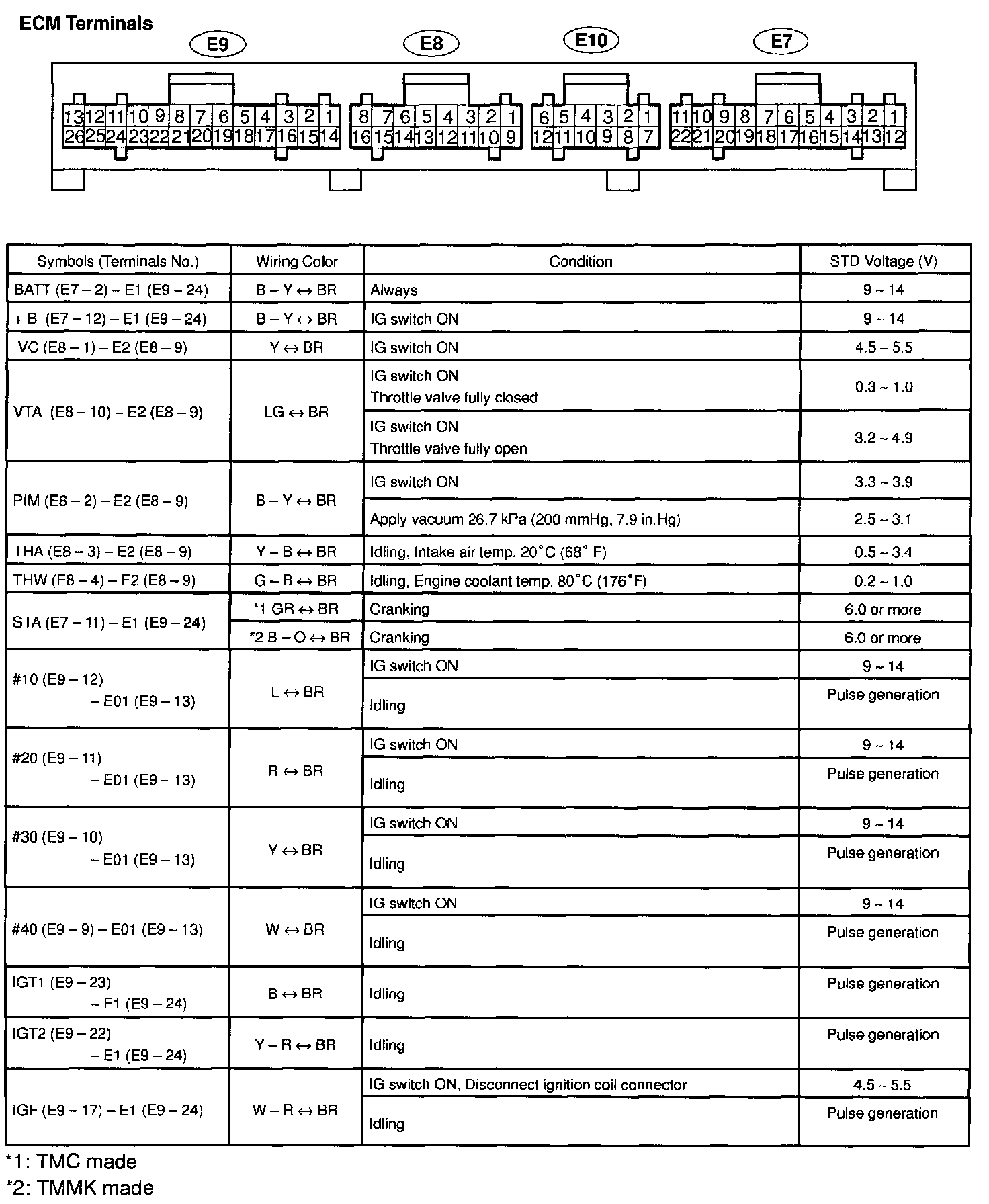

Engine Control Module

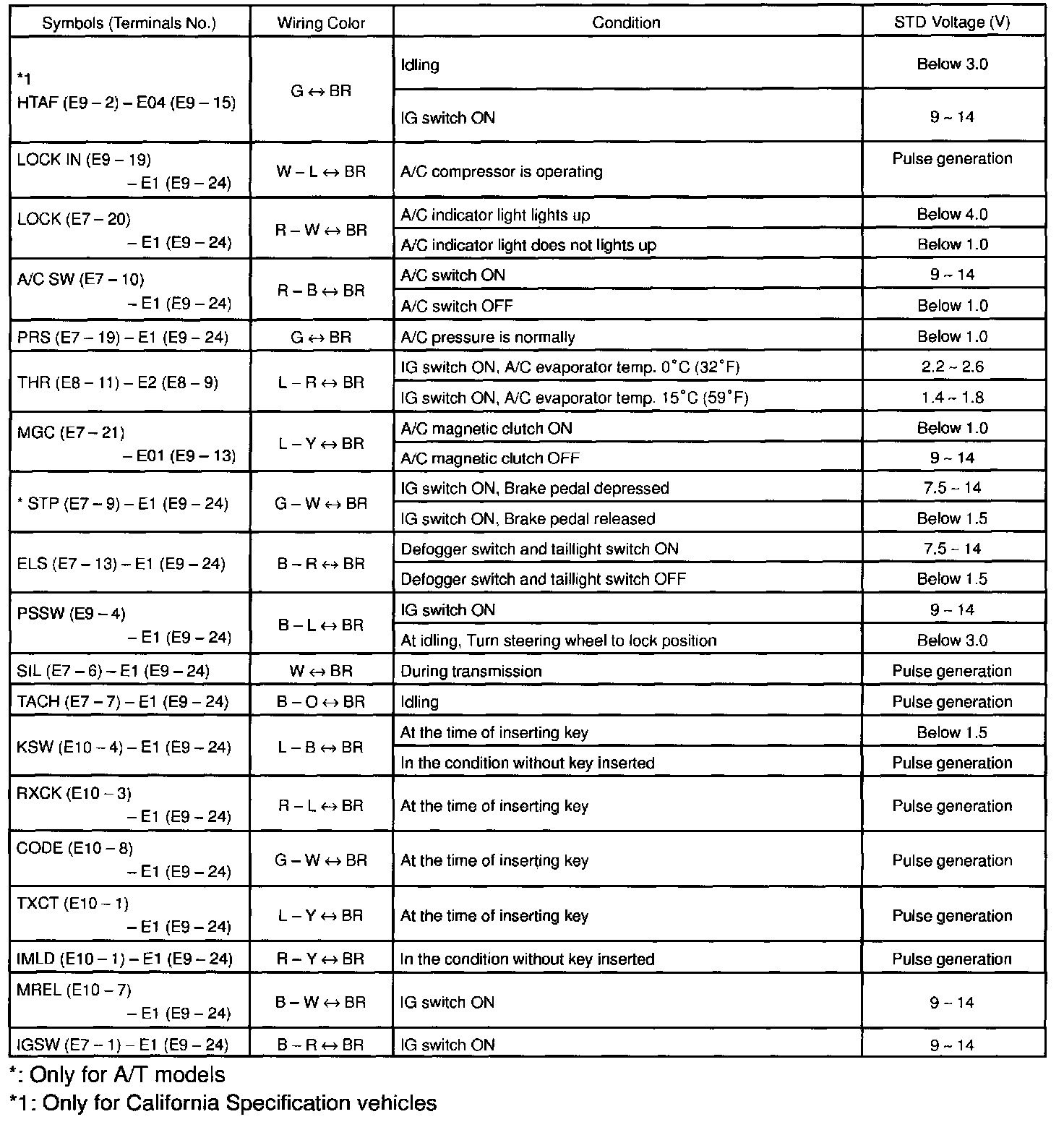

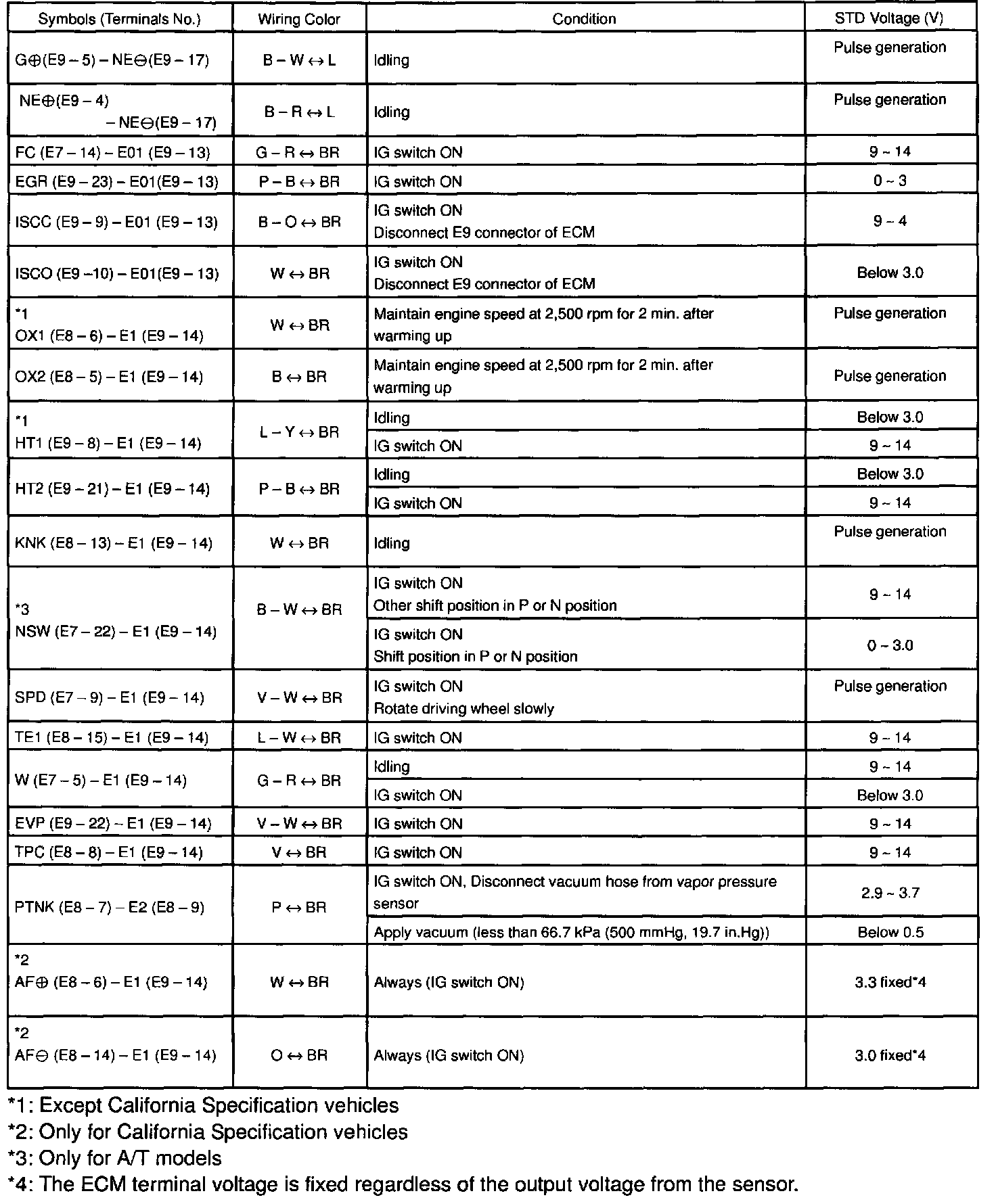

Without engine Immobilizer ECM

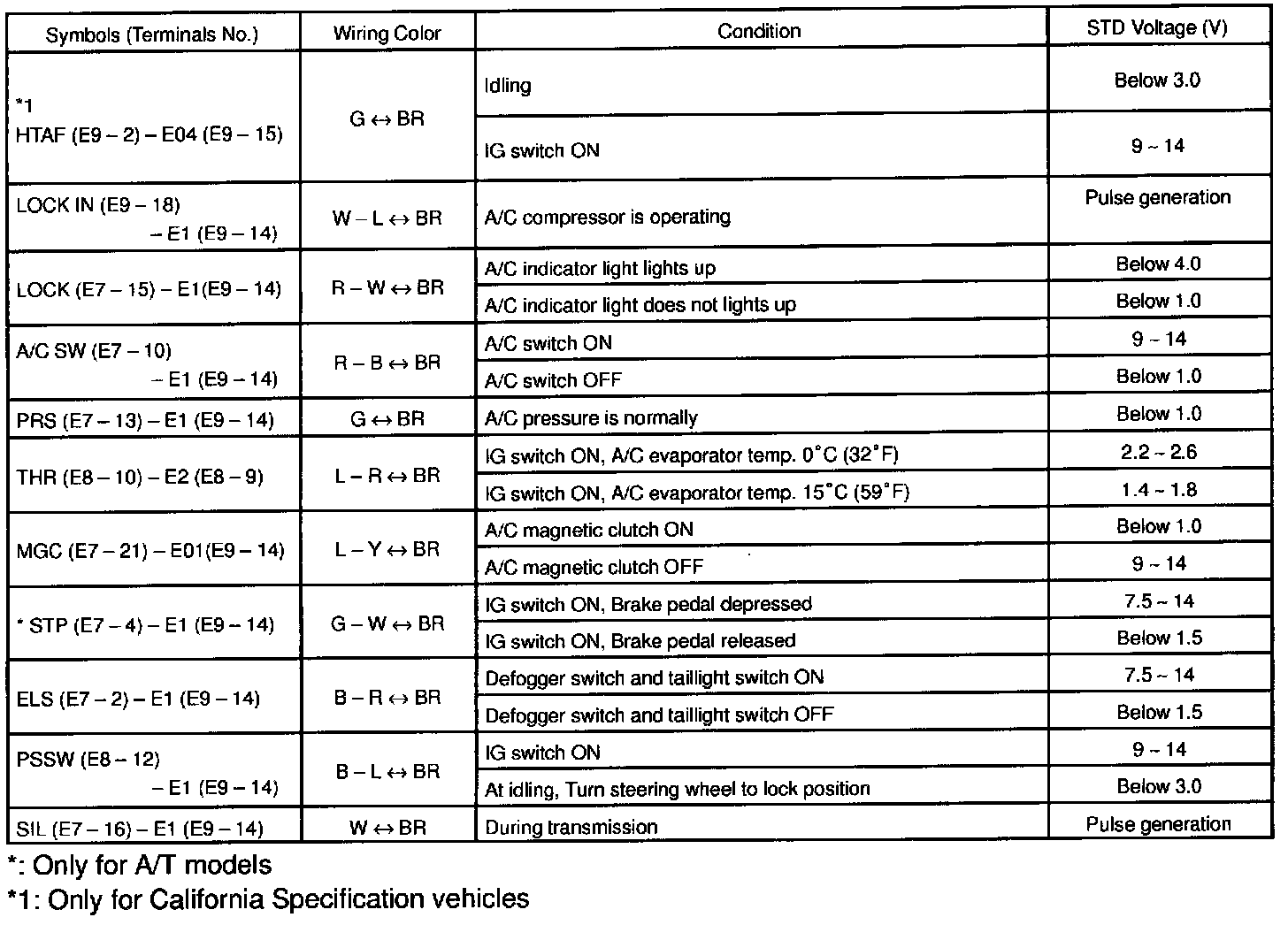

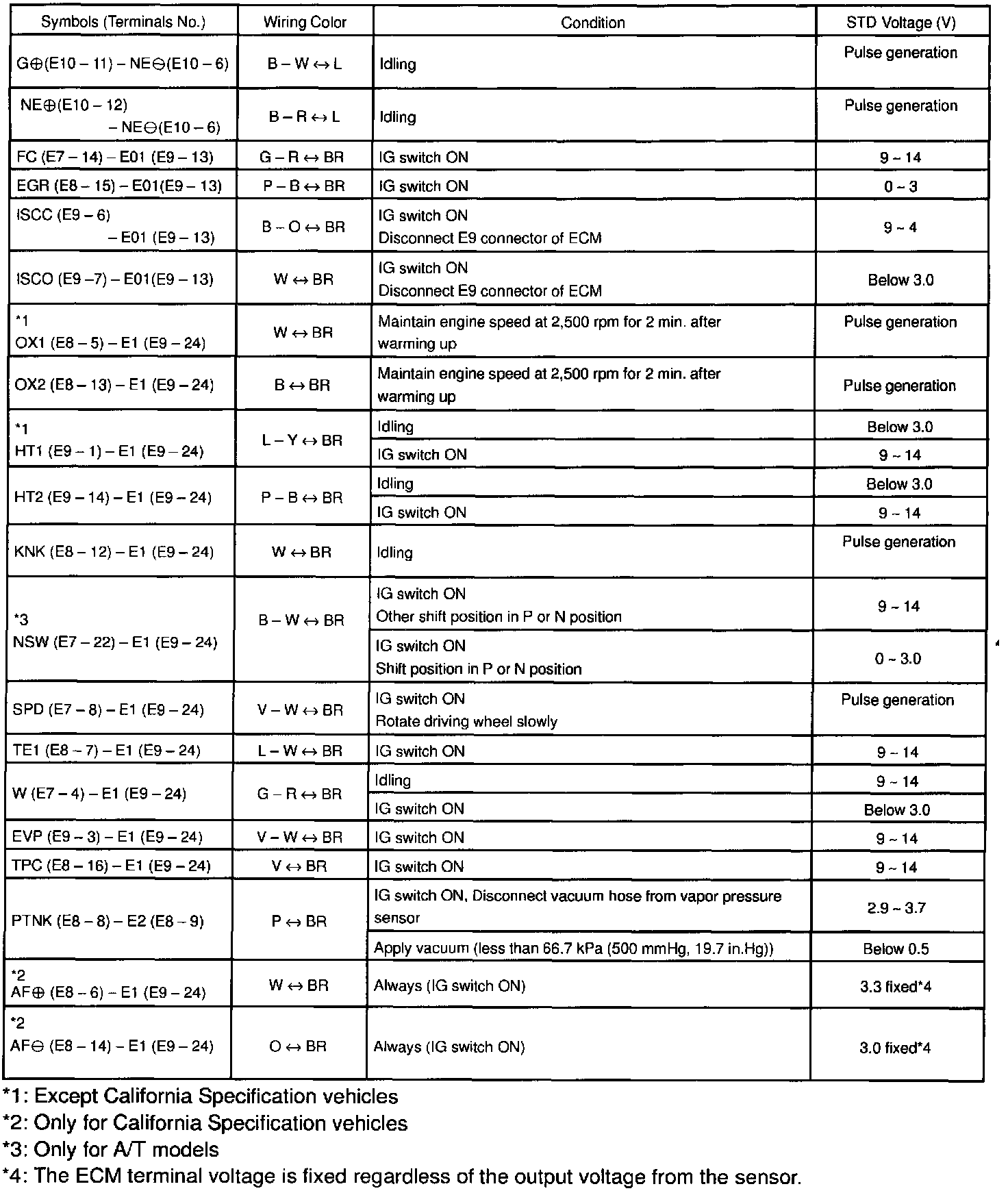

With engine Immobilizer ECM
