Main Switch Circuit (Cruise Control Switch)

Main Switch Circuit

CIRCUIT DESCRIPTION
When the cruise control main switch is turned OFF the cruise control does not operate.

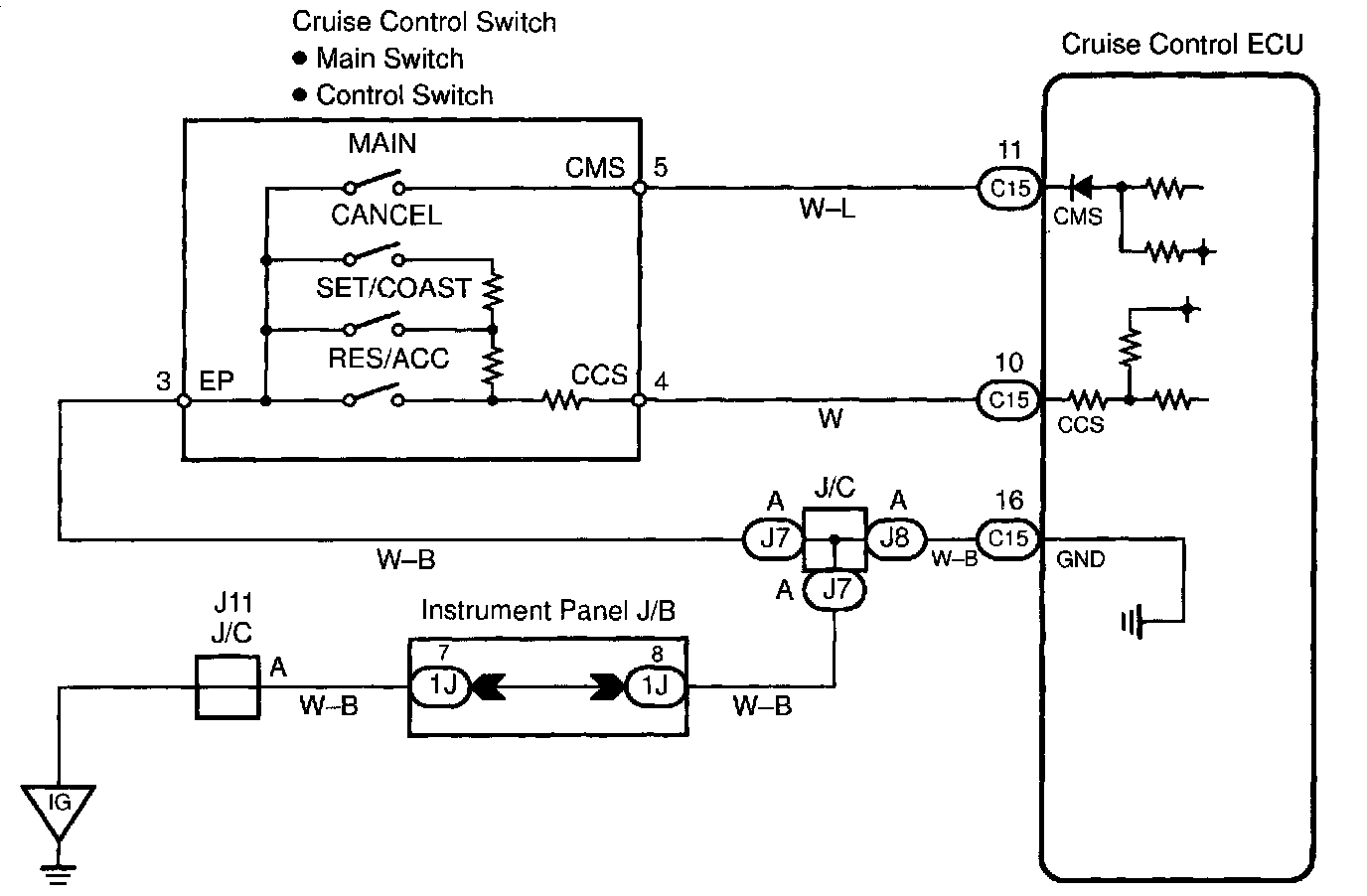

WIRING DIAGRAM

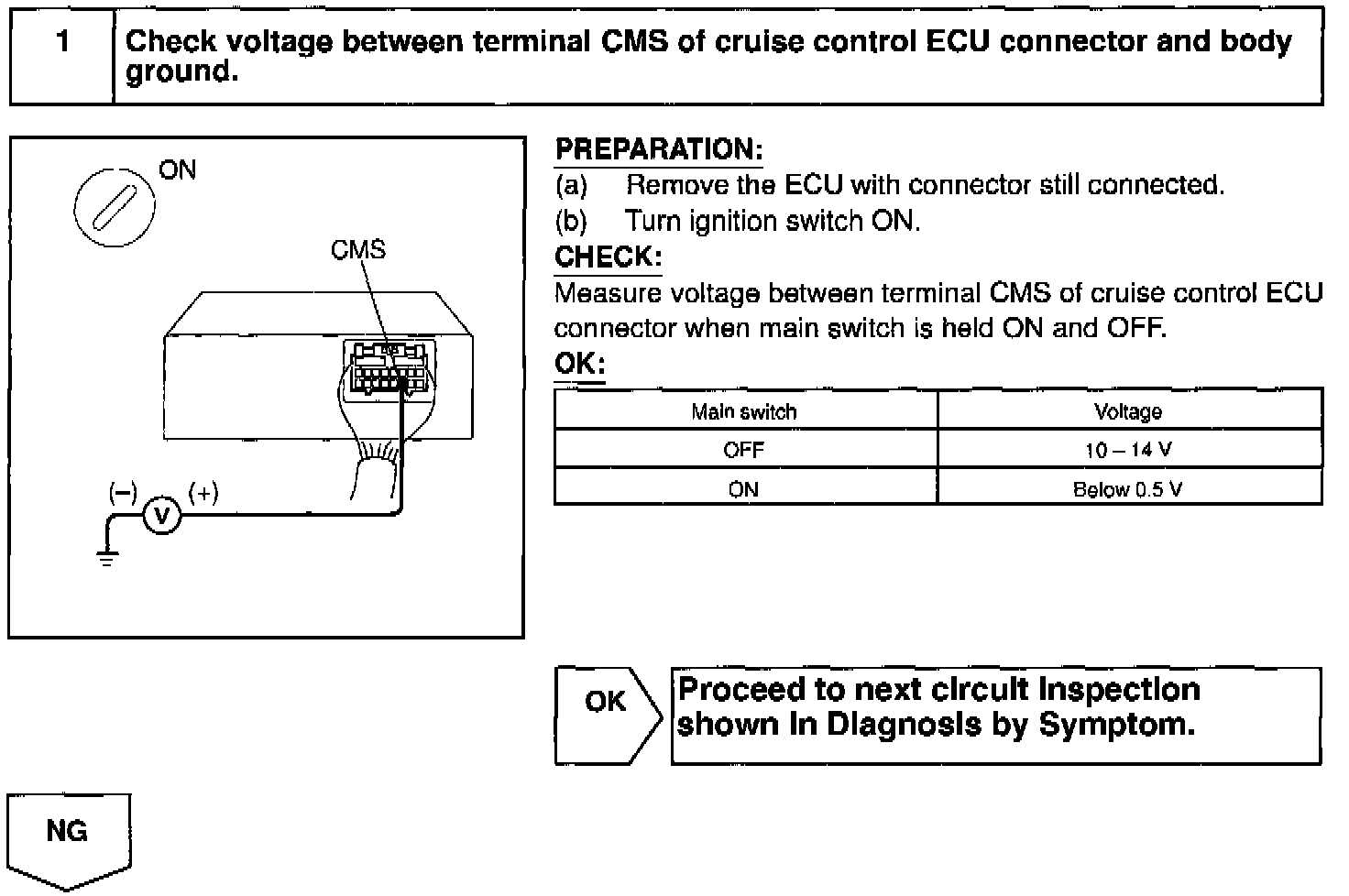

Step 1:

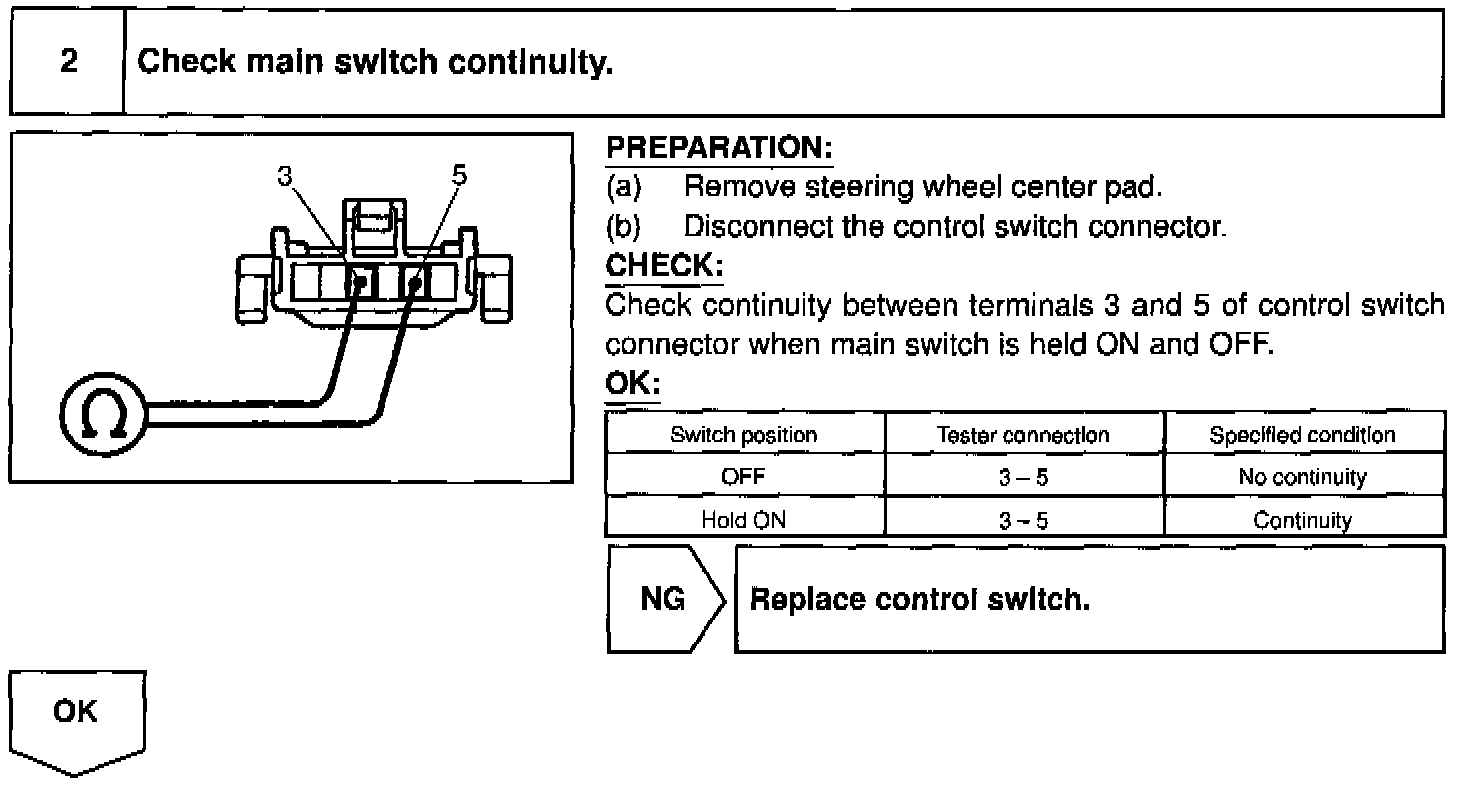

Step 2:

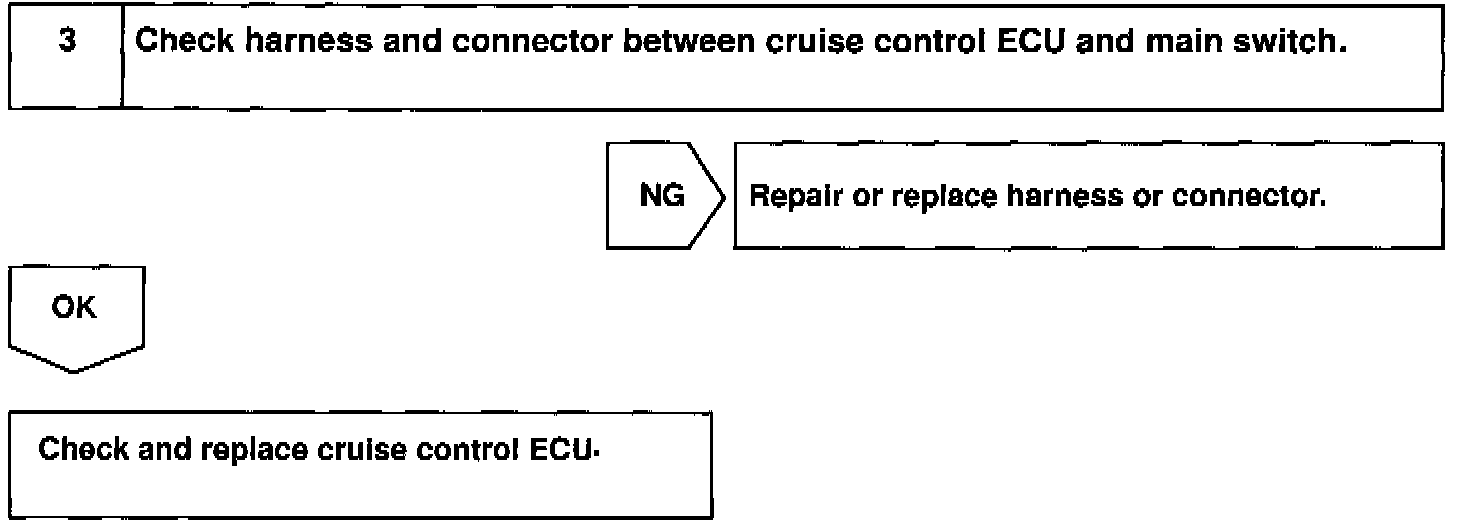

Step 3:

INSPECTION PROCEDURE
