Cruise Control Diagnostic Connector: Testing and Inspection

Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that outputs DTC.

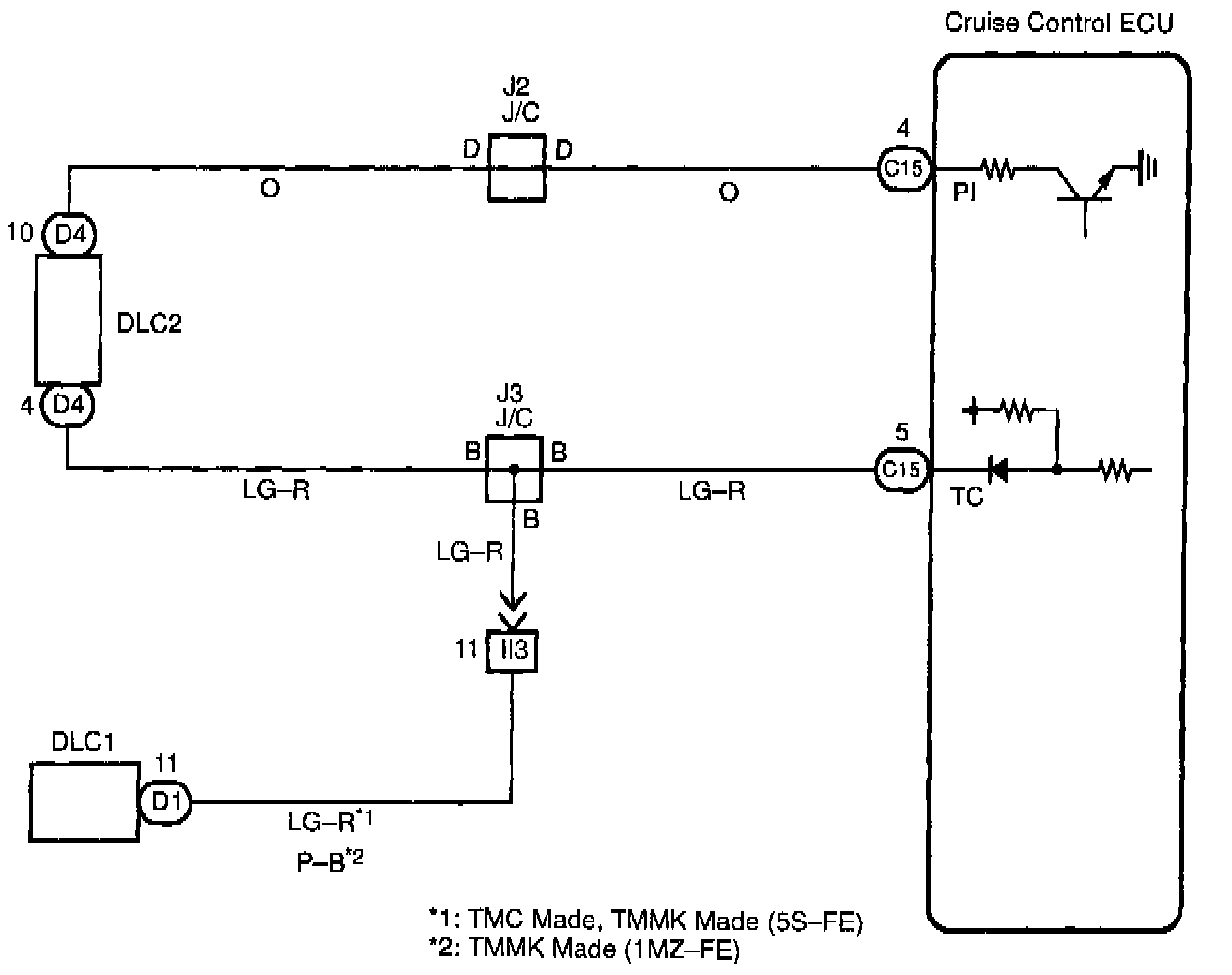

WIRING DIAGRAM

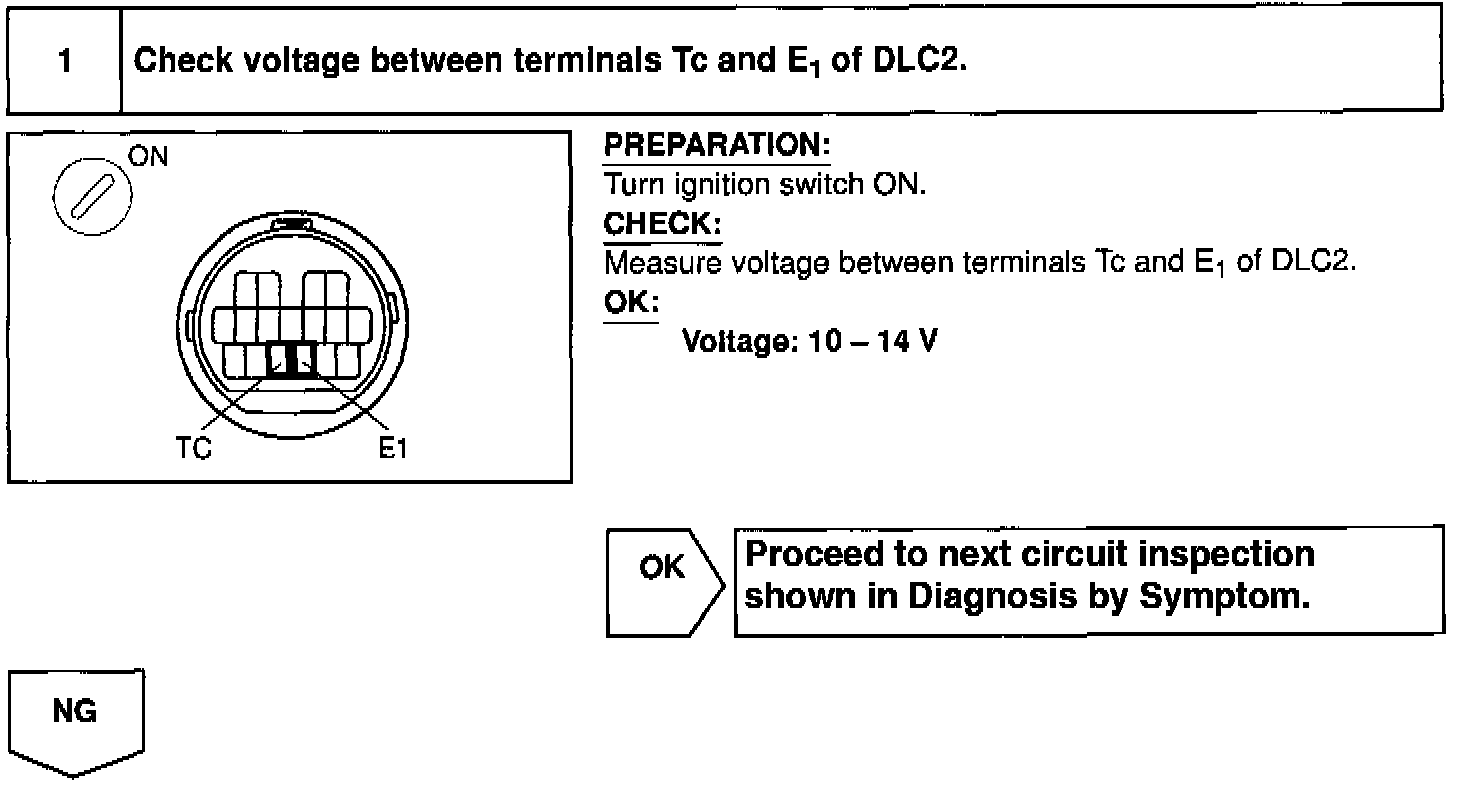

Step 1:

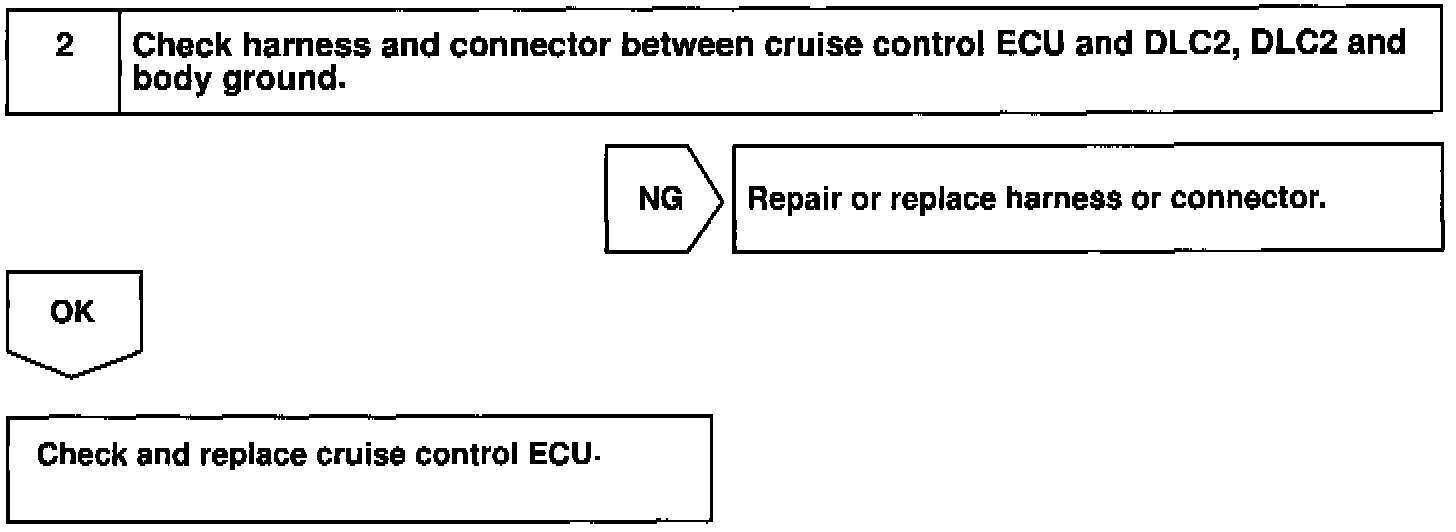

Step 2:

INSPECTION PROCEDURE
