Door Sensor/Switch (For Alarm): Testing and Inspection

Door Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.




WIRING DIAGRAM

Step 1:

Step 2:

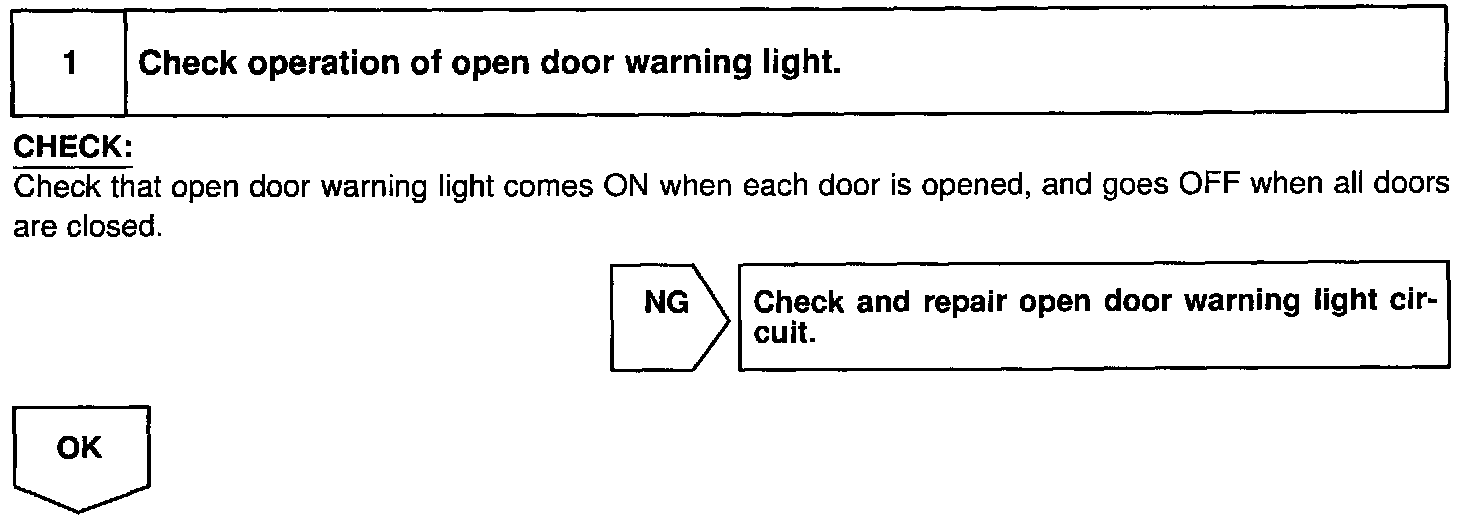

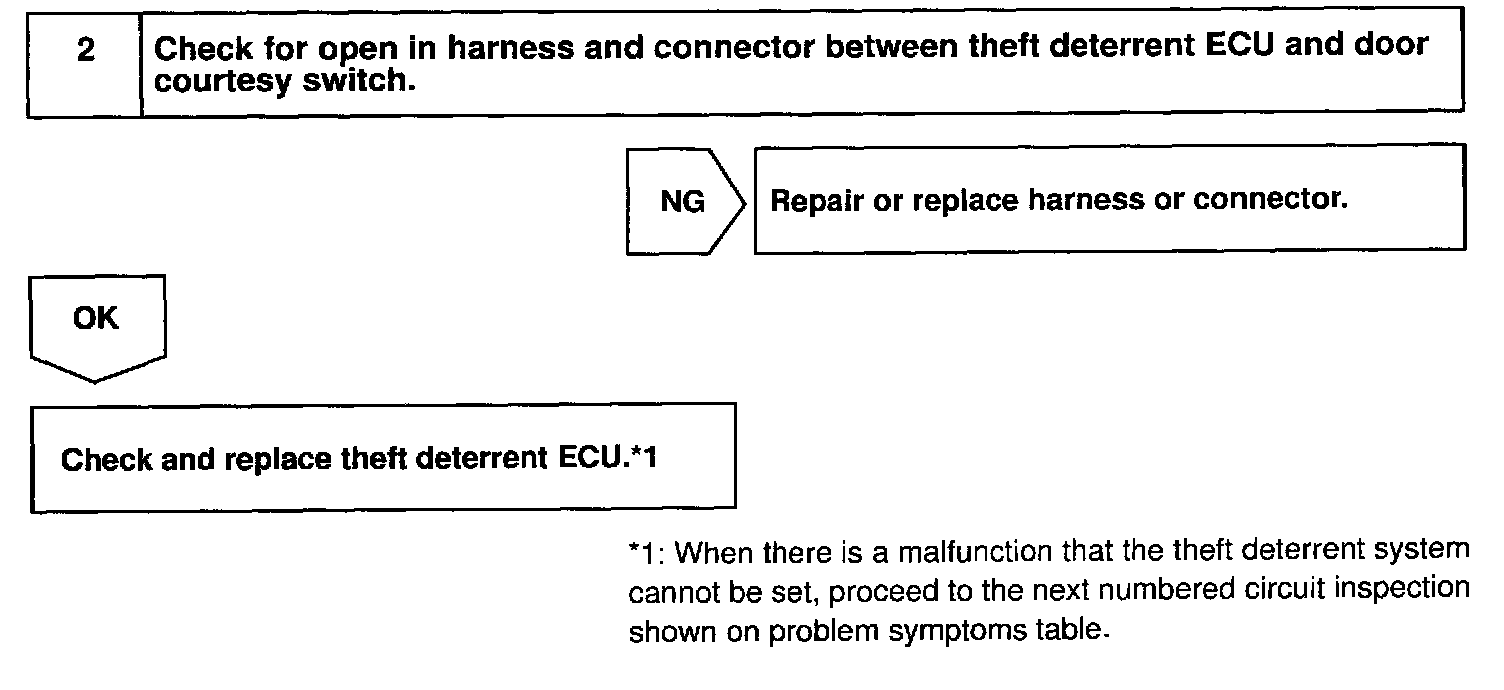

INSPECTION PROCEDURE
