Bearing Replacement

IF NECESSARY, REPLACE INPUT SHAFT BEARING

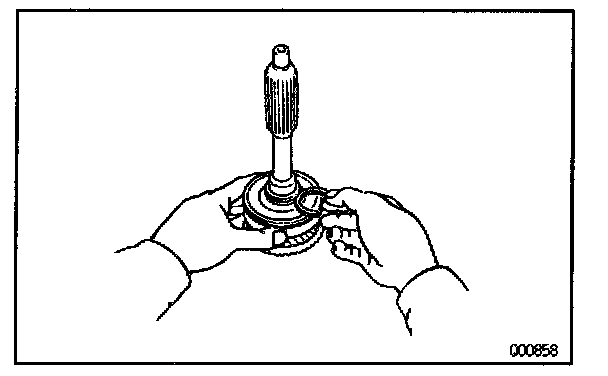

a. Using a snap ring expander, remove the snap ring.

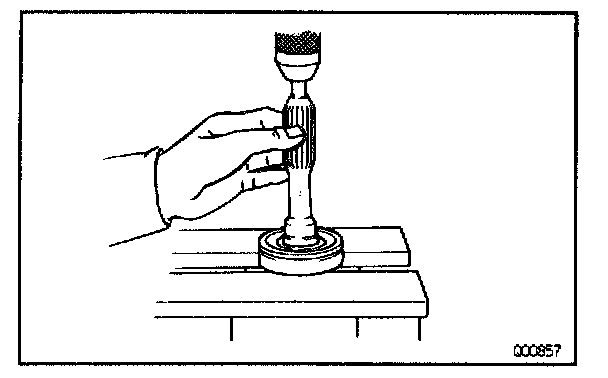

b. Using a press, remove the bearing.

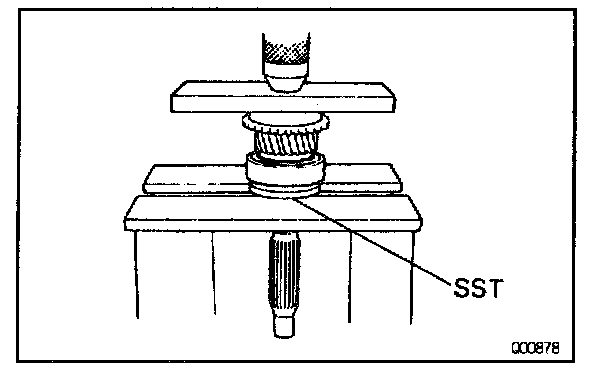

c. Using SST and a press, install a new bearing.
SST 09506-35010

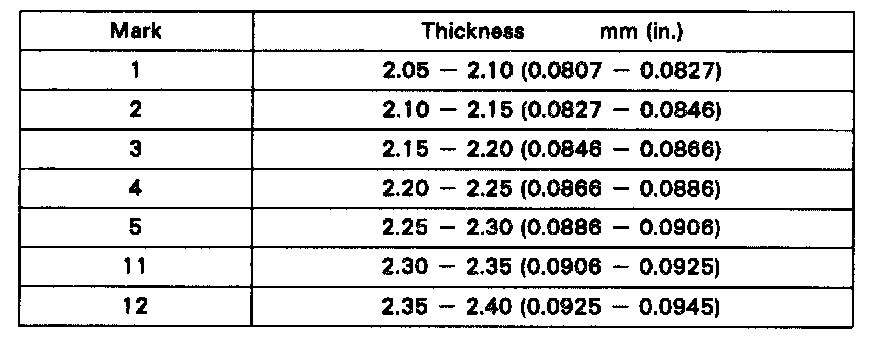

d. Select a snap ring that will allow minimum axial play.
e. Using a snap ring expander, install the snap ring.
