Service Specifications

VALVE BODY SPRING SPECIFICATIONS

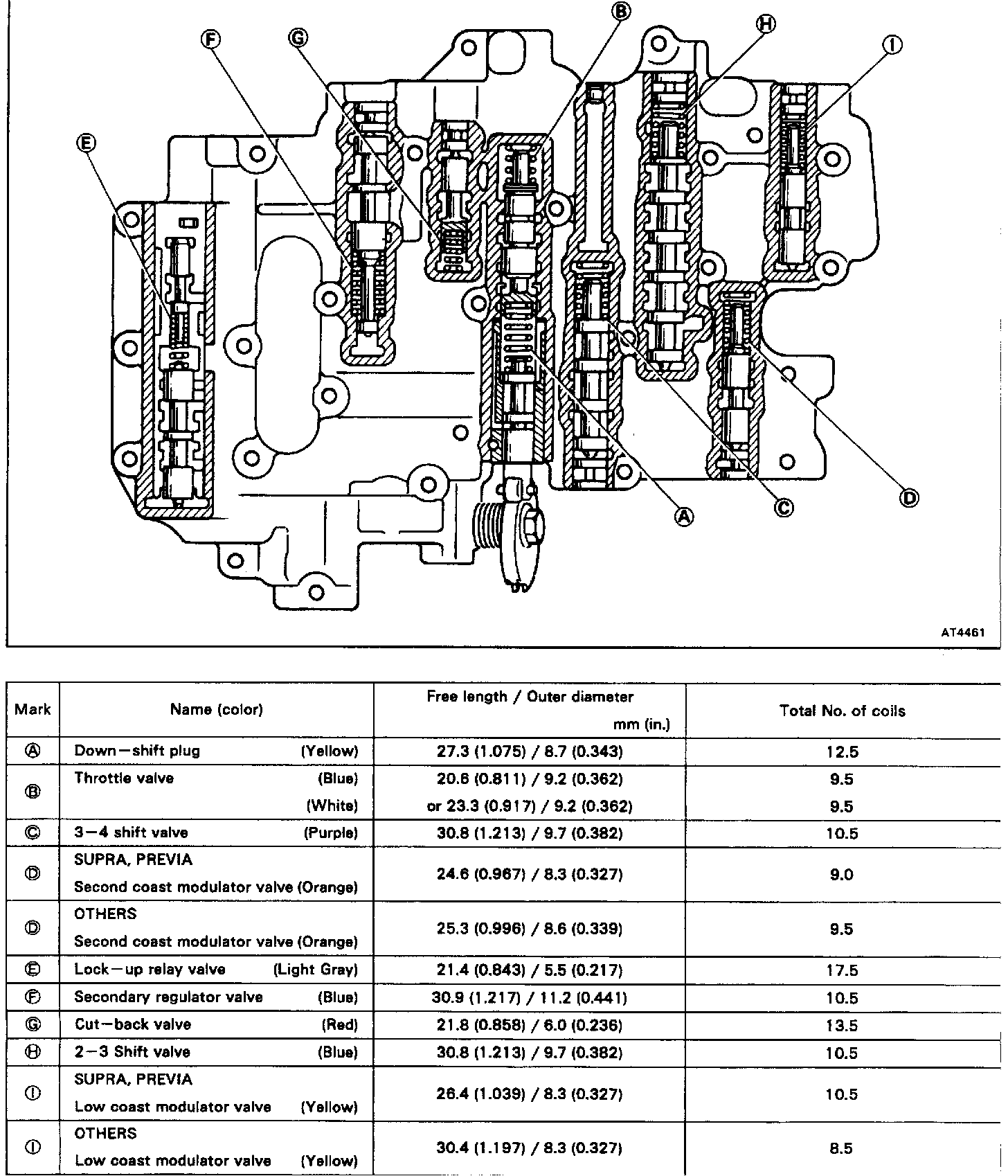

UPPER VALVE BODY

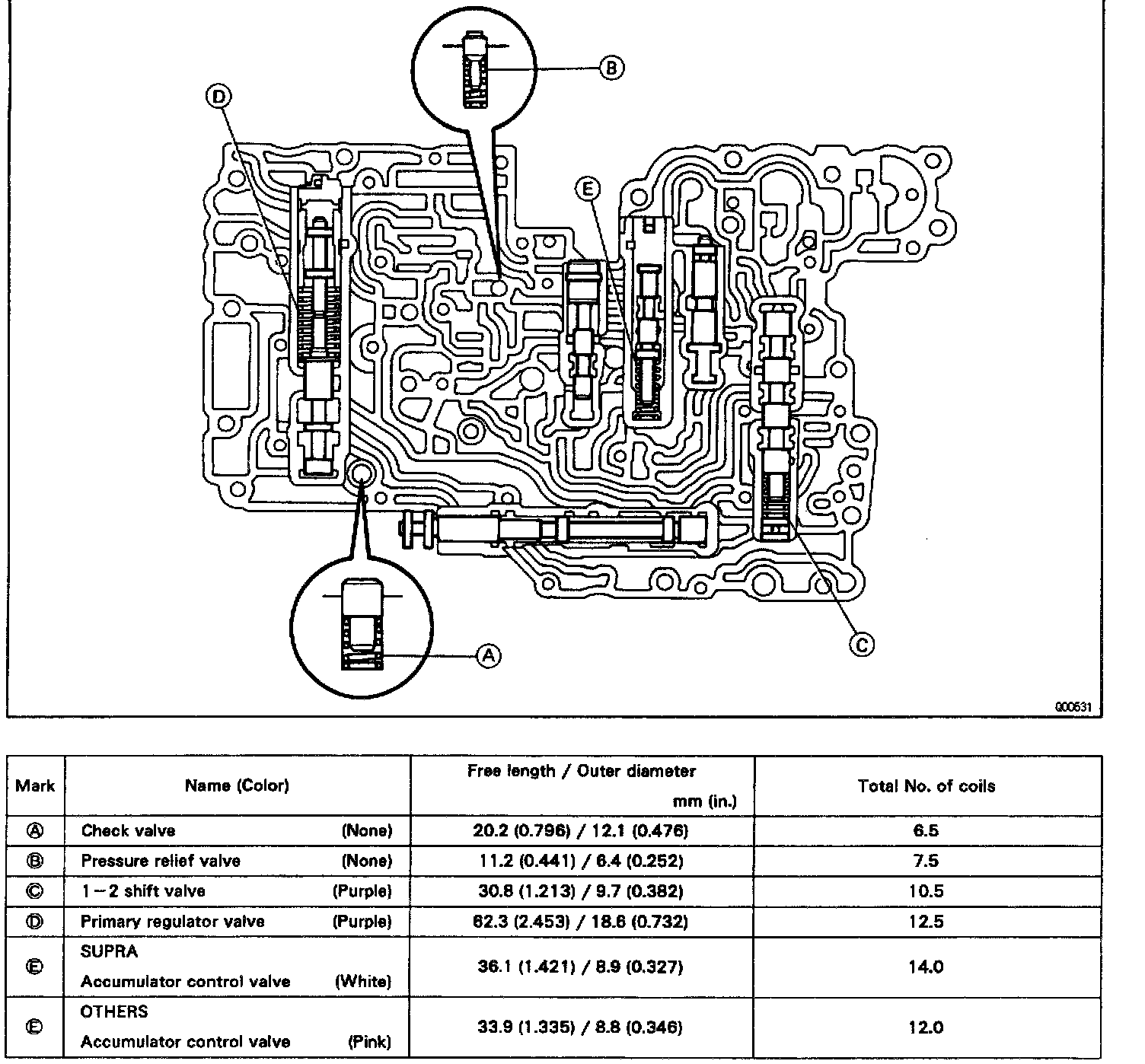

LOWER VALVE BODY





RETAINER SPECIFICATIONS





CHECK BALL DIAMETERS
