Disassembly and Assembly

Components:

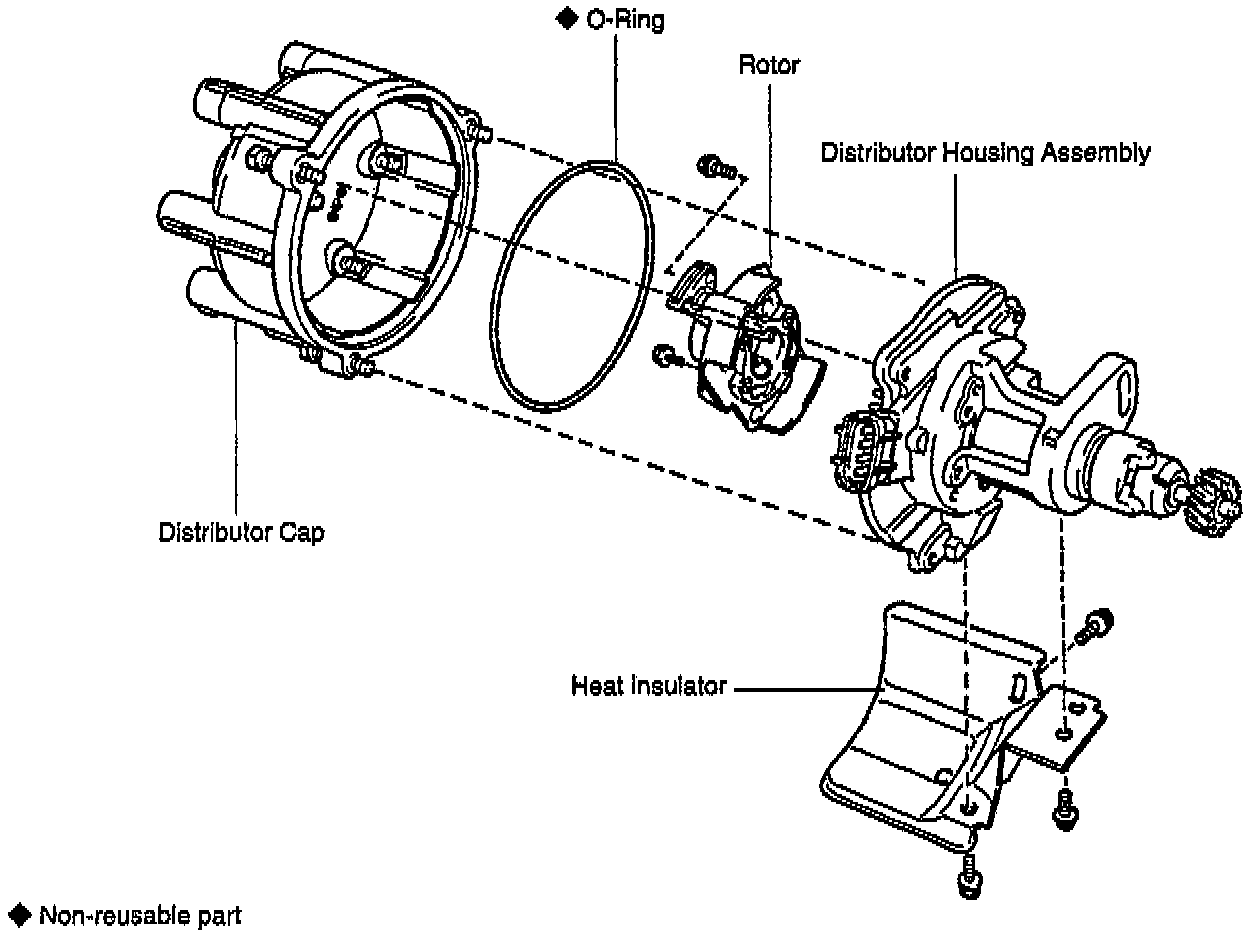

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

DISTRIBUTOR DISASSEMBLY

1. REMOVE HEAT INSULATOR
- Remove the 3 screws and heat insulator.
2. REMOVE DISTRIBUTOR CAP
- Loosen the 3 bolts, and remove the distributor cap and O-ring.

ASSEMBLY HINT: Use a new O-ring.

3. REMOVE ROTOR
- Remove the 2 screws and rotor.

Rotor Orientation:

ASSEMBLY HINT: Align the hollow of the signal rotor with the protrusion of the rotor.

DISTRIBUTOR ASSEMBLY

ASSEMBLY HINT: Assembly is in the reverse order of disassembly.
