Kick-down Switch Circuit

Kick-Down Switch Circuit

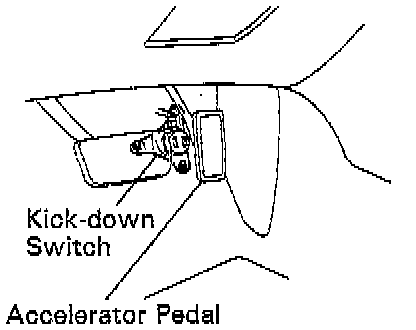

Kick Down Switch:

CIRCUIT DESCRIPTION
The kick-down switch is turned on when the accelerator pedal is depressed beyond the full throttle opening and sends signals to ECM.
When the kick-down switch is turned on, the ECM controls gear shifting according to the programmed shift diagrams.
If a short circuit develops in the kick-down switch, the ECM disregards the kick-down signals and controls shifting at the normal shift points.

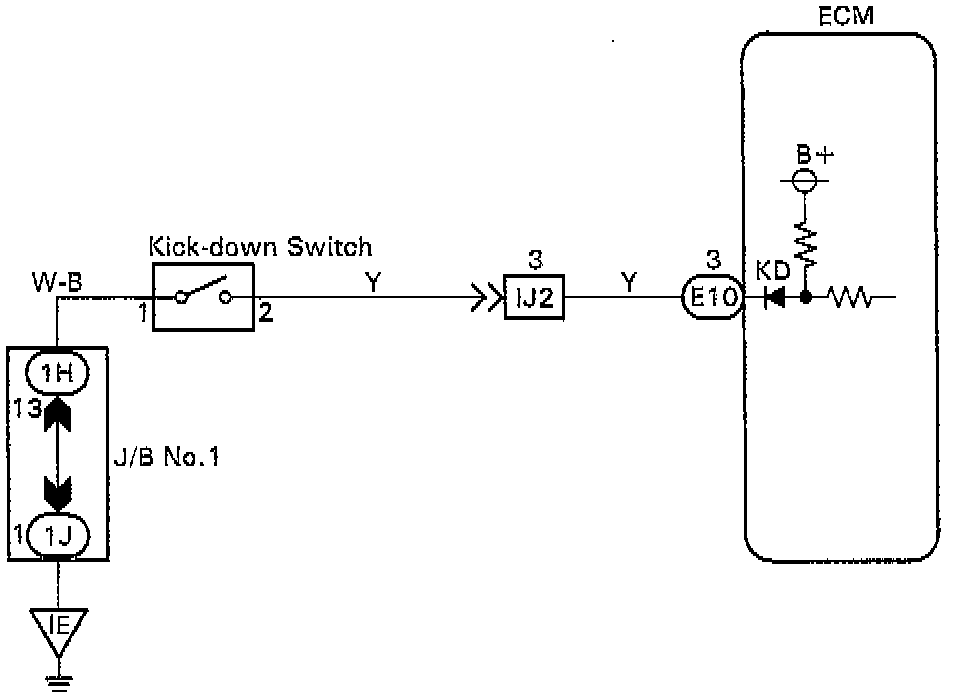

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

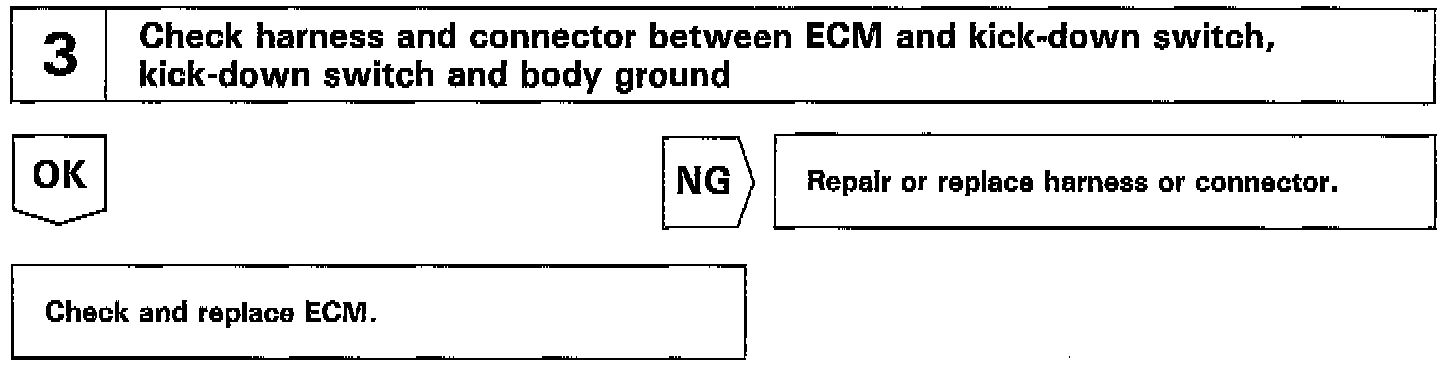

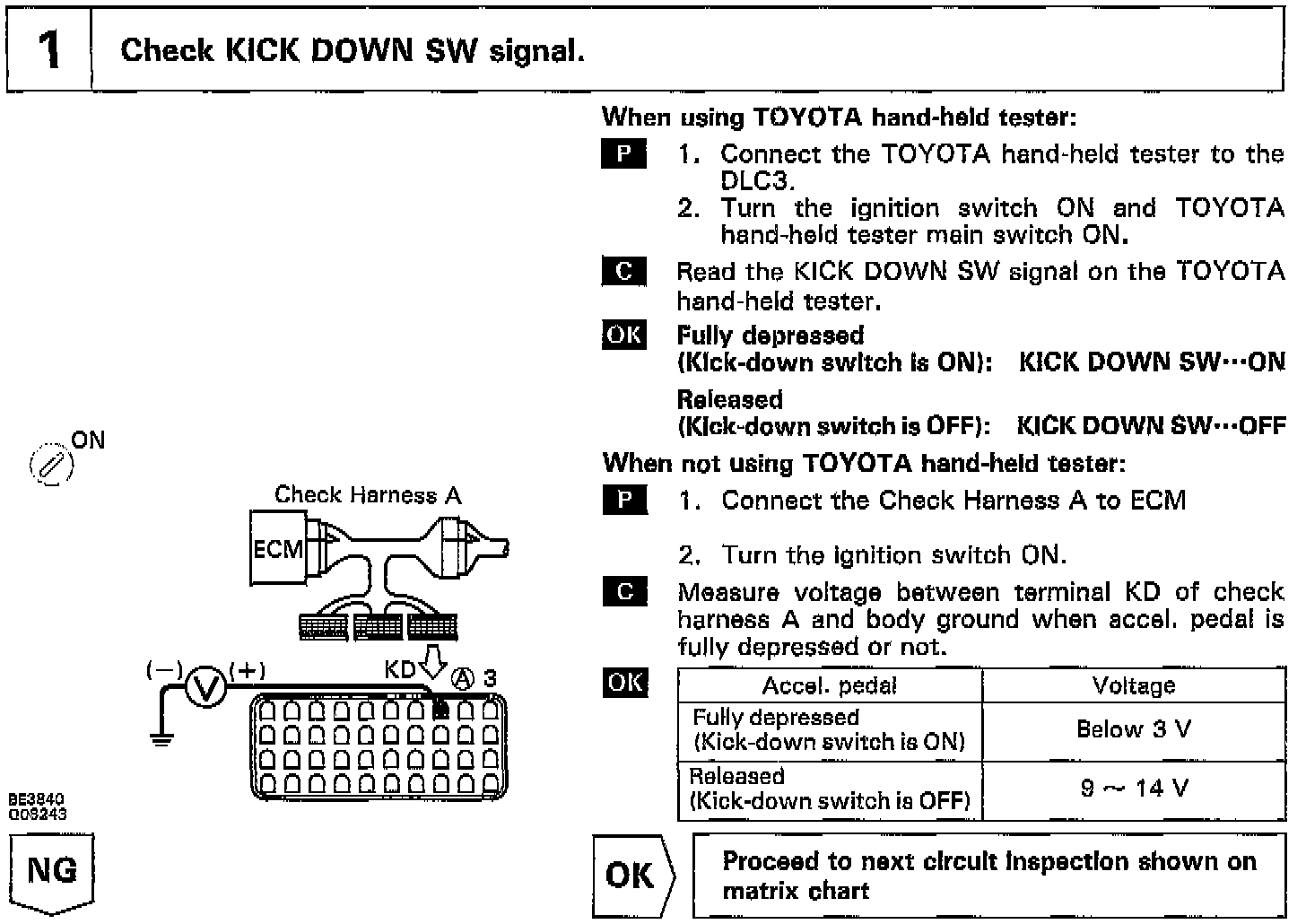

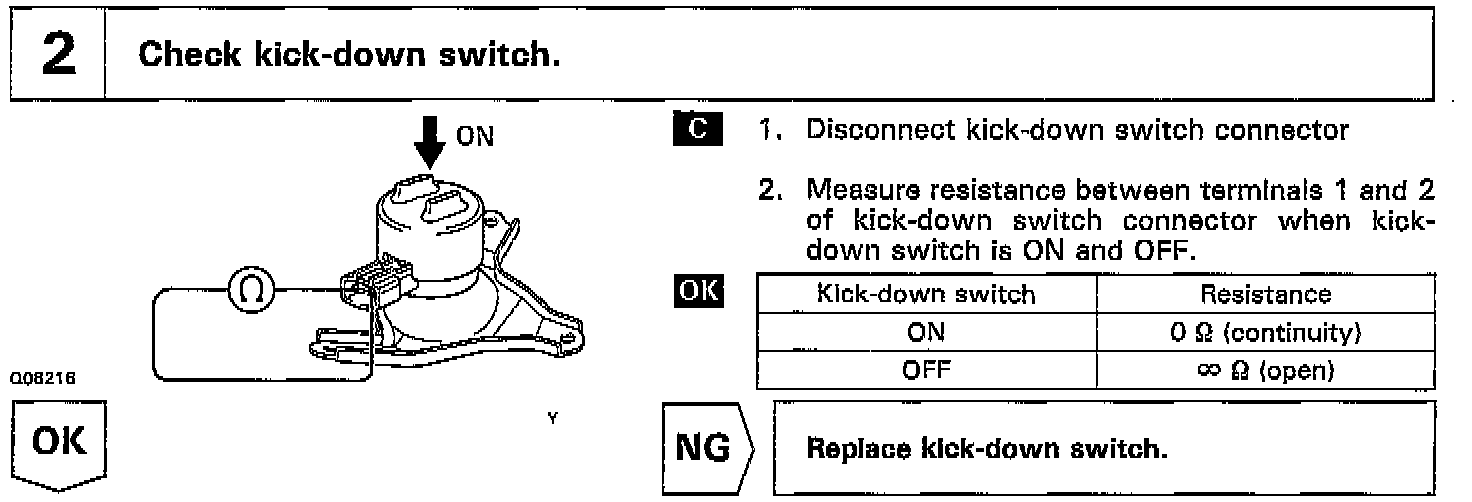

INSPECTION PROCEDURE
