Removal Procedures

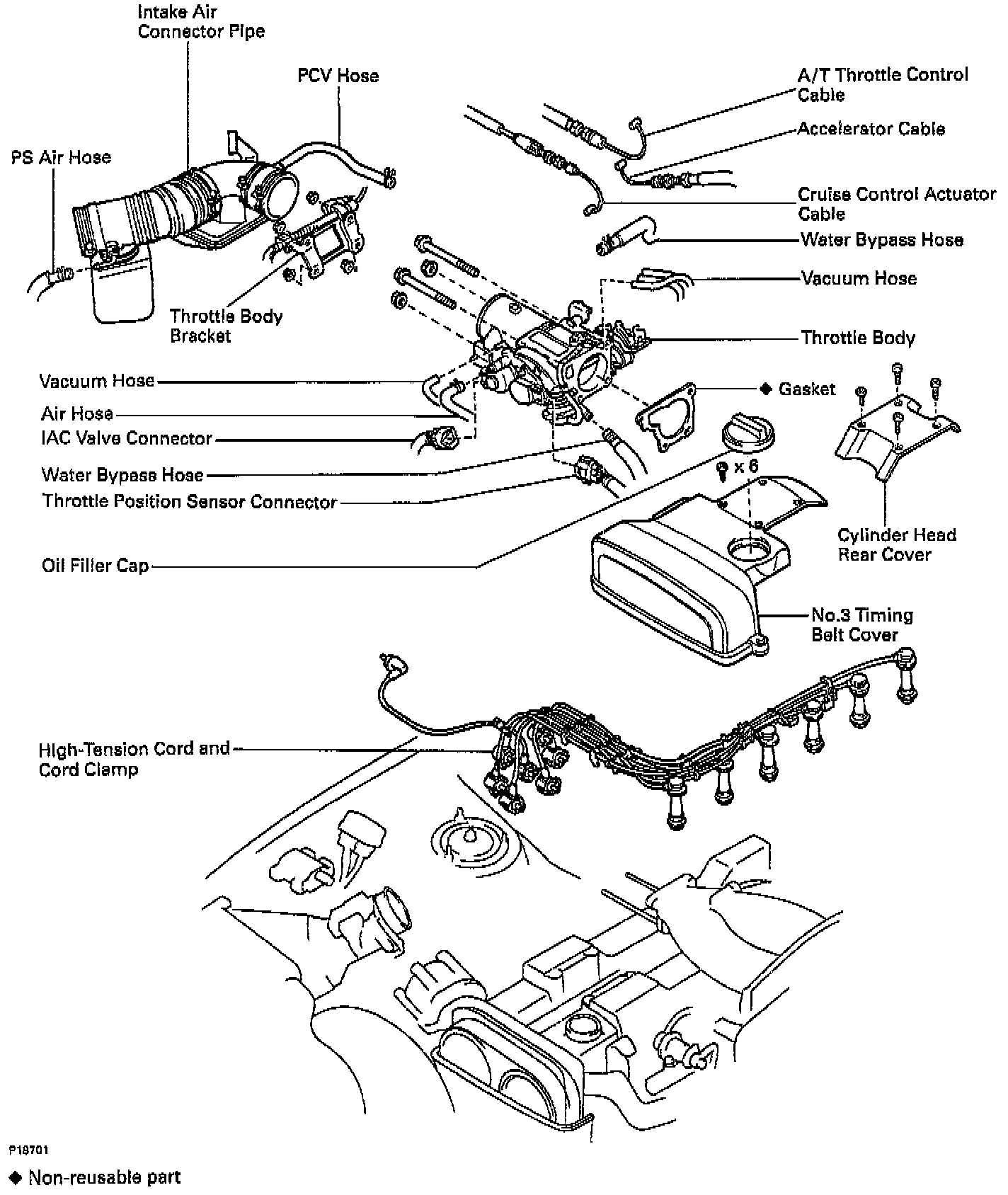

COMPONENTS FOR REMOVAL AND INSTALLATION

HIGH-TENSION CORDS AND CORD CLAMPS REMOVAL
1. REMOVE THROTTLE BODY
2. REMOVE NO.3 TIMING BELT COVER
3. REMOVE CYLINDER HEAD REAR COVER
4. REMOVE HIGH-TENSION CORDS AND CORD CLAMPS ASSEMBLY

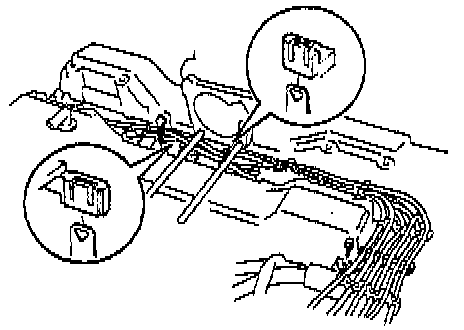

- Disconnect the 2 high-tension cord clamps from the claws of the No.3 cylinder head cover.
- Remove the bolt holding the high-tension cord clamp to No.2 cylinder head cover.








- Disconnect the high-tension cords from the distributor and ignition coil.

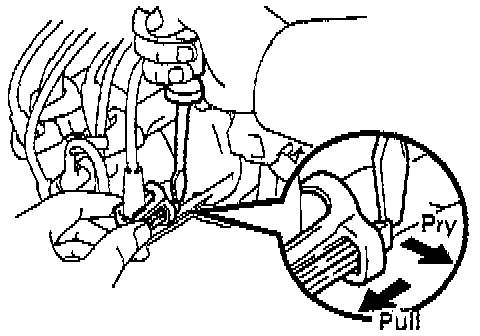

- Using a screwdriver, lift up the lock claw and disconnect the holder from the distributor (ignition coil).

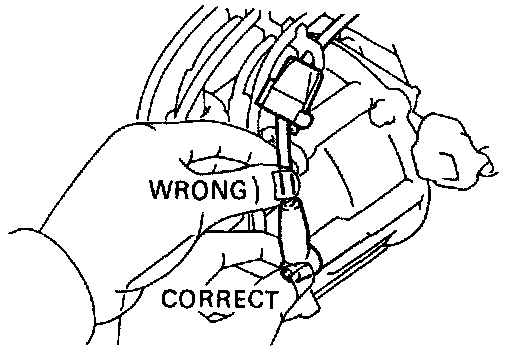

- Disconnect the high-tension cord at the grommet.
- Do not pull on the cord.

NOTICE: Pulling on or bending the cords may damage the conductor inside.

- Disconnect the high-tension cords from the spark plugs.





- Disconnect the high-tension cords at the rubber boot. Do not pull on the cords.

NOTICE: Pulling on or bending the cords may damage the conductor inside.

- Remove the 7 high-tension cords and 8 cord clamps assembly.

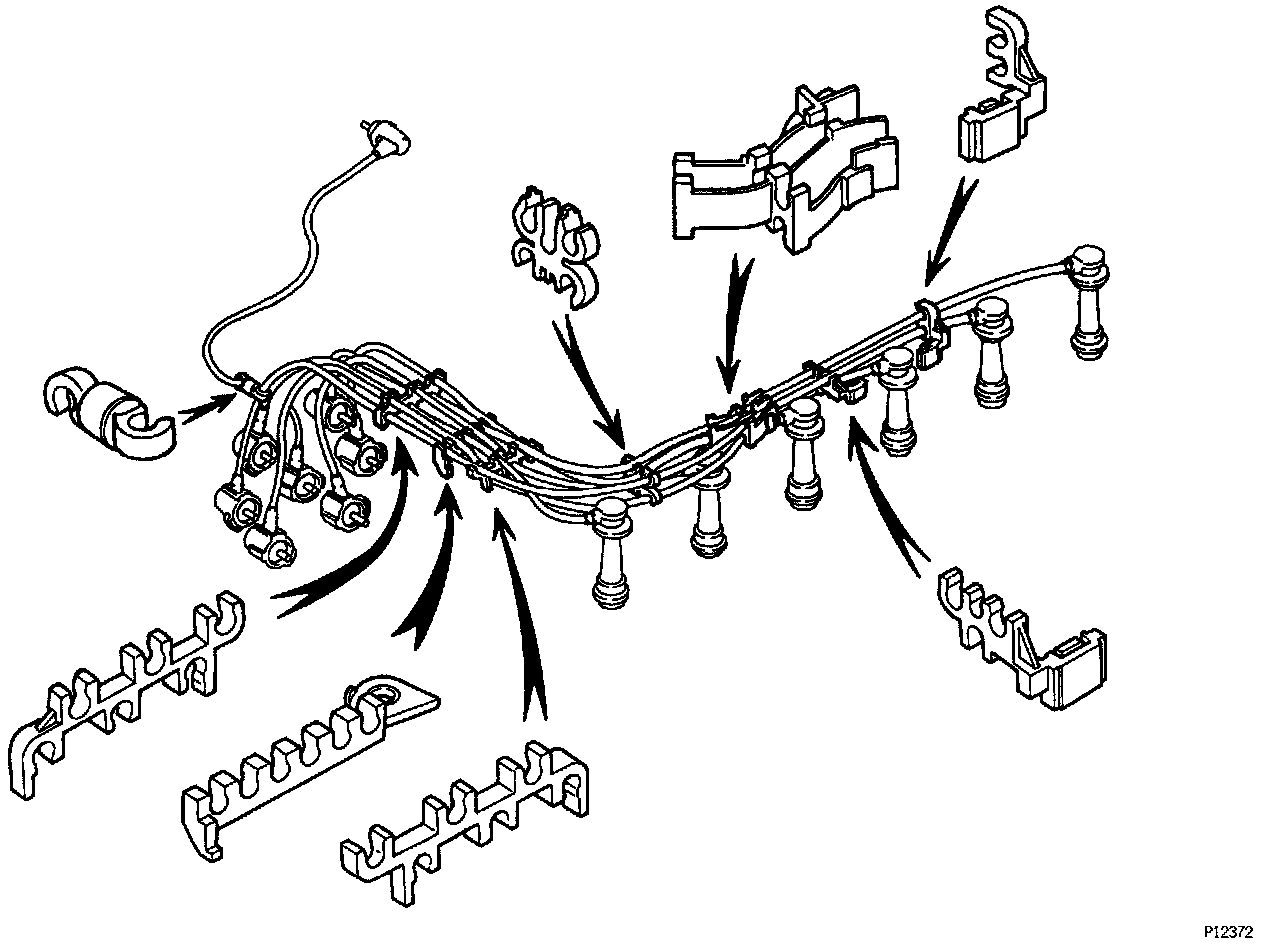

5. REMOVE CORD CLAMPS FROM HIGH-TENSION CORDS
