Installation Procedures

COMPONENTS FOR REMOVAL AND INSTALLATION

HIGH-TENSION CORDS AND CORD CLAMPS INSTALLATION

1. INSTALL HIGH-TENSION CORDS
- Connect the high-tension cords to the spark plugs.

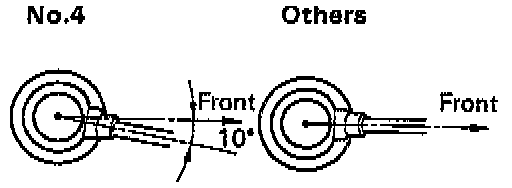

- Face the cord of the high-tension cord as shown in the illustration.

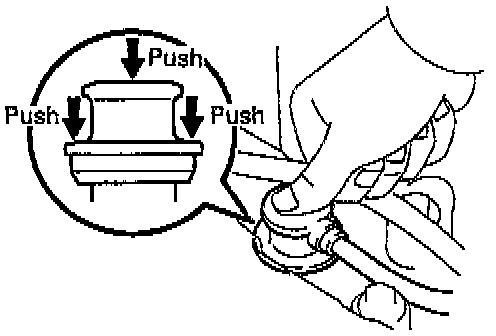

- Fit the high-tension cord by pushing the center and its outer ring.
- Connect the high-tension cords to the distributor and ignition coil.
- Align the spline of the distributor (ignition coil) with the spline groove of the holder.
- Push in the holder together with the grommet until the claw of the holder locks securely.

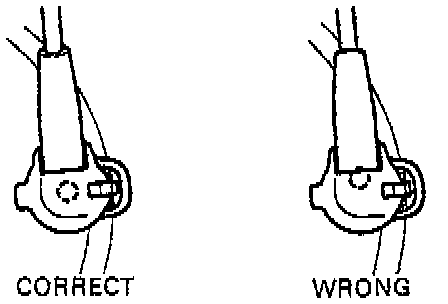

NOTICE: Check that holder is correctly installed to the grommet and distributor (ignition coil) as shown in the illustration.

- Check that the lock claw of the holder is engaged by lightly pulling the holder.

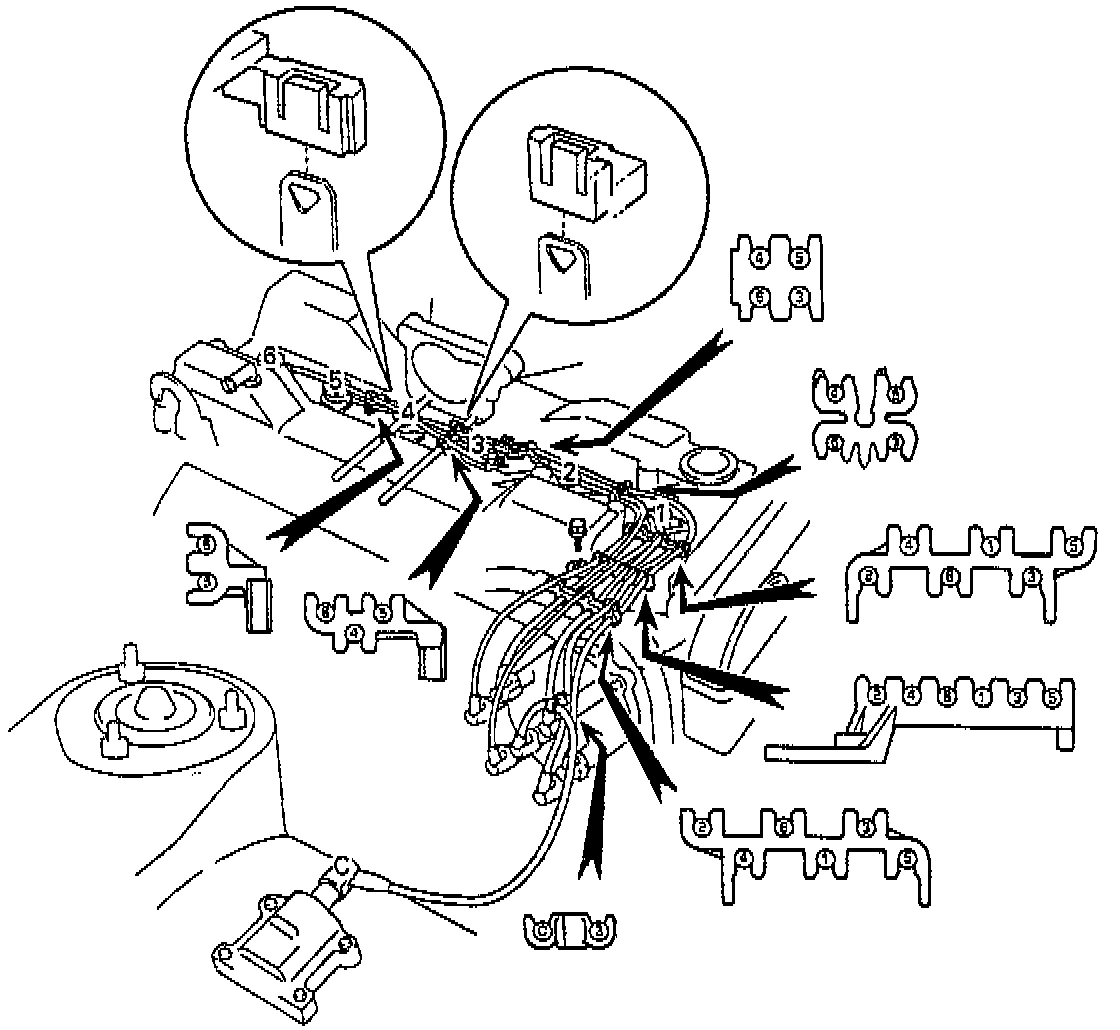

- Secure the high-tension cords with the 8 cord clamps as shown in the illustration.
2. INSTALL CYLINDER HEAD REAR COVER
3. INSTALL NO.3 TIMING BELT COVER
4. INSTALL THROTTLE BODY
5. FILL WITH ENGINE COOLANT
