Component Inspection

INTAKE AIR CONTROL VALVE INSPECTION

INSPECT INTAKE AIR CONTROL VALVE

Vacuum Applied:

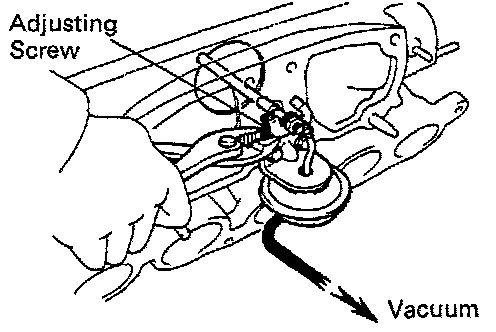

(a) With 533 kPa (400 mmHg, 15.75 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.

Adjustment:

- If operation is not as specified, turn the adjusting screw.
(b) 1 minute after applying the vacuum in (a), check that the actuator rod does not return.
