Evaporative Emissions System: Testing and Inspection

FUEL VAPOR LINES, FUEL TANK AND TANK CAP INSPECTION

Line Connections:

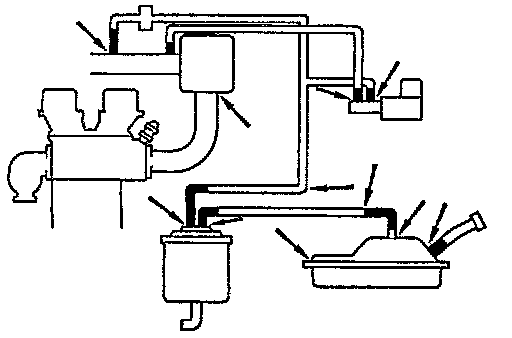

1. Visually inspect lines and connections.
- Look for loose connections, sharp bends or damage.
2. Visually inspect fuel tank.
- Look for deformation, cracks or fuel leakage.

Fuel Tank Cap:

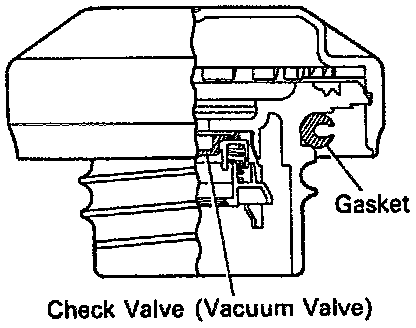

3. Visually inspect fuel tank cap.
- Check if the cap and/or gasket are deformed or damaged.
- If necessary, repair or replace the cap.
