Throttle Position Sensor: Adjustments

THROTTLE POSITION SENSOR ADJUSTMENT

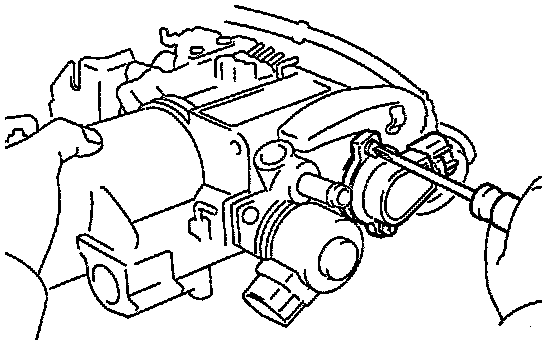

Attaching Screws:

- Loosen the 2 set screws of the sensor.

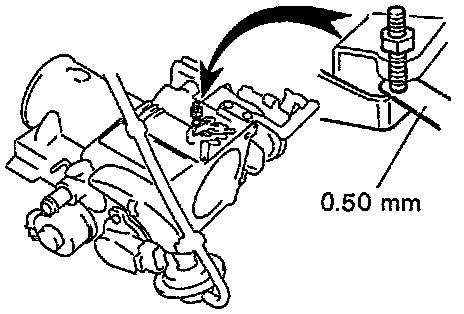

Feeler Gauge:

- Insert a 0.50 mm (0.020 in.) feeler gauge between the throttle stop screw and stop lever.

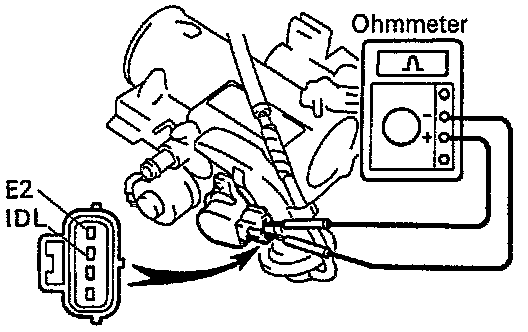

Ohmmeter Connection:

- Connect the tester probe of an ohmmeter to the terminals IDL and E2 of the sensor.

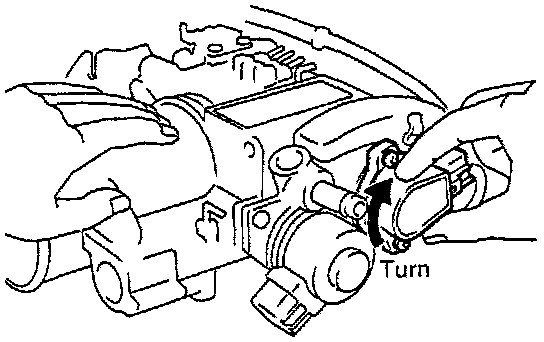

Sensor Adjustment:

- Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.

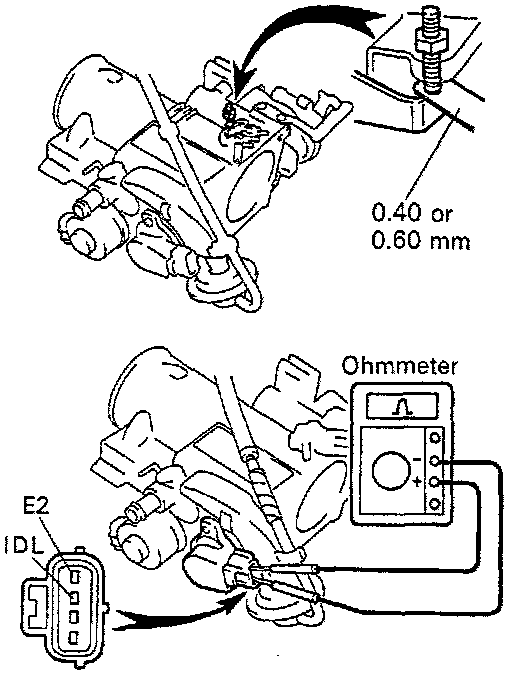

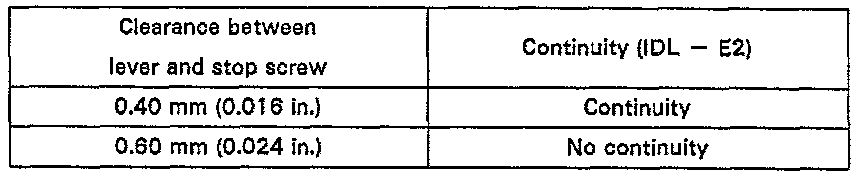

Adjustment Recheck:

Reference:

- Recheck the continuity between terminals IDL and E2.
