Symptom Related Diagnostic Procedures

MATRIX CHART OF PROBLEM SYMPTOMS

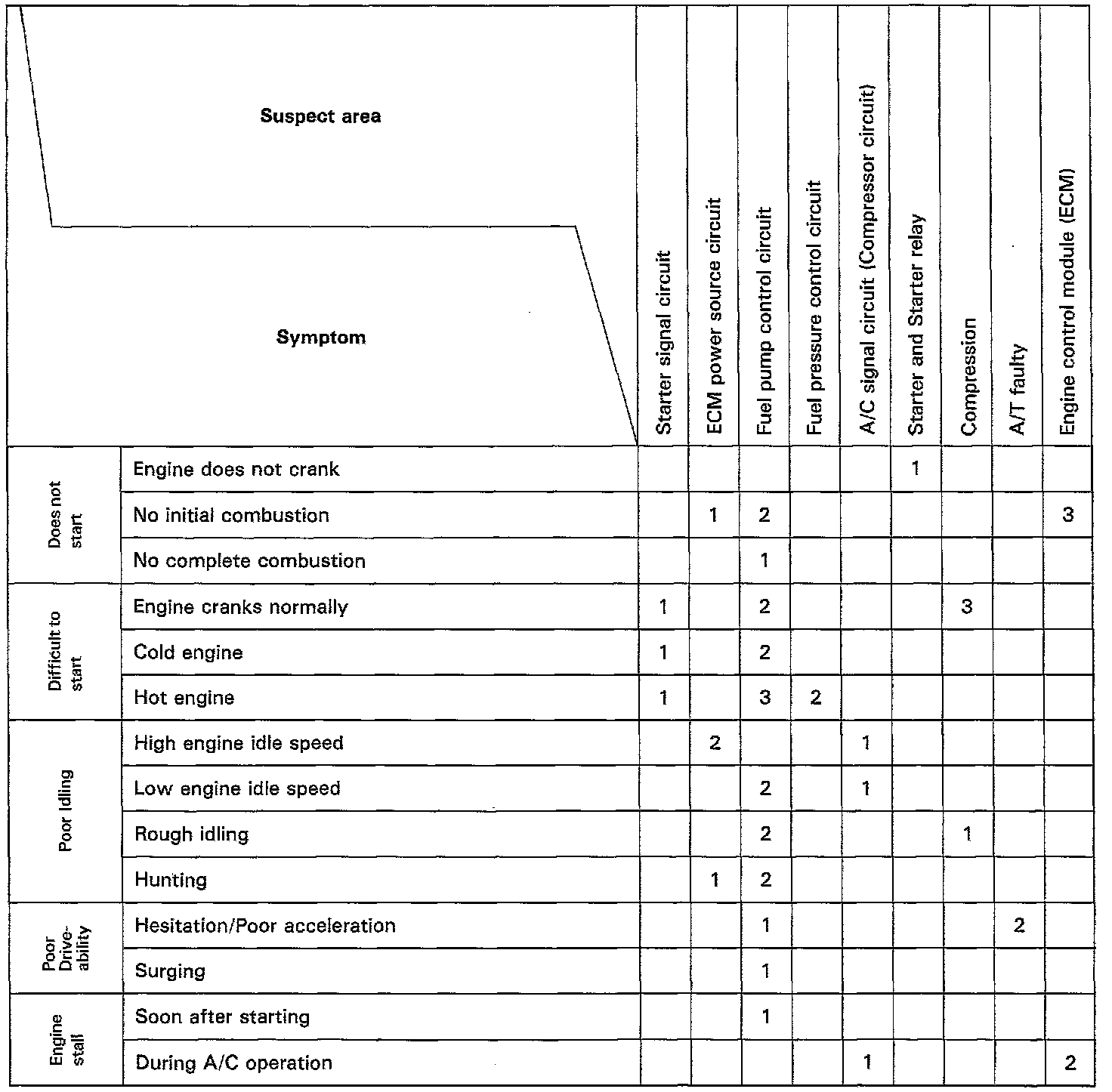

Matrix Chart:

When the malfunction code is not confirmed in the DTC check and the problem still can not be confirmed in the basic inspection, then proceed to this step and perform troubleshooting according to the numbered order given in the table above.
