Initial Inspection (Basic Inspection)

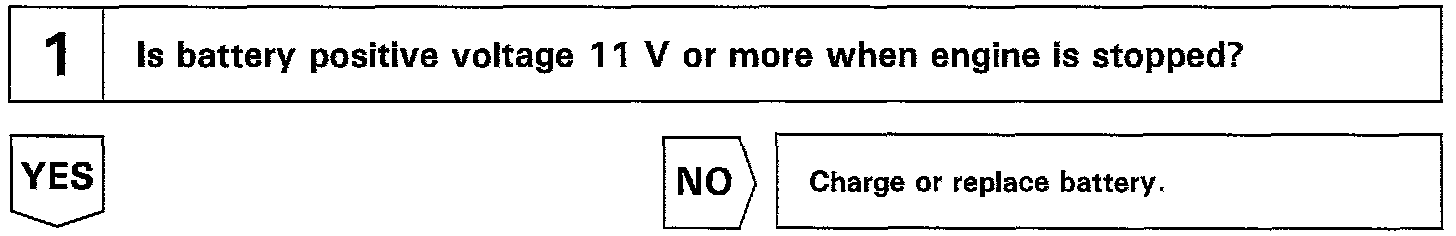

Checking The Basics Step 1.:

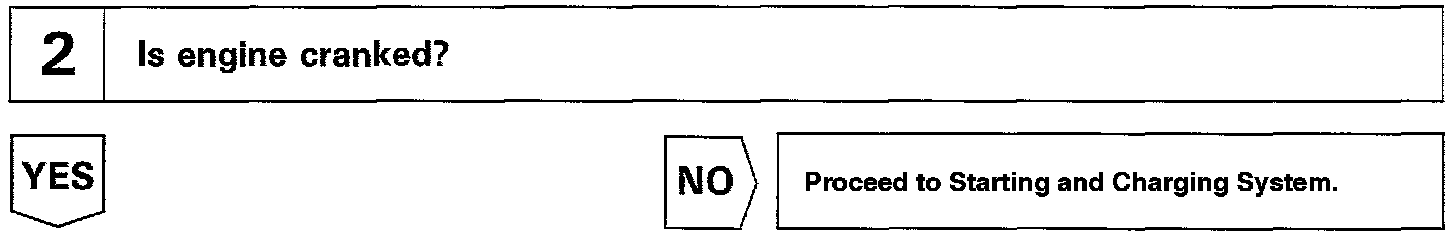

Checking The Basics Step 2.:

Checking The Basics Step 3.:

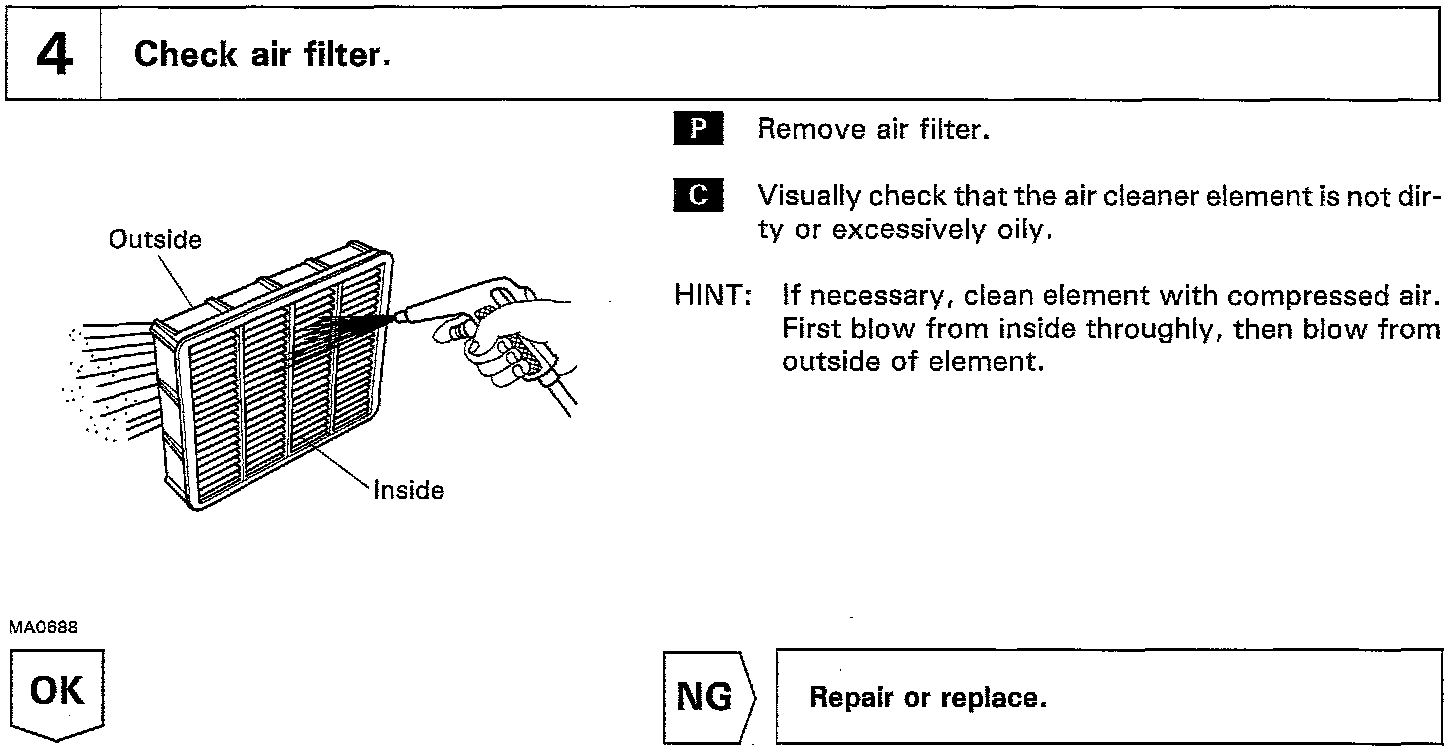

Checking The Basics Part 4.:

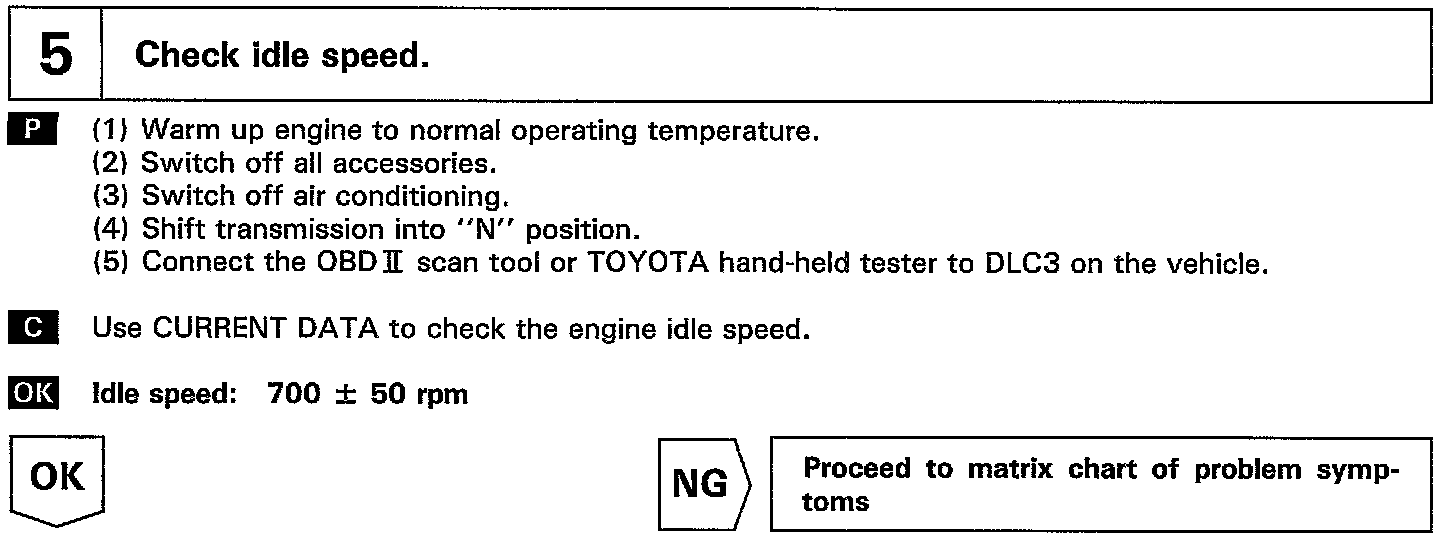

Checking The Basics Step 5.:

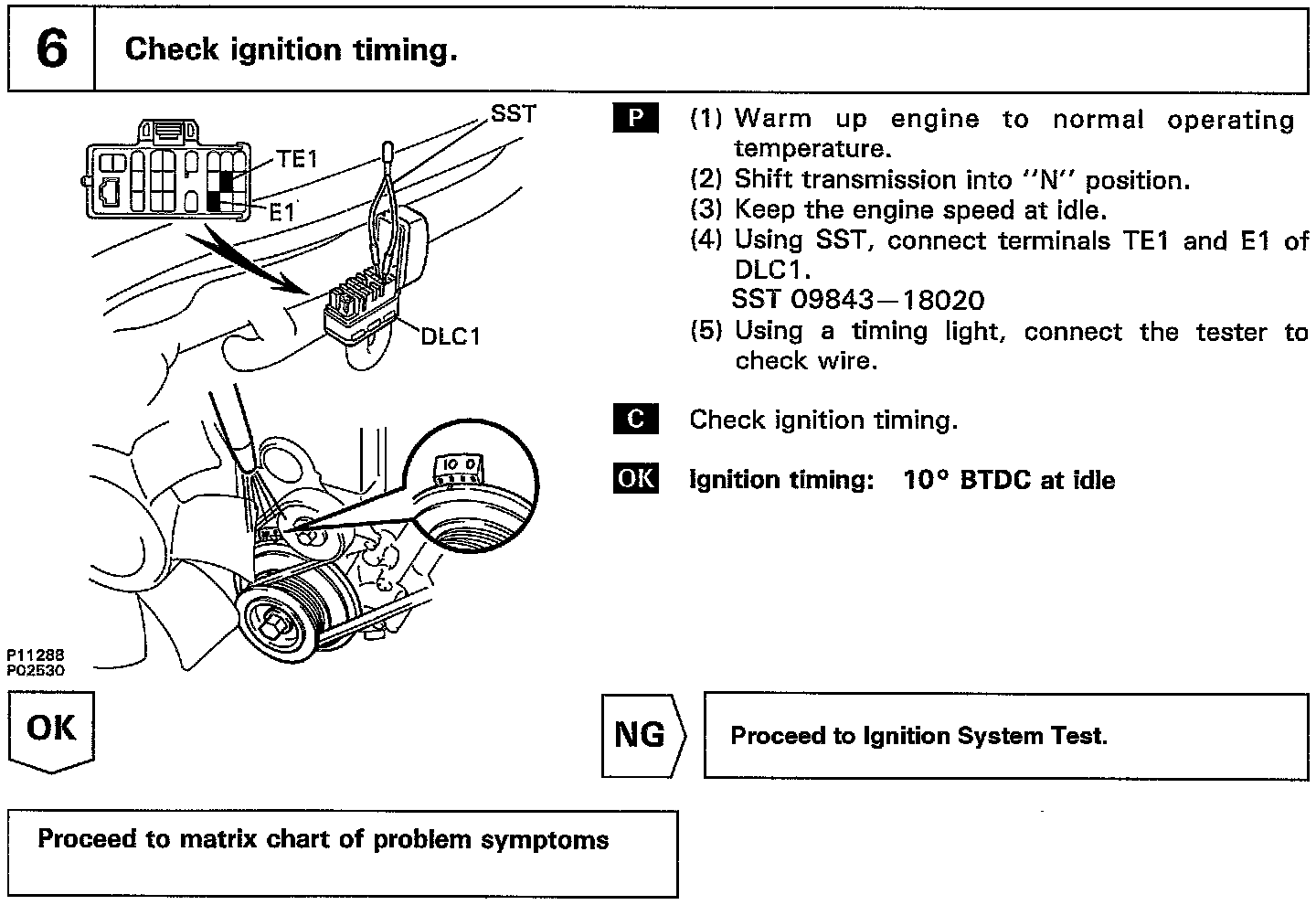

Checking The Basics Part 6.:

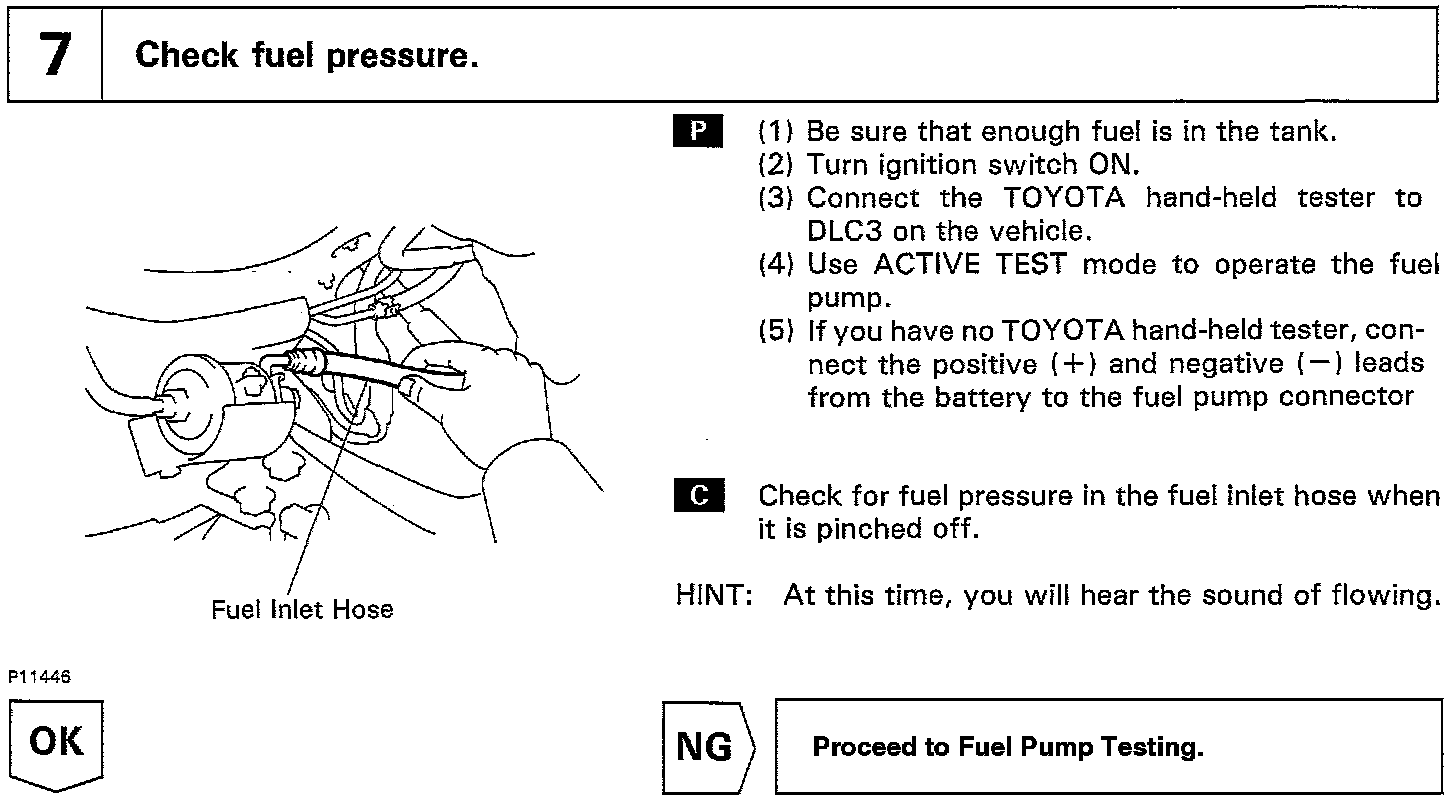

Checking The Basics Step 7.:

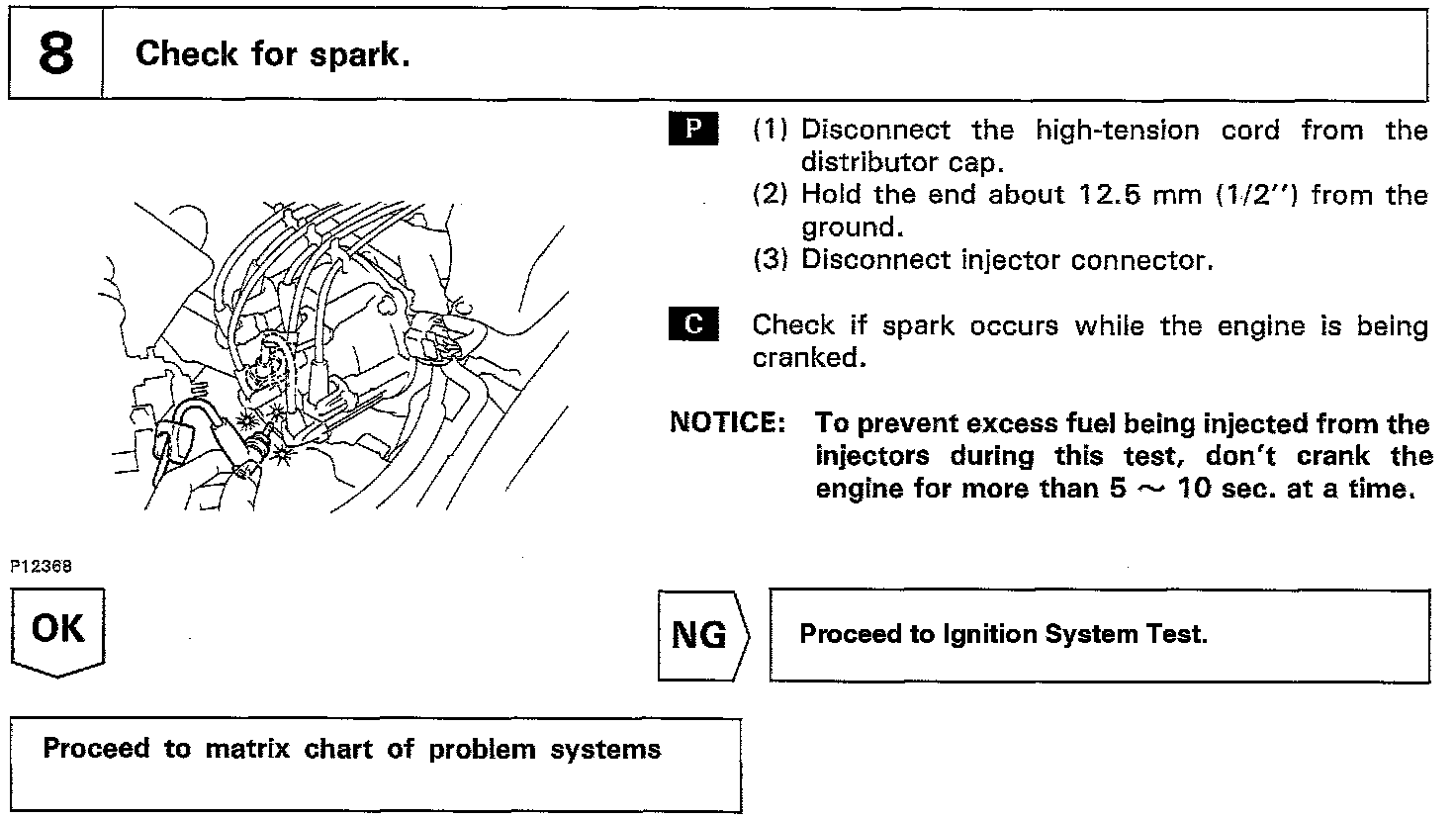

Checking The Basics Step 8.:

When the malfunction code is not confirmed in the DTC check, troubleshooting should be performed in the order for all possible circuits to be considered as the causes of the problems.
In many cases, by carrying out the basic engine check shown in the above flow charts, the location causing the problem can be found quickly and efficiently. Therefore, use of this check is essential in engine troubleshooting.
