Transmission Position Sensor/Switch: Service and Repair

PARK/NEUTRAL POSITION SWITCH REPLACEMENT

1. REMOVE FRONT EXHAUST PIPE

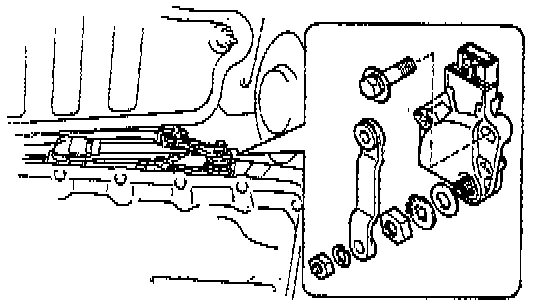

Components:

2. REMOVE PARK/NEUTRAL POSITION SWITCH
- Disconnect the connector.
- Remove the control shaft lever.
- Pry off the lock washer and remove the nut.
- Remove the bolt and park/neutral position switch.
3. INSTALL PARK/NEUTRAL POSITION SWITCH
- Install the park/neutral position switch and bolt.

Torque: 13 N.m (130 Kgf.cm, 9 ft.lbf)

- Install a new lock plate and the nut.

Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)

- Stake the nut with the lock plate.
- Install the control shaft lever.

Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

- Adjust the park/neutral position switch.
- Connect the connector.
4. INSTALL FRONT EXHAUST PIPE
