Idle Speed/Throttle Actuator - Electronic: Service and Repair

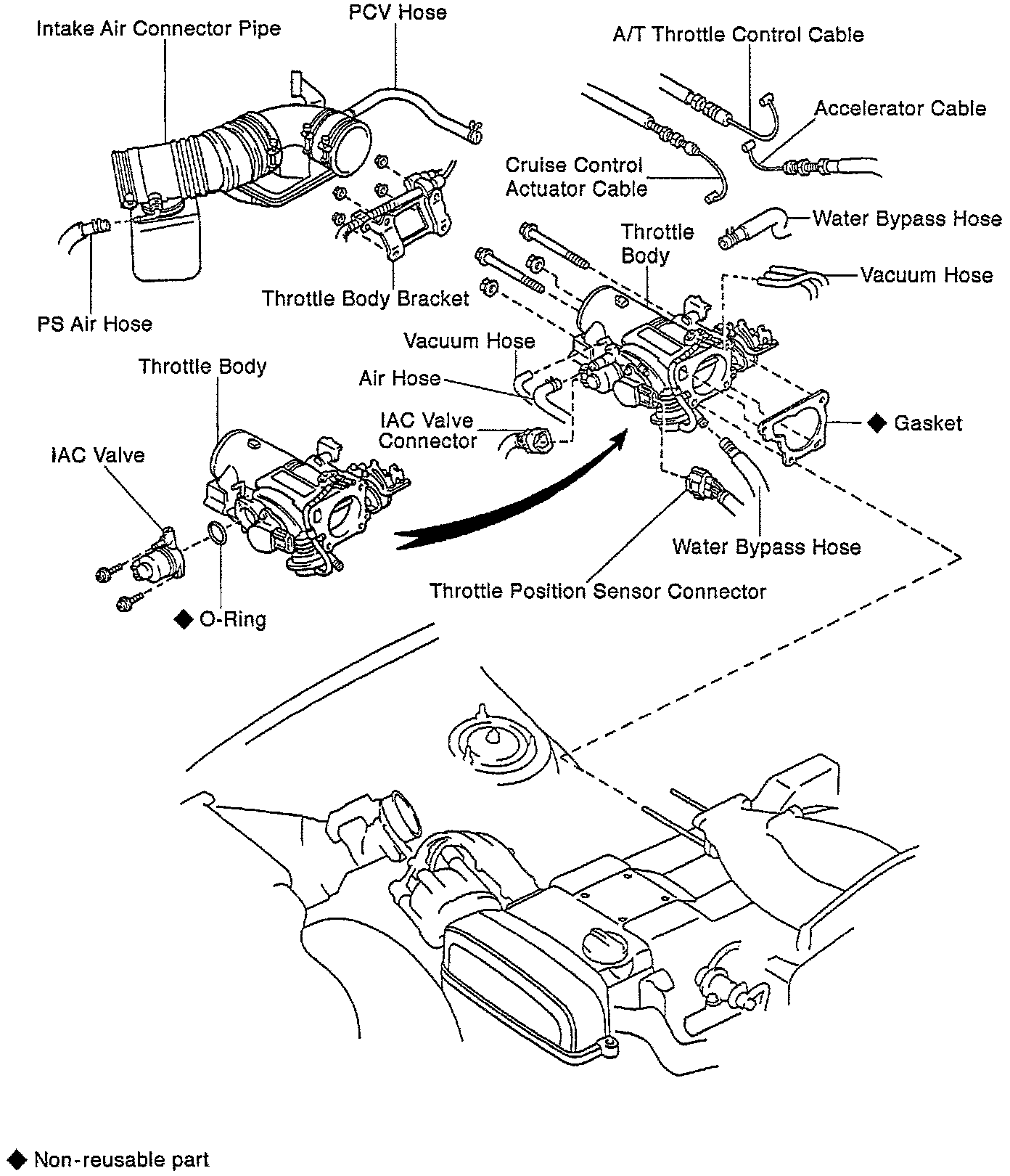

Components:

COMPONENTS FOR REMOVAL AND INSTALLATION

IAC VALVE REMOVAL
1. Remove throttle body.
2. Remove IAC valve from throttle body.

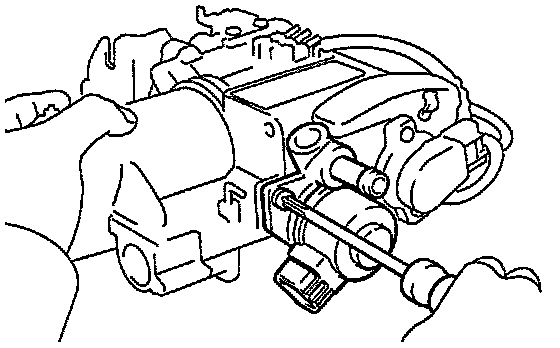

IAC Removal:

- Remove the 2 screws, AC valve and O-ring.

IAC VALVE INSTALLATION
1. Install IAC valve to throttle body.

IAC O-Ring:

- Install a new O-ring on the throttle body.
- Install the IAC valve with the 2 screws.
2. Install throttle body.
