Home
>>
Toyota
>>
1996
>>
Supra L6-183 2997cc 3.0L DOHC (2JZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transmission and Drivetrain
>>
System Diagram
>>
Rear Axle
Rear Axle

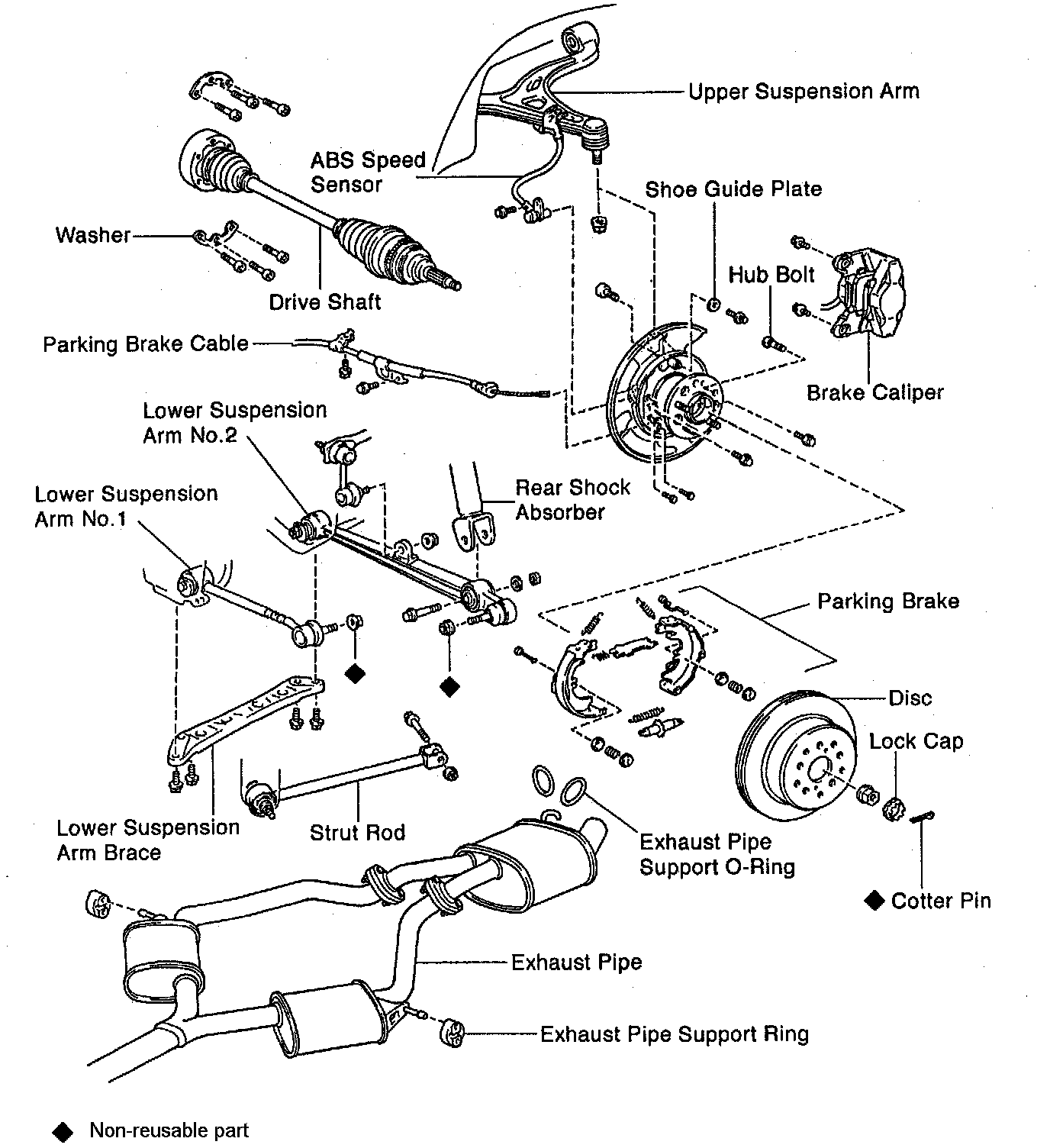

Rear Axle / Hub, Shocks, Suspension Arms:

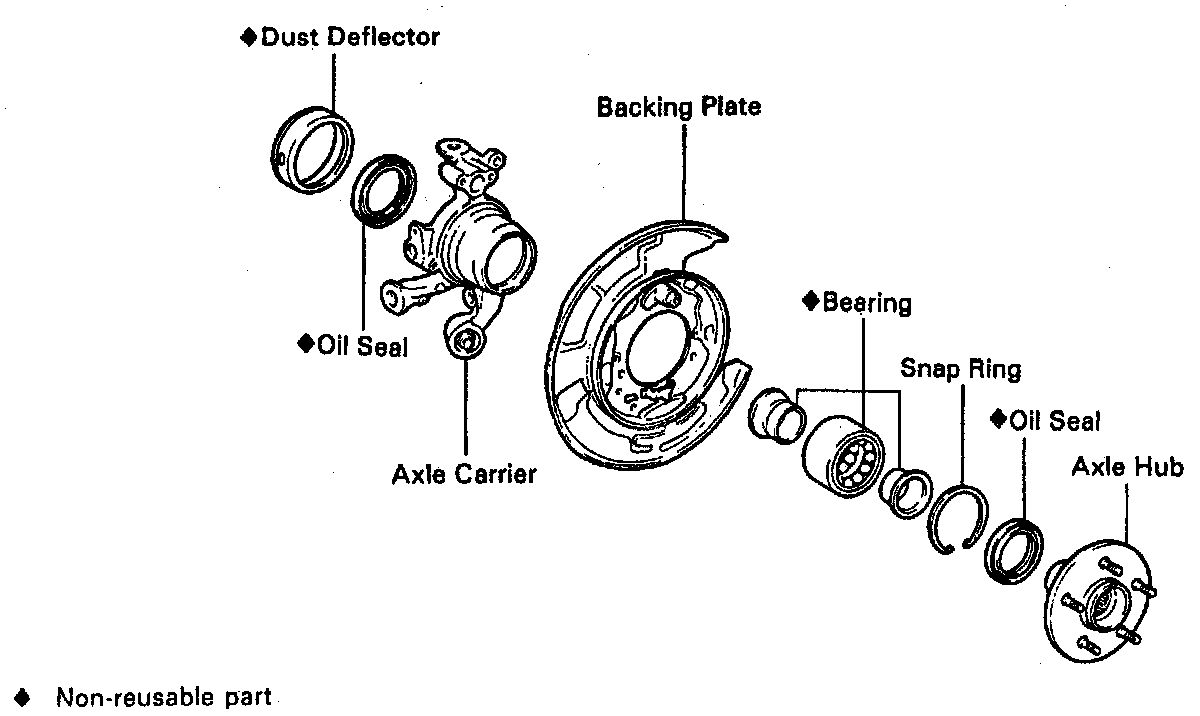

Rear Axle / Hub:
