Supra L6-183 2997cc 3.0L DOHC (2JZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
System Diagram
>>
Rear
Rear

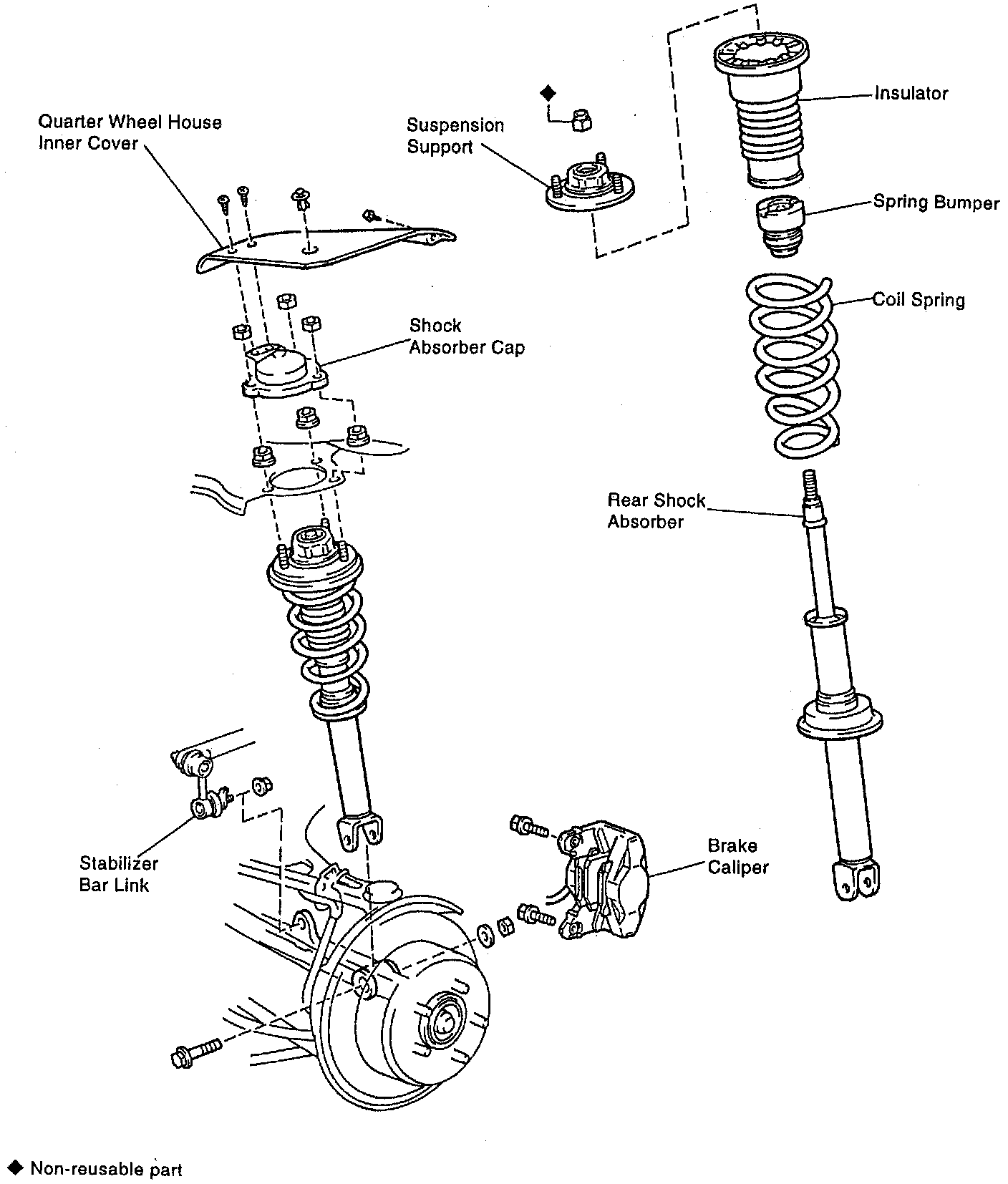

Rear Suspension / Shocks, Coil Springs:
