Home
>>
Toyota
>>
1996
>>
Supra L6-183 2997cc 3.0L DOHC (2JZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

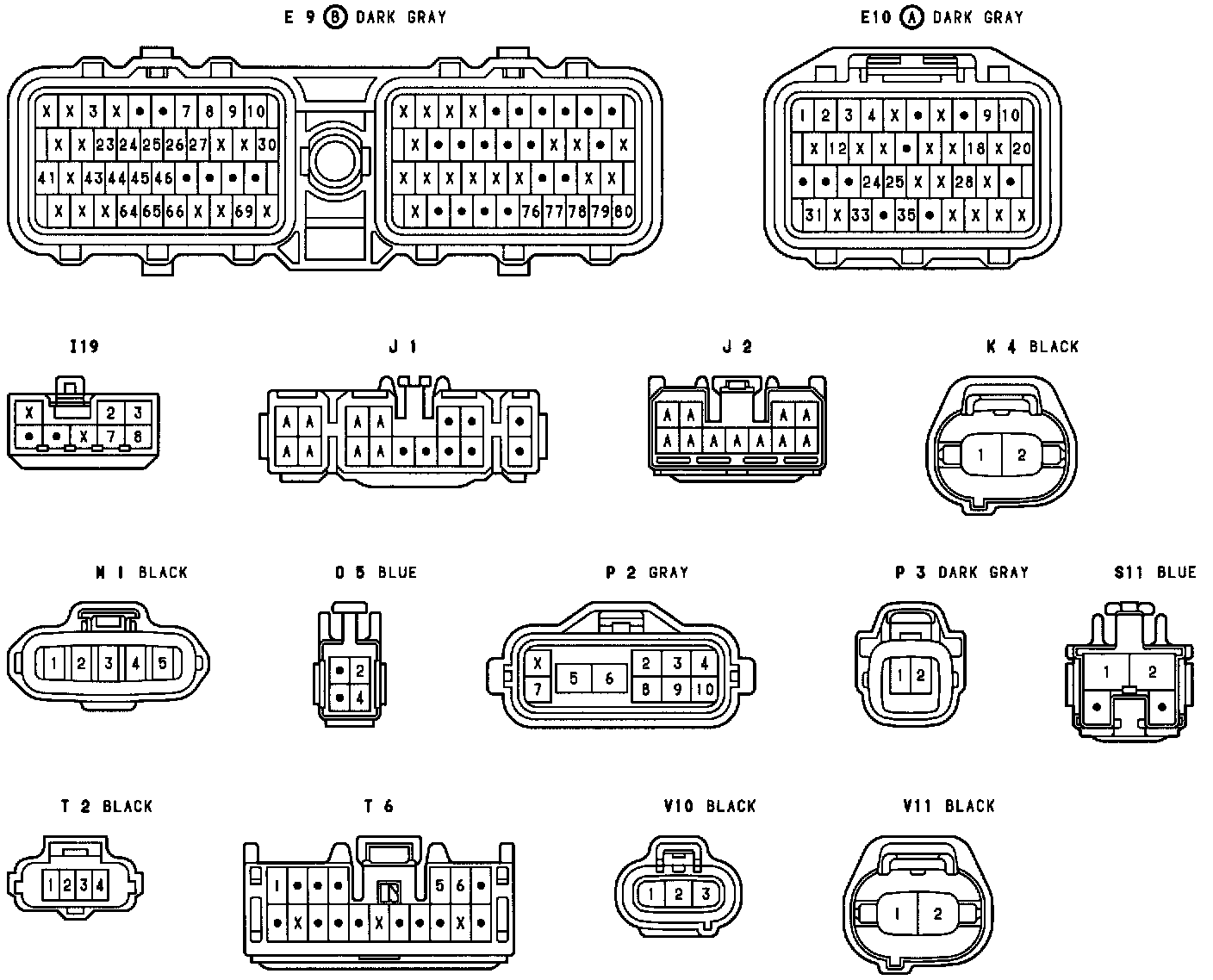

Electronically Controlled Transmission And A/T Indicator-Connectors:
Electronically Controlled Transmission And A/T Indicator-Connectors:
