Supra L6-183 2997cc 3.0L DOHC (2JZ-GE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

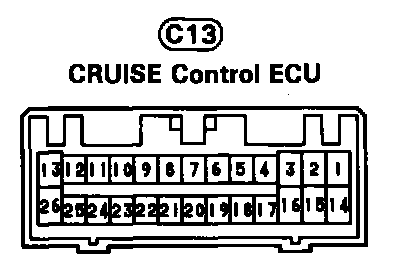

CONNECTOR

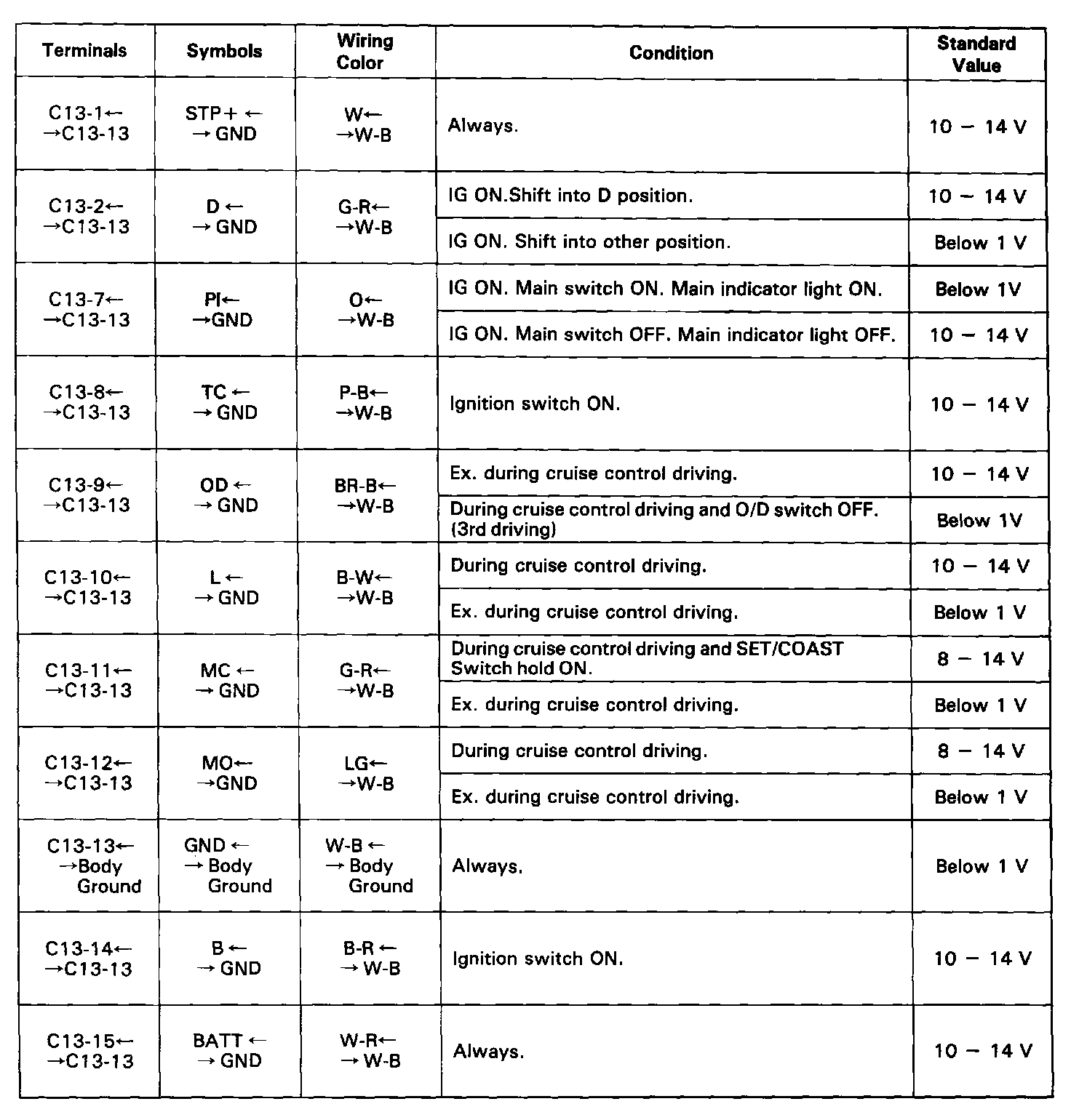

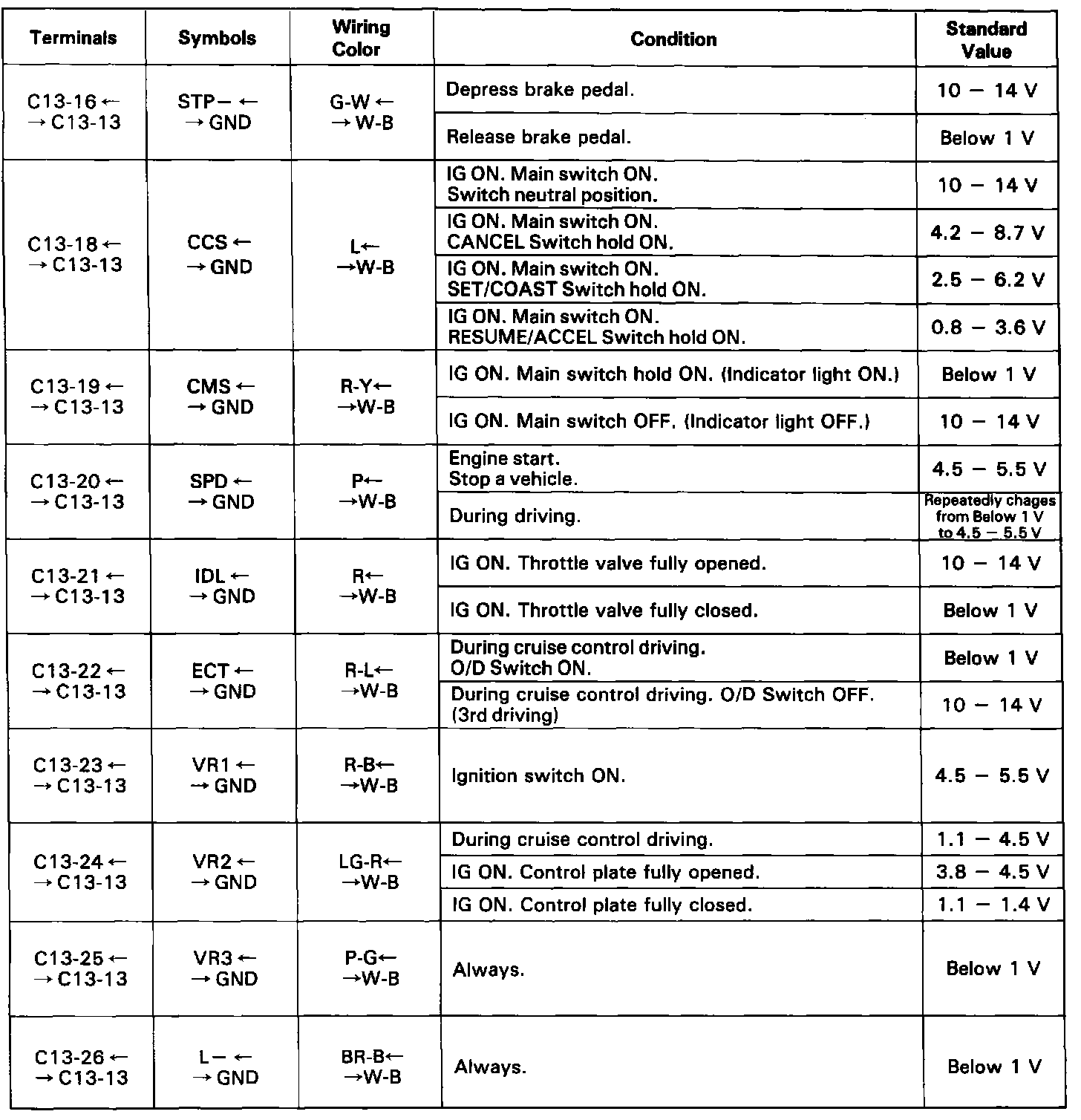

STANDARD VALUES OF ECU TERMINALS
