ECU Power Source Circuit
ECU POWER SOURCE CIRCUITCIRCUIT DESCRIPTION
The ECU power source supplies power to the actuator and sensors, etc. Terminal GND and the cruise control ECU case are grounded.

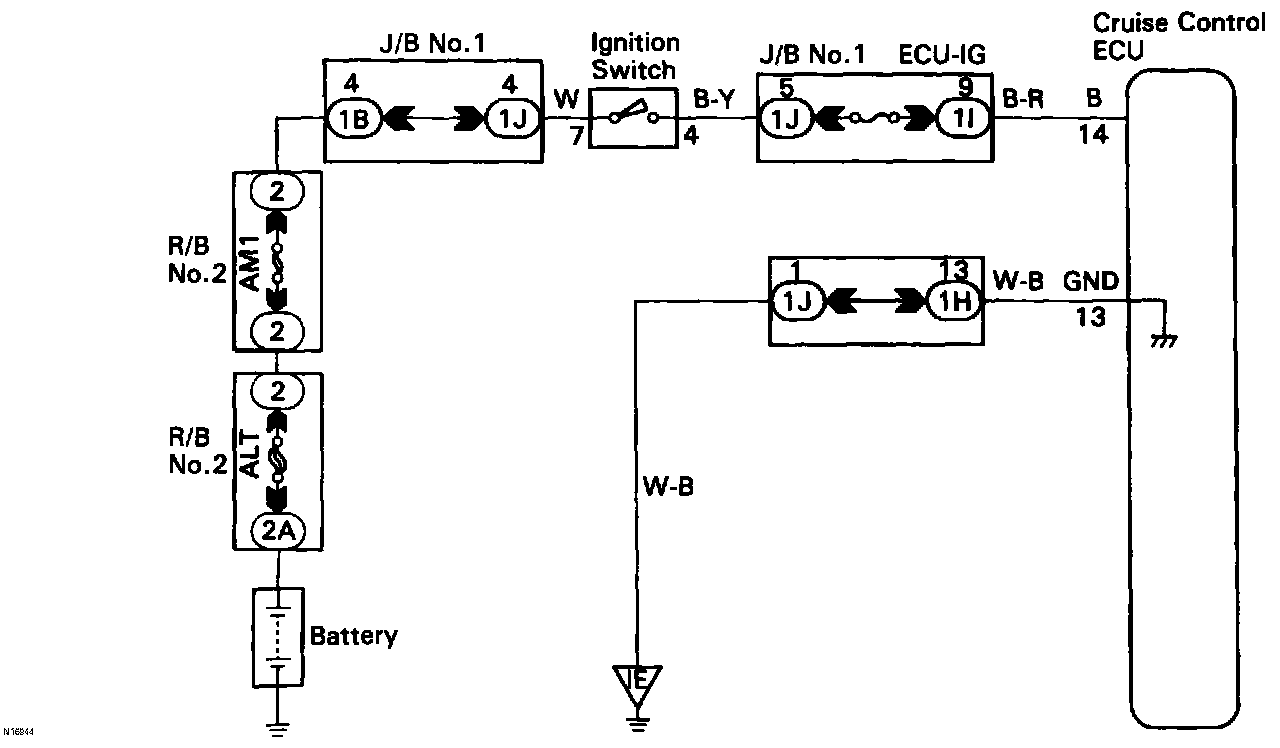

WIRING DIAGRAM

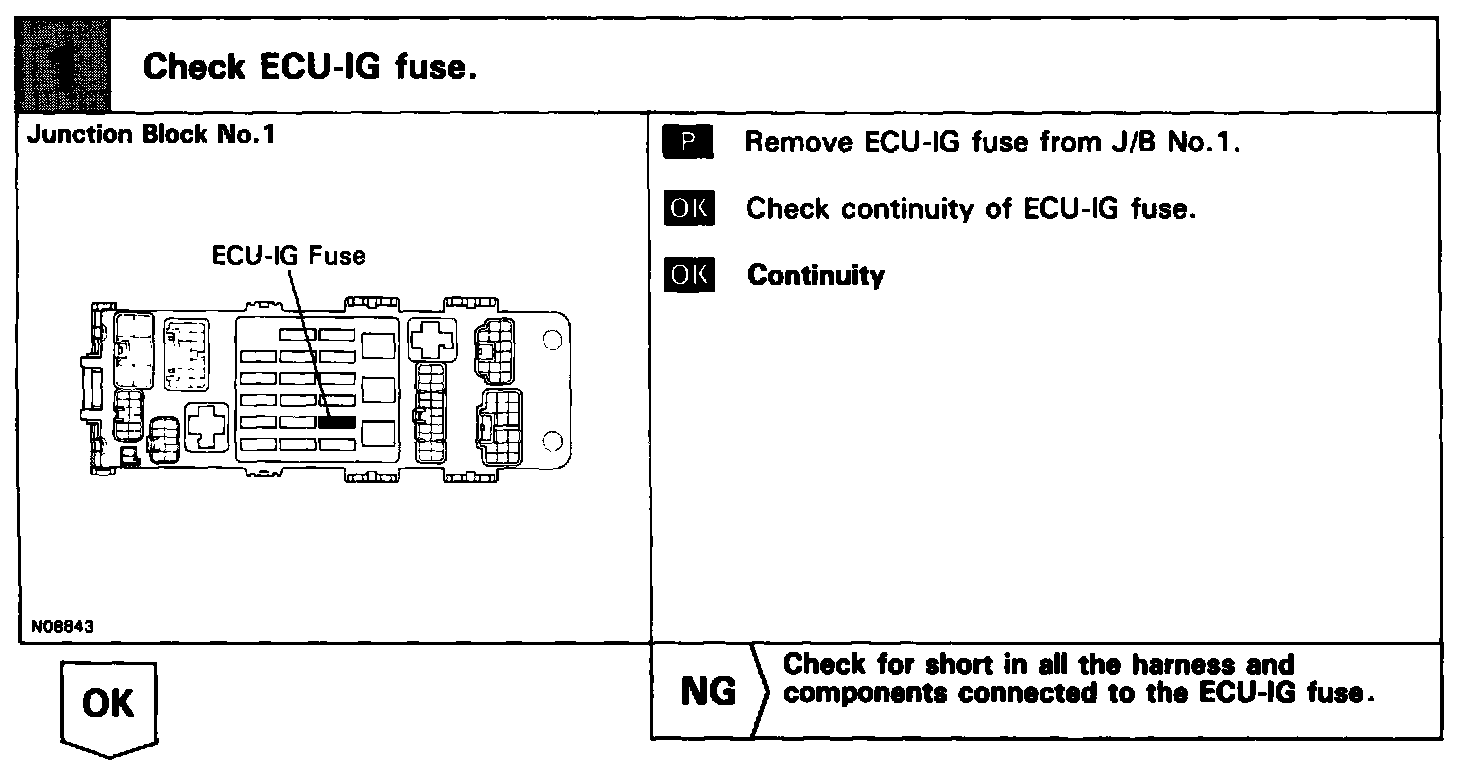

Step 1:

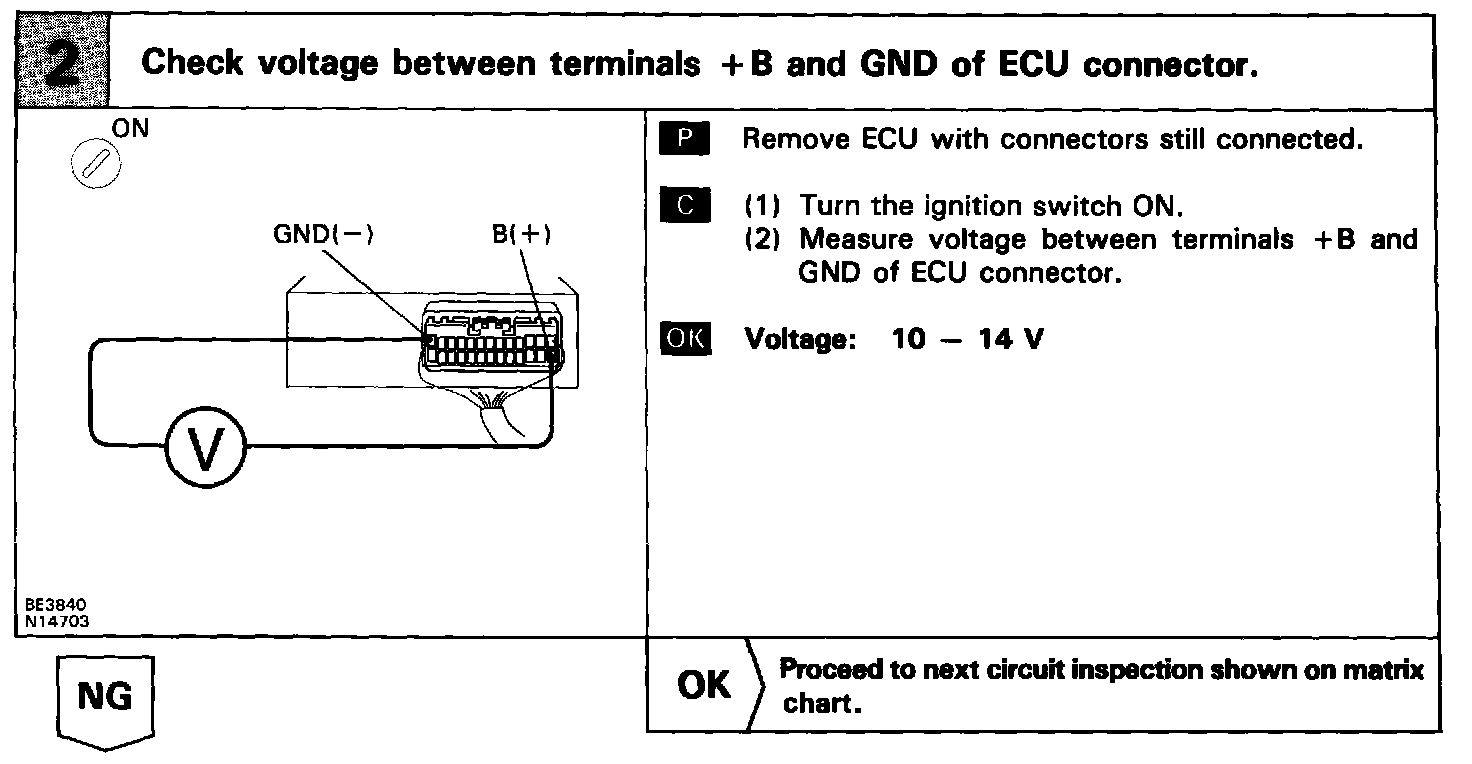

Step 2:

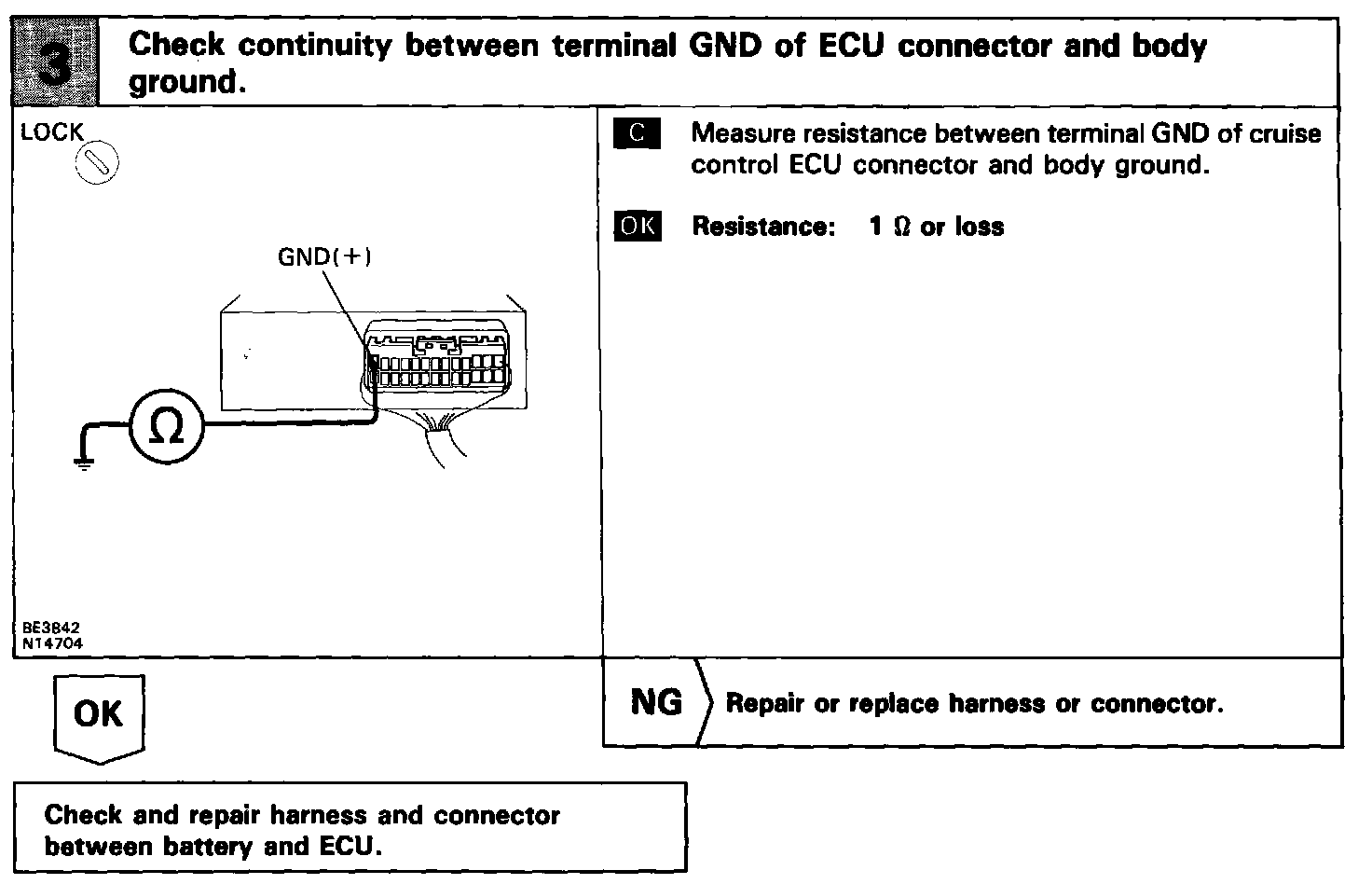

Step 3:
INSPECTION PROCEDURE
