Ts Terminal Circuit

The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected with the diagnostic trouble code check.

Connecting terminals Ts and E1 of the DLC1 in the engine compartment starts the check.

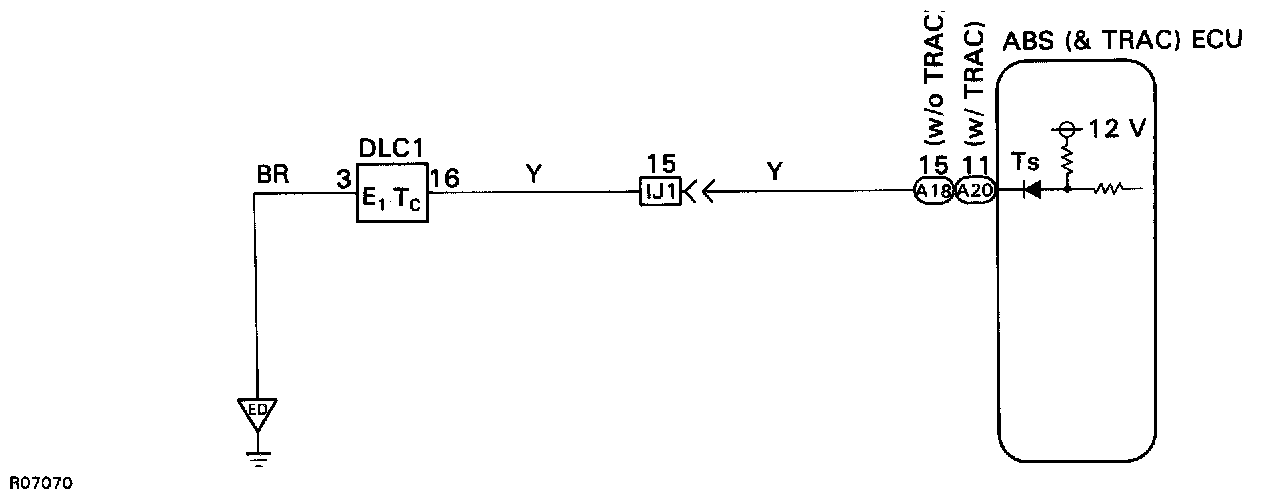

Wiring Diagram:

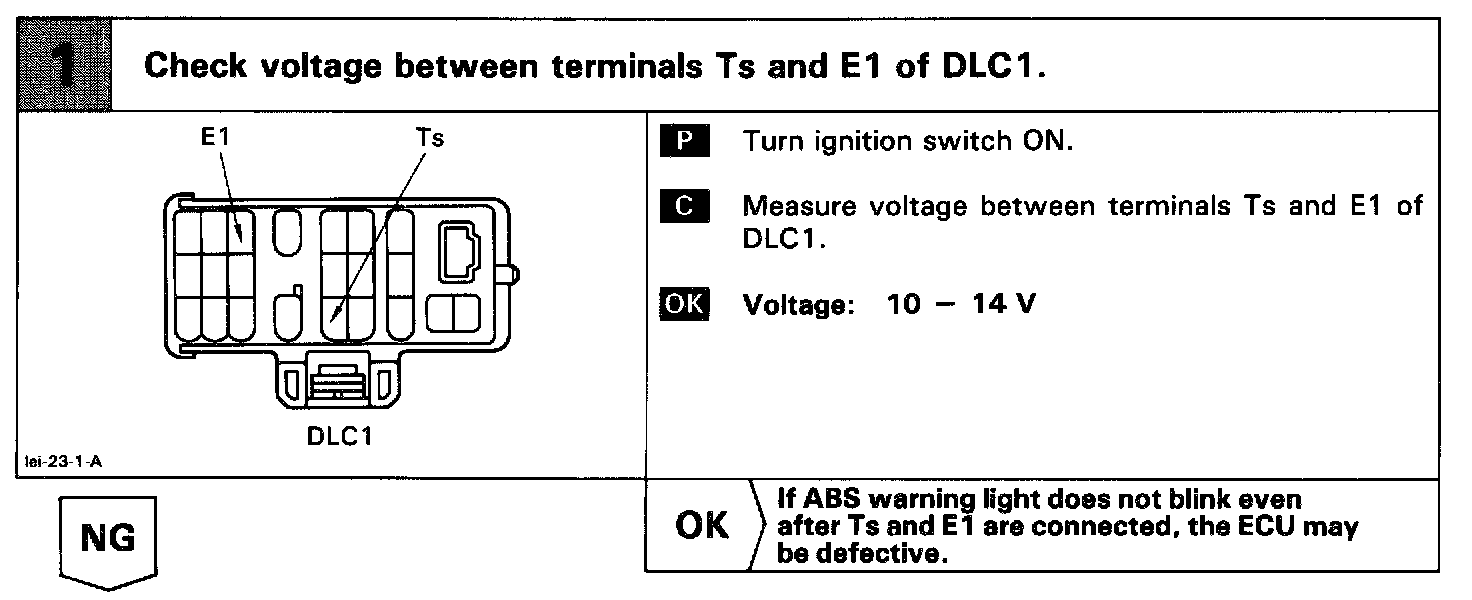

Inspection Procedure - Step 1:

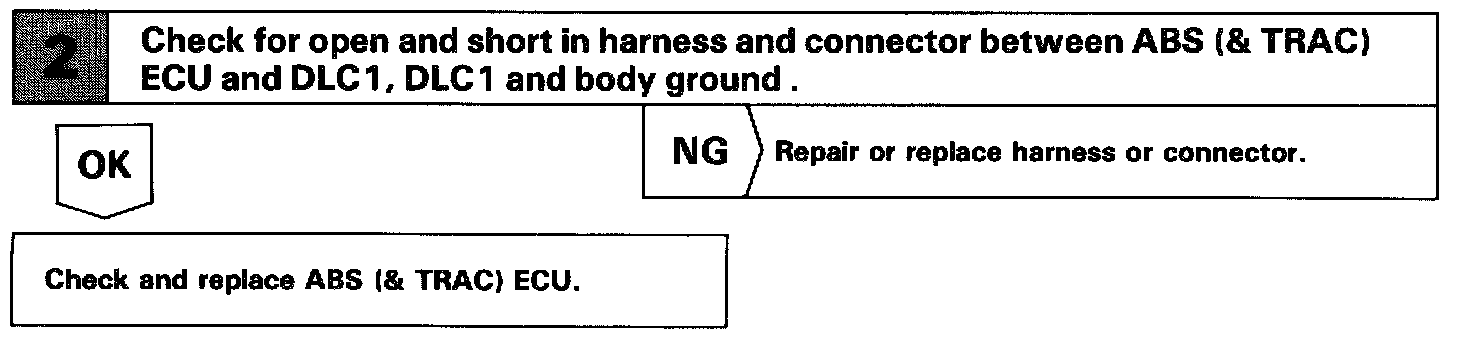

Step 2:
