Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

IAT SENSOR INSPECTION
1. REMOVE IAT SENSOR
2. INSPECT IAT SENSOR

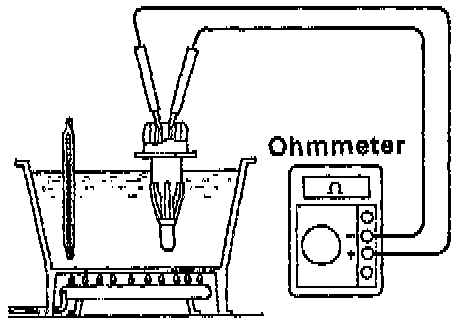

- Using an ohmmeter, measure the resistance between the terminals.

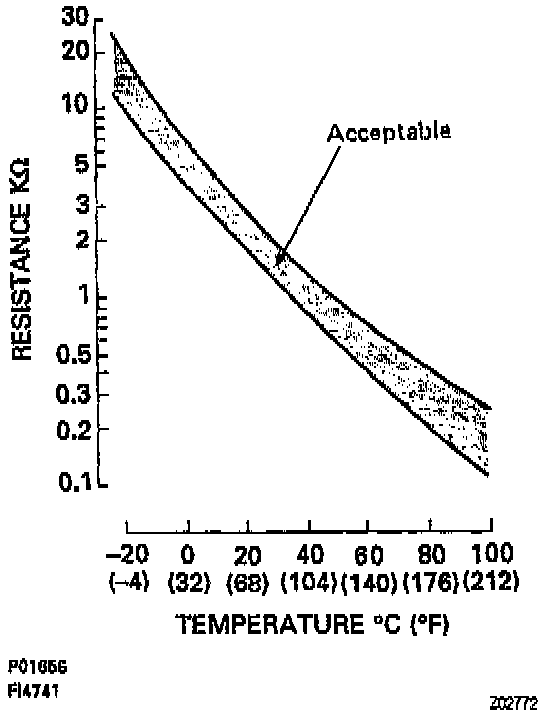

Resistance: Refer to the graph

- If the resistance is not as specified, replace the sensor.
3. REINSTALL IAT SENSOR
