Idle Speed/Throttle Actuator - Electronic: Service and Repair

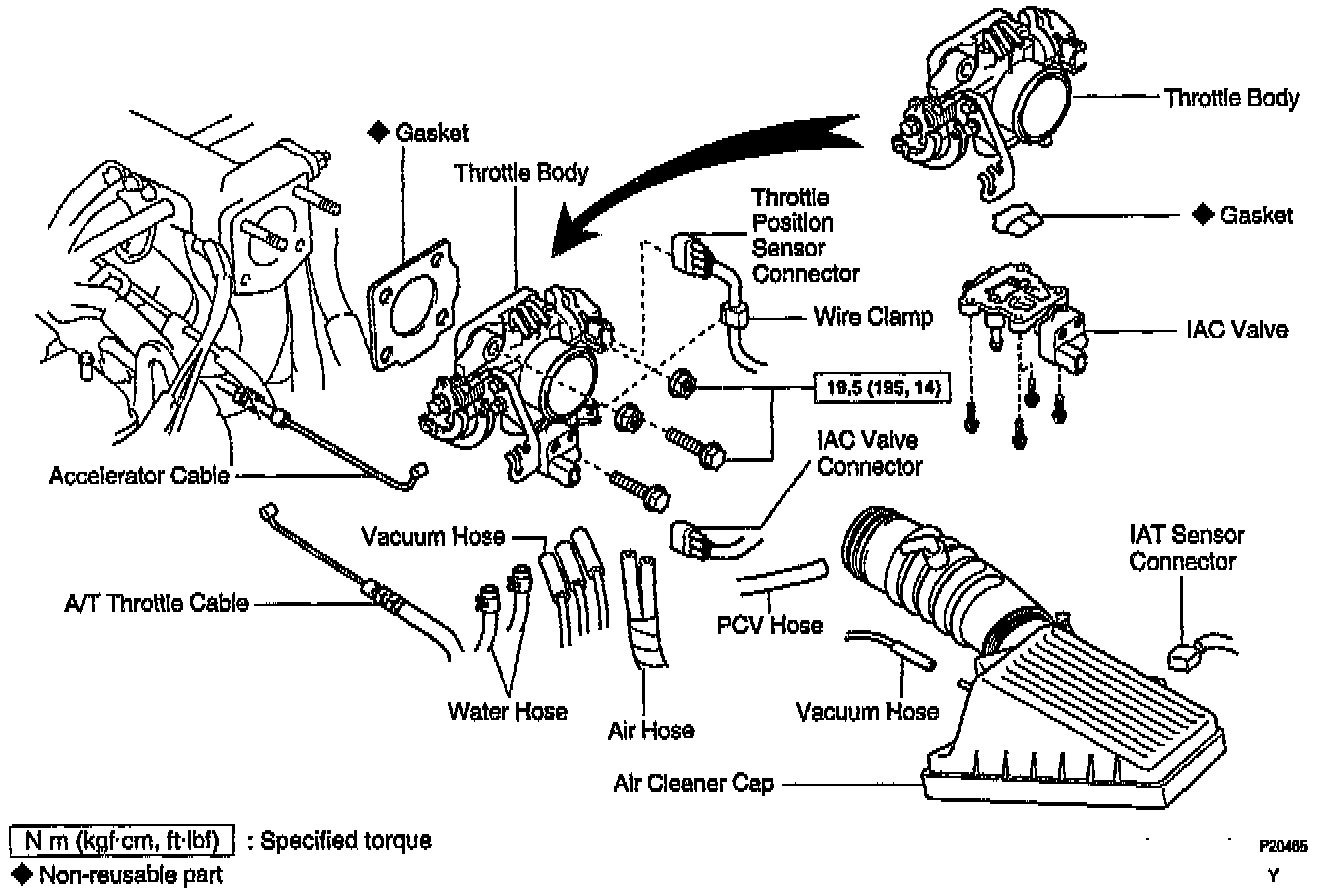

COMPONENTS FOR REMOVAL AND INSTALLATION





IAC VALVE REMOVAL
1. REMOVAL THROTTLE BODY

(See throttle body removal and installation)

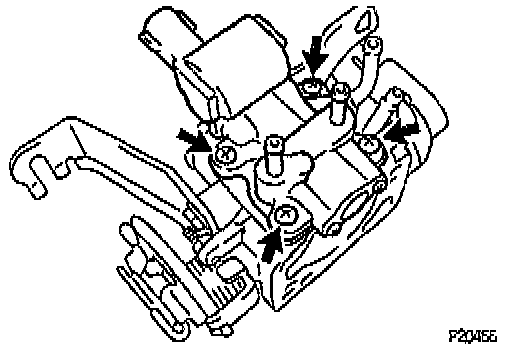

2. REMOVE IAC VALVE Remove the 4 screws, IAC valve and gasket.

INSTALLATION HINT: Use a new gasket.

IAC VALVE INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
