Toyota
>>
1996
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Instrument Panel
Instrument Panel

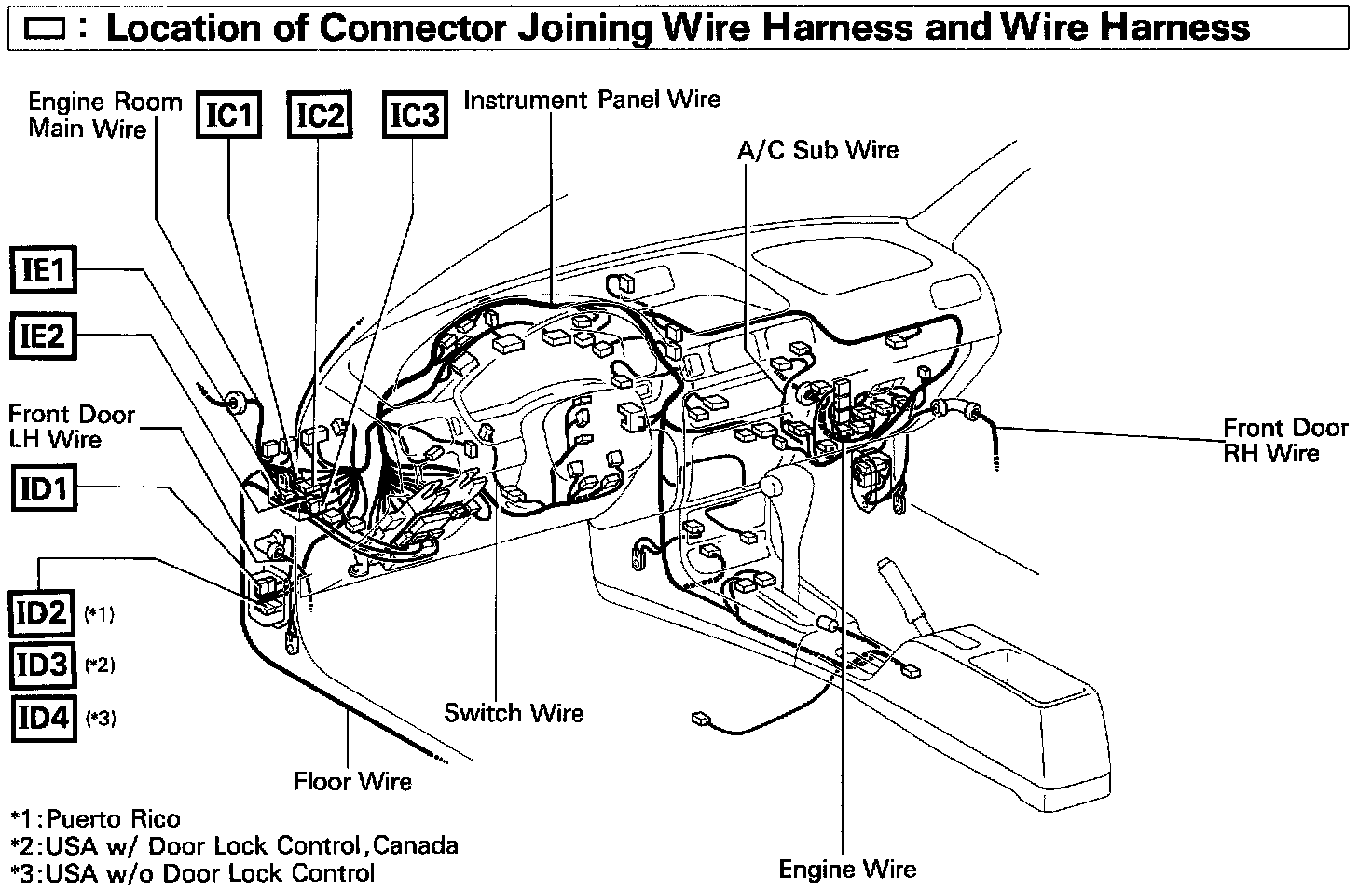

Location Of Connector Joining Wire Harness And Wire Harness (Fig. 32):

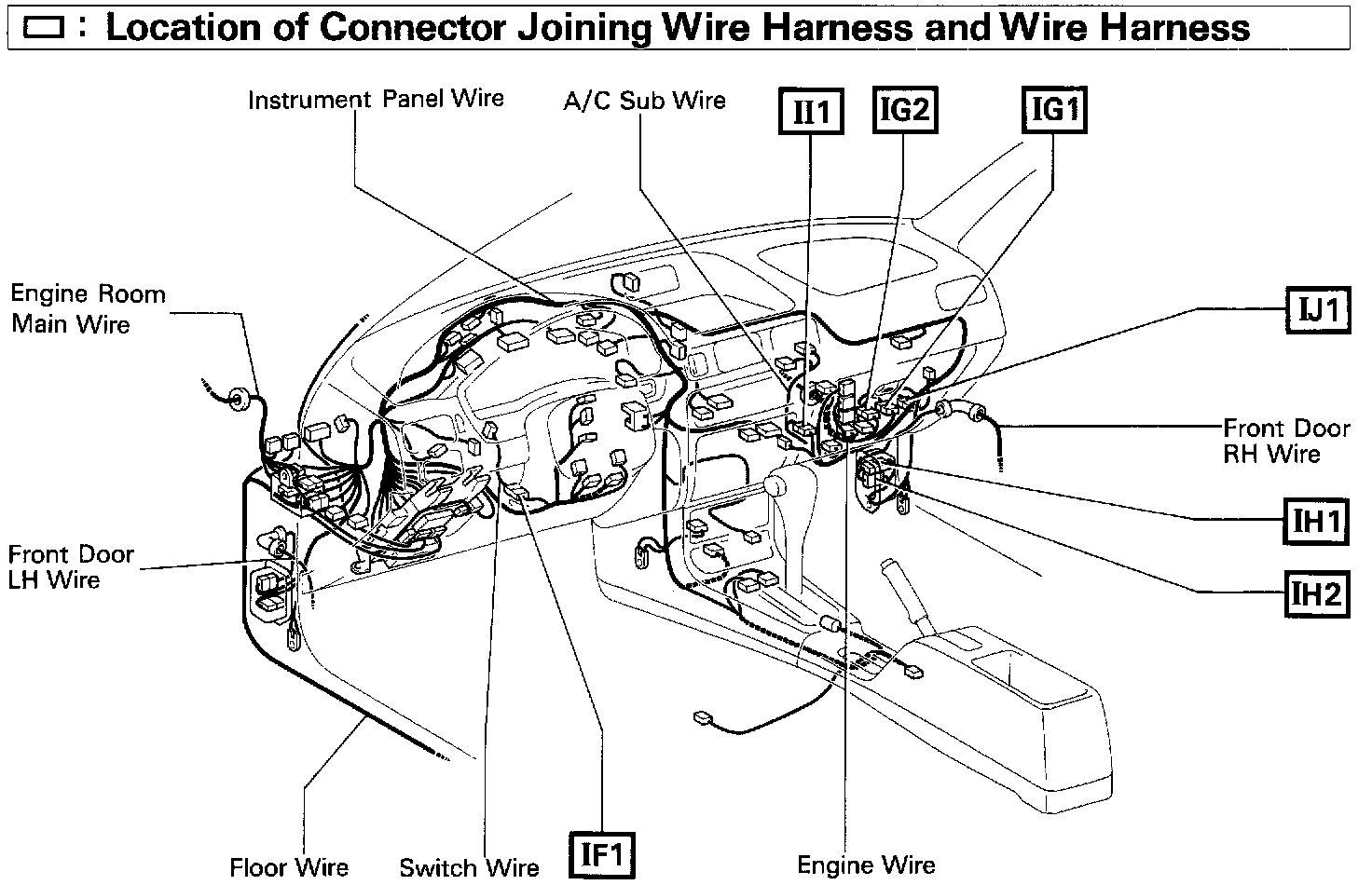

Location Of Connector Joining Wire Harness And Wire Harness (Fig. 34):
