Cylinder Head Assembly: Specifications

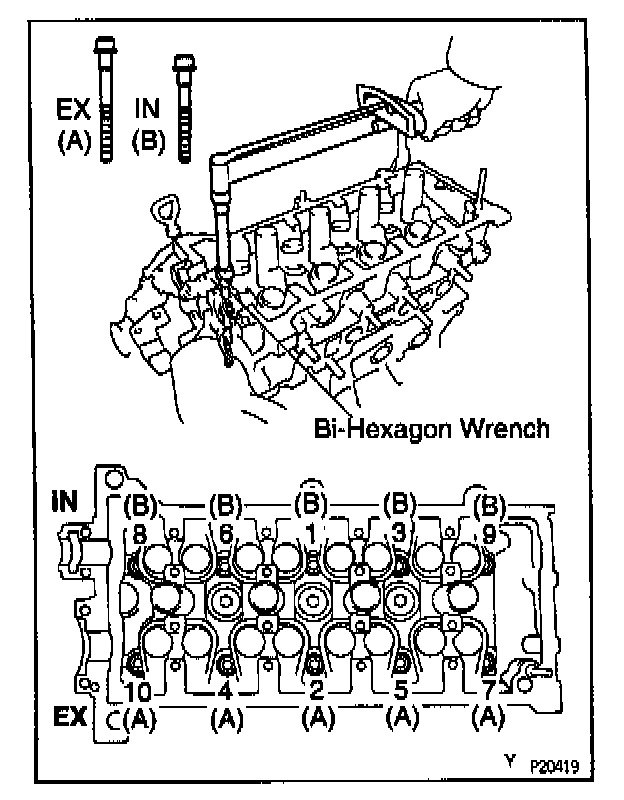

Cylinder Head Bolts Torque Sequence:

Cylinder Head Torque Sequence

Tightening torque:
Step 1 ..... 44 Nm (33 ft lb)
Step 2 ..... Tighten an additional 90°

Component specifications not listed above are found under Engine Specifications.
Service Specifications
