Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

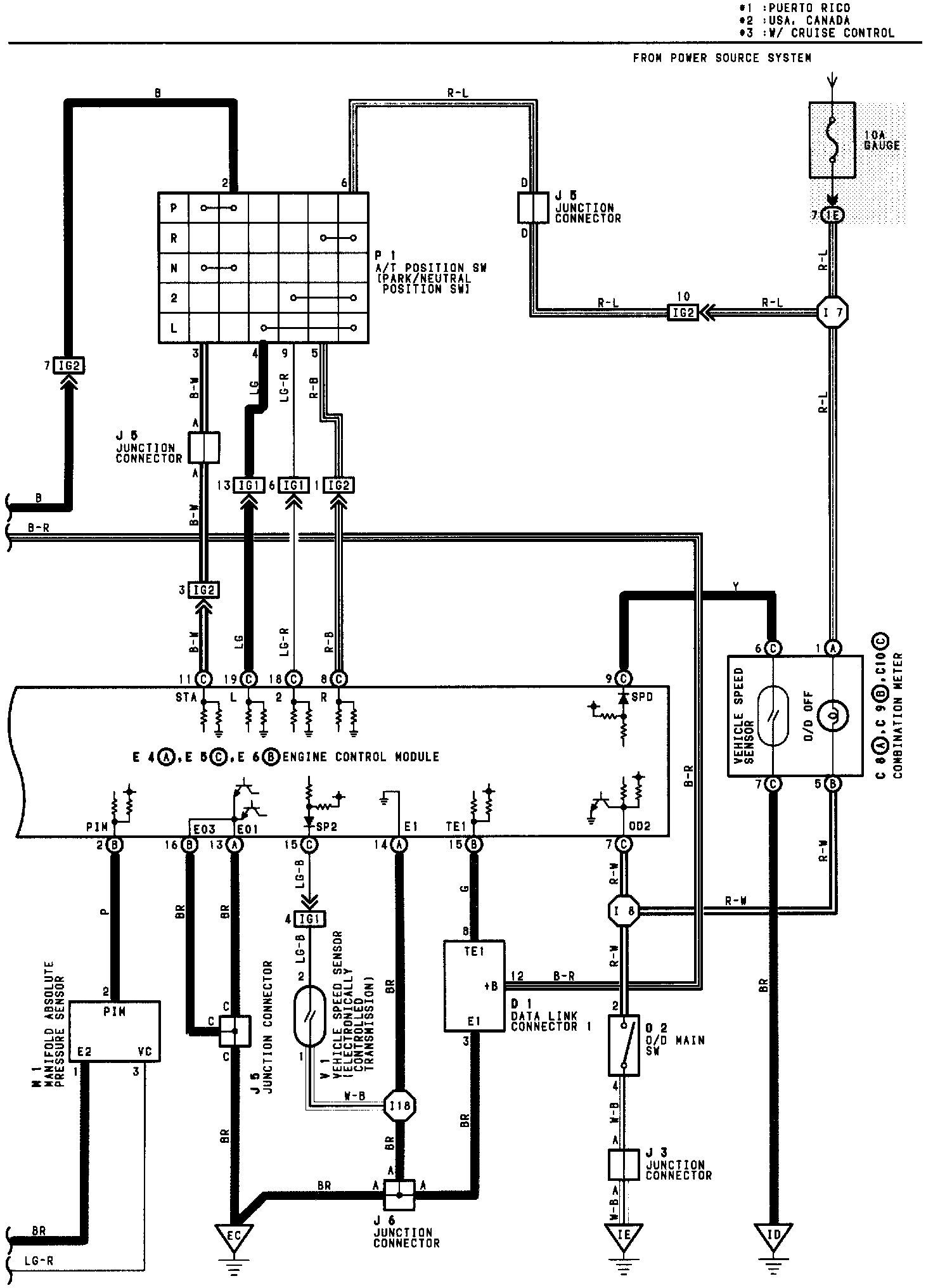

Electronically Controlled Transmission (Part 1 Of 2):

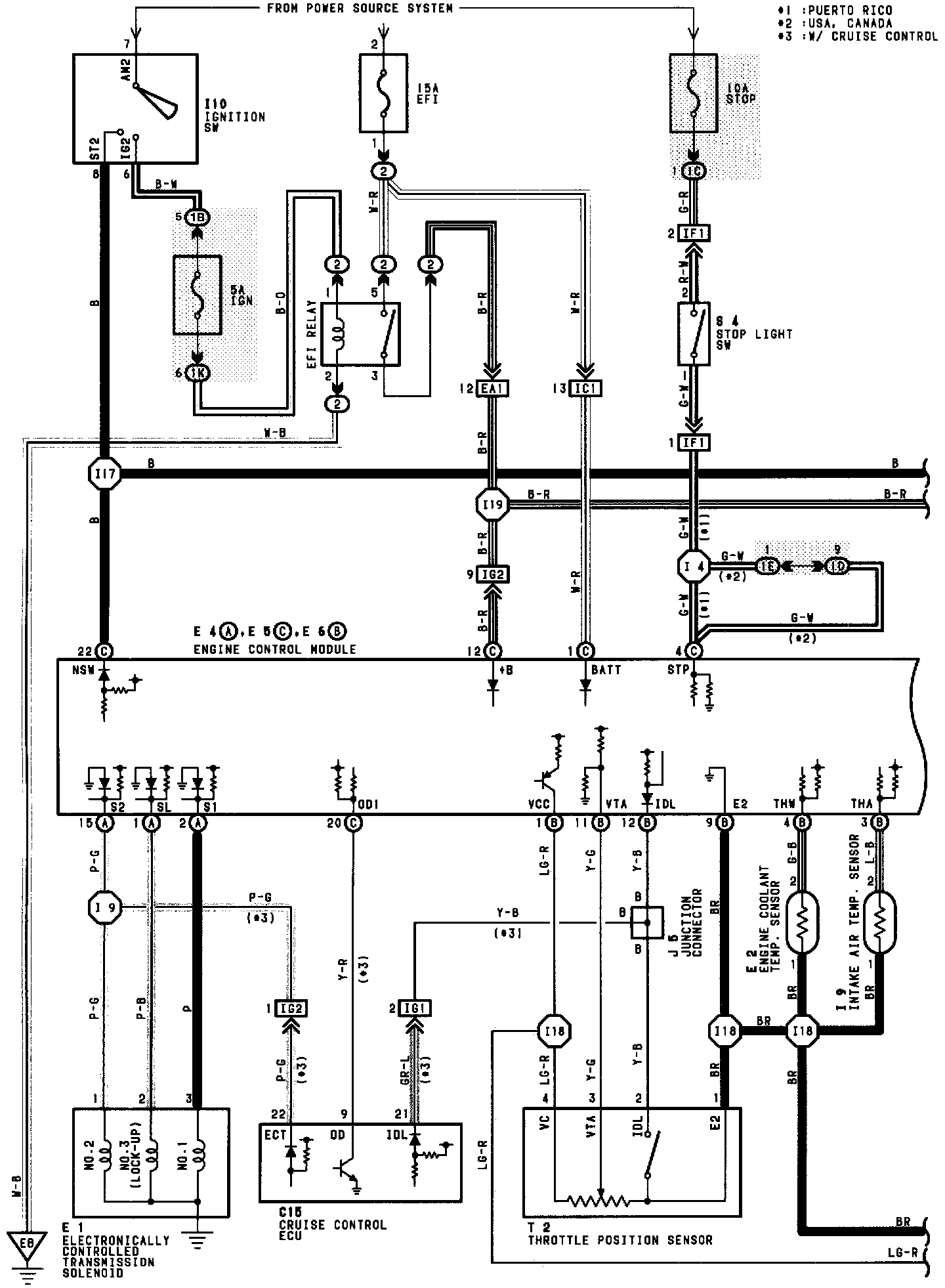

Electronically Controlled Transmission (Part 2 Of 2):
