Door Lock Control (Without Theft Deterrent System) - Connectors
Door Lock Control (Without Theft Deterrent System) - Connectors

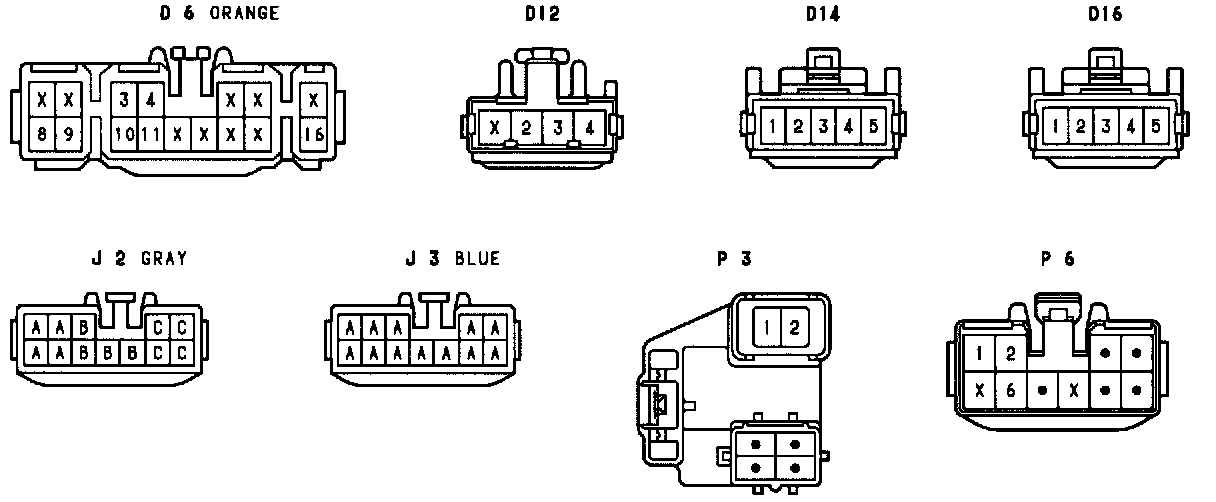

Door Lock Control (Without Theft Deterrent System) - Connectors:
