Home
>>
Toyota
>>
1996
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EA1
EA1

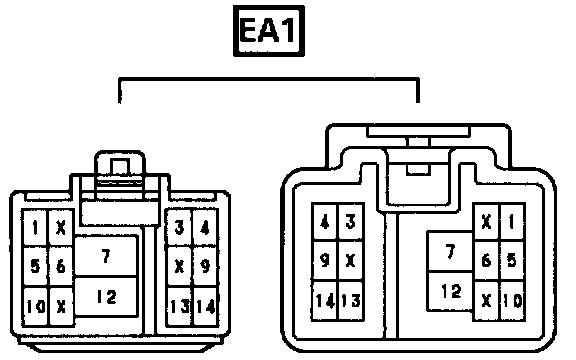

EA1:
Engine Wire and Engine Room Main Wire (Inside of the Engine Room R/B)
