Antitheft and Alarm Systems
>>
Theft Deterrent and Door Lock Control - Connectors
Theft Deterrent and Door Lock Control - Connectors

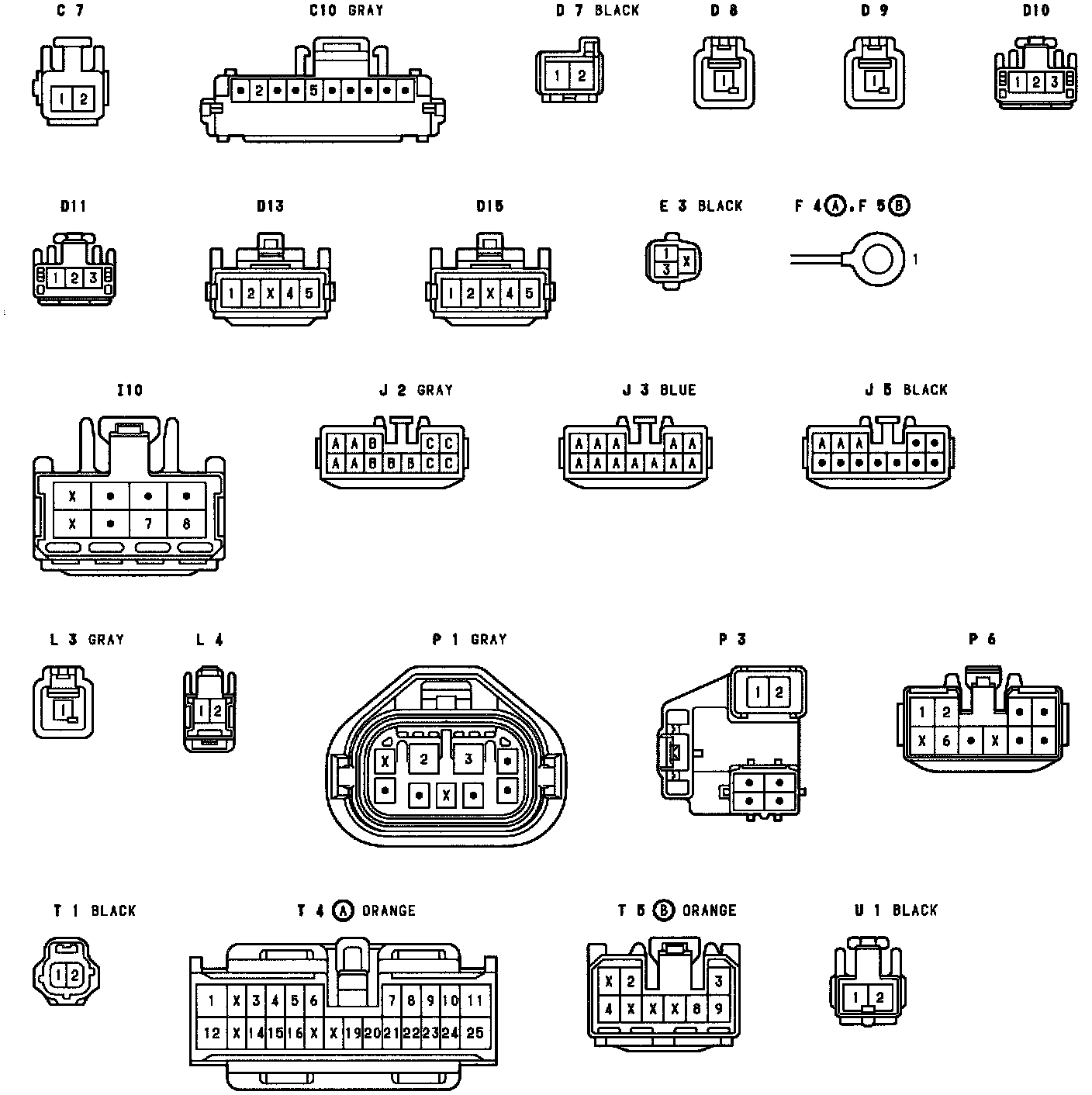

Theft Deterrent And Door Lock Control - Connectors:
