Home
>>
Toyota
>>
1996
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Theft Deterrent (Without Door Lock Control) - Connectors
Theft Deterrent (Without Door Lock Control) - Connectors

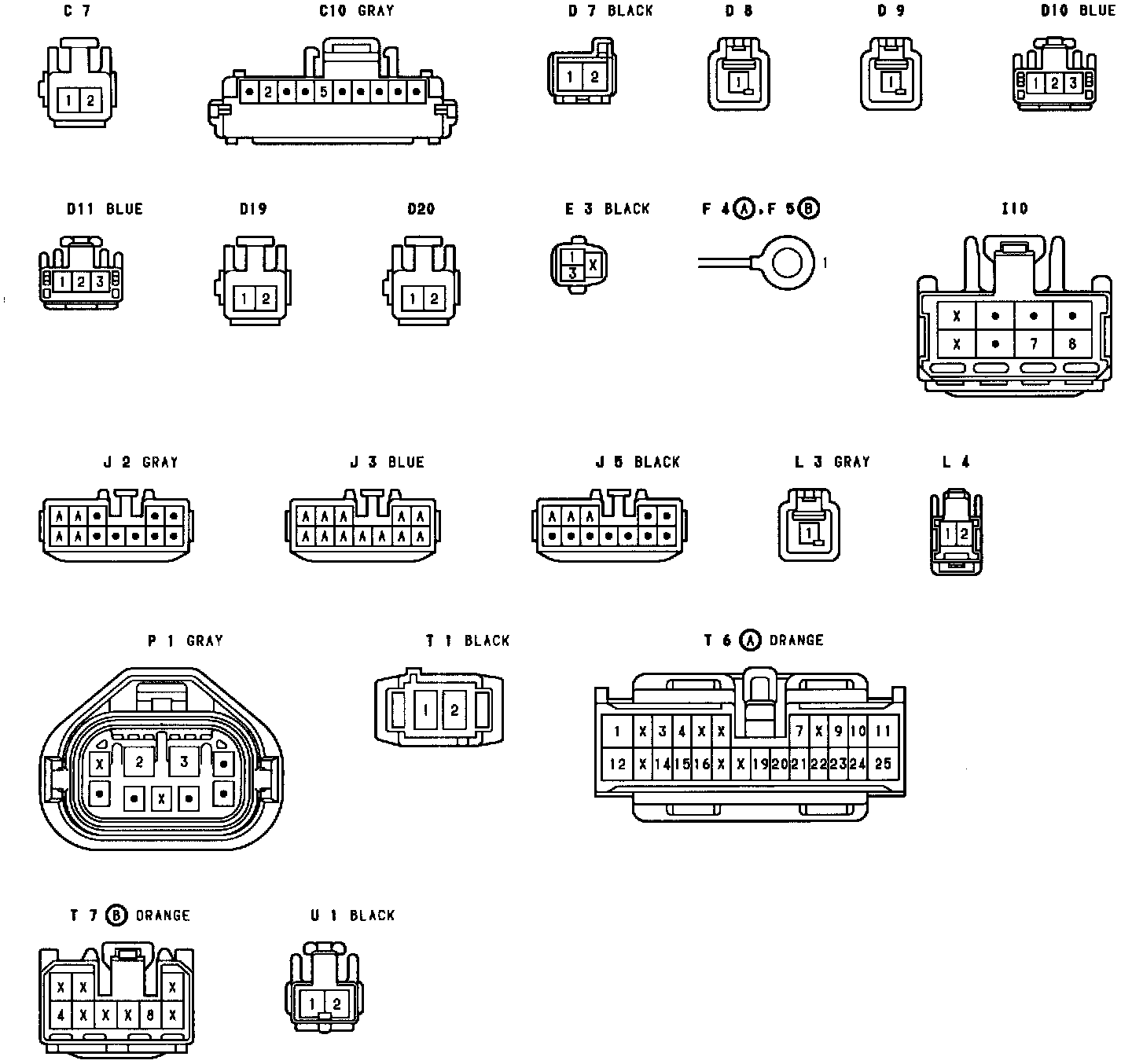

Theft Deterrent (Without Door Lock Control) - Connectors:
