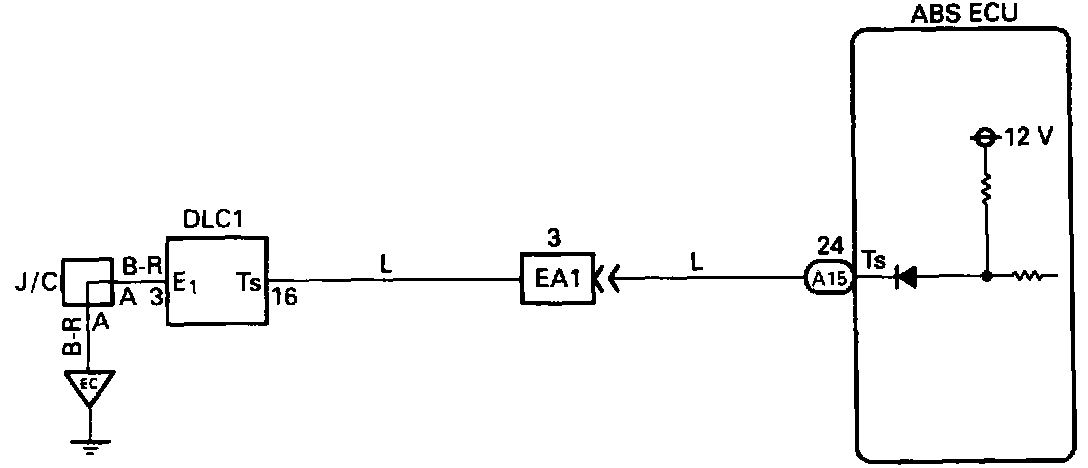

Ts Terminal Circuit

- The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected with the DTC check.

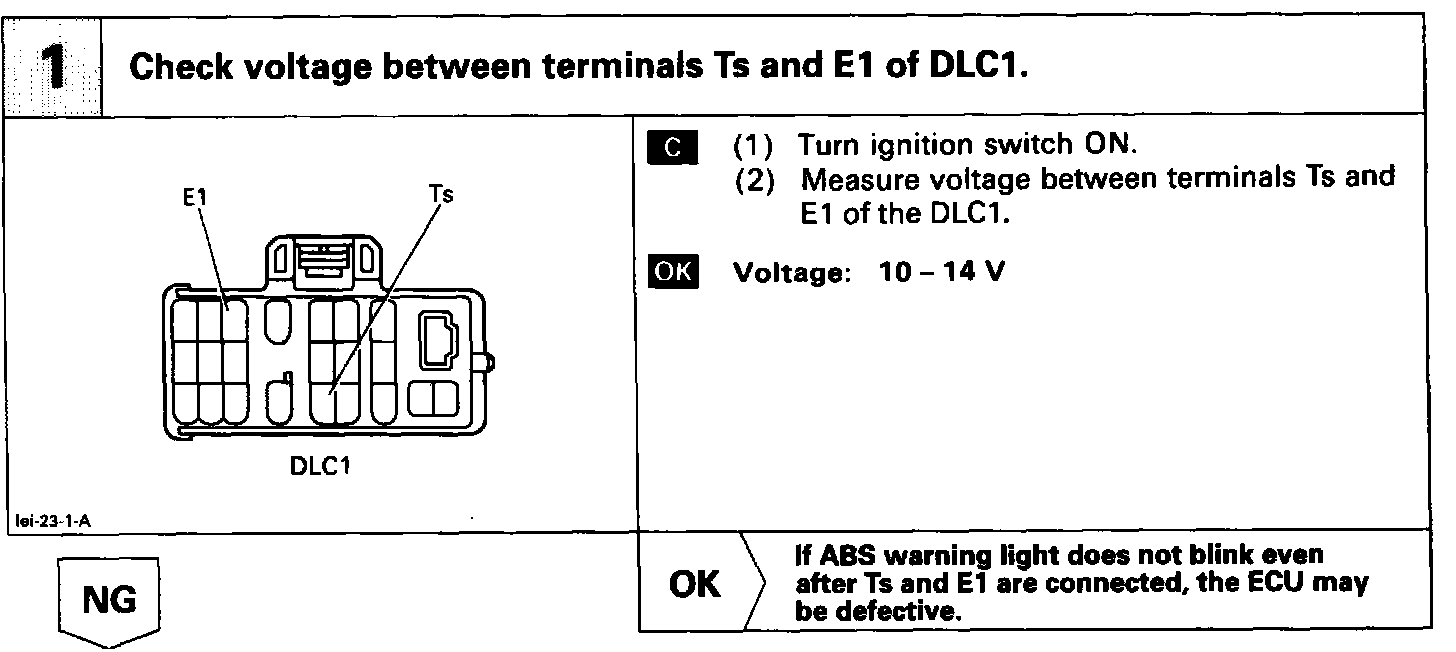

- Connecting terminals Ts and E1 of the DLC1 in the engine compartment starts the check.
