Stop Light Switch Circuit

This stop light switch senses whether the brake pedal is depressed or released, and sends the signal to the ECU.

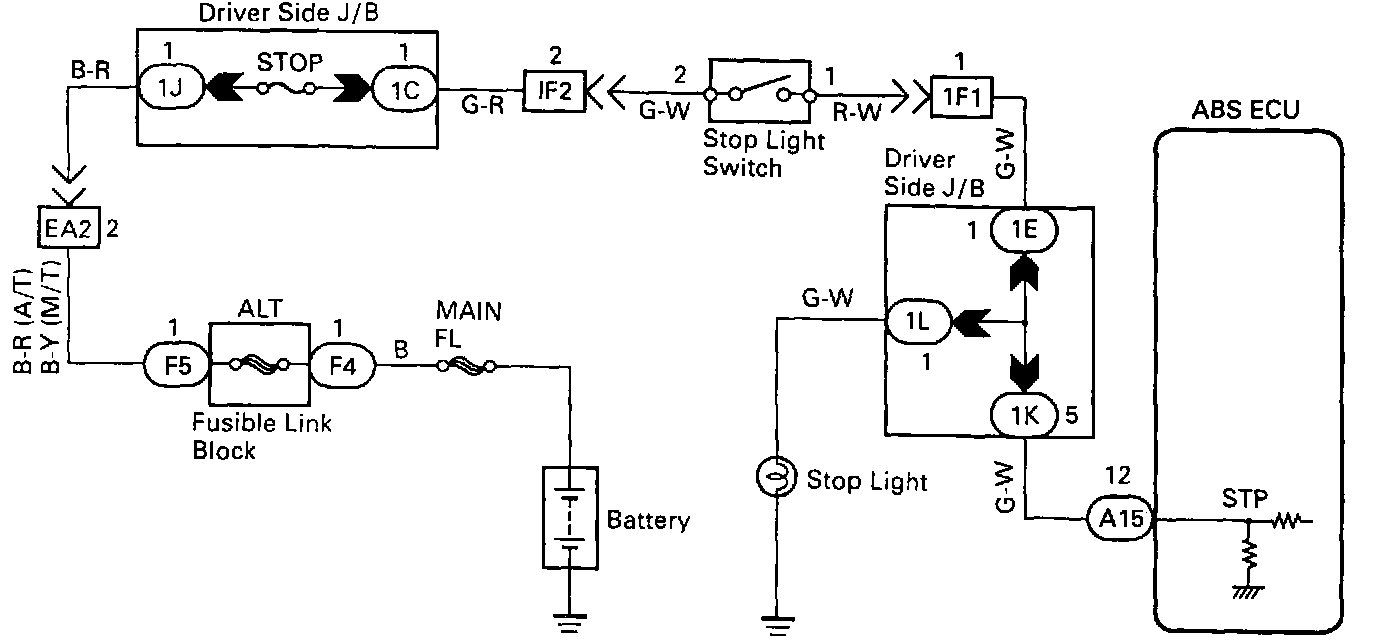

Wiring Diagram:

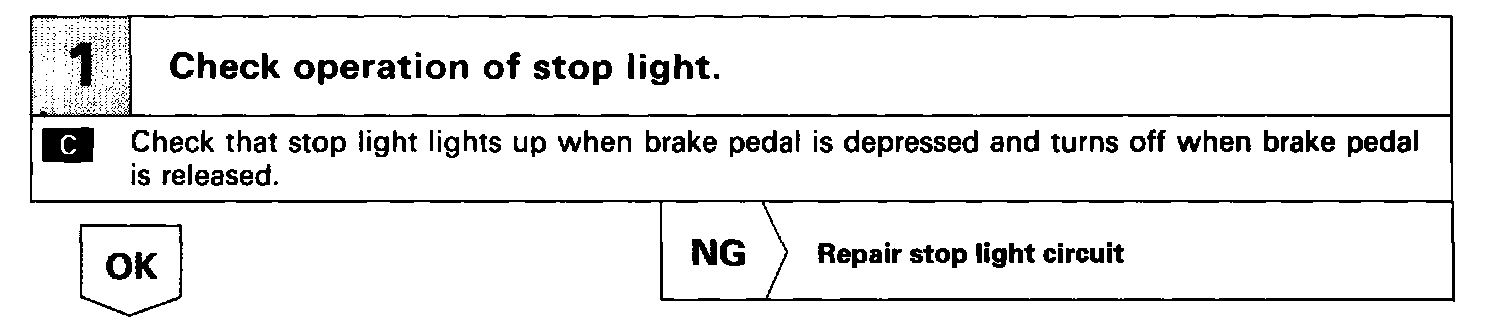

Inspection Procedure - Step 1:

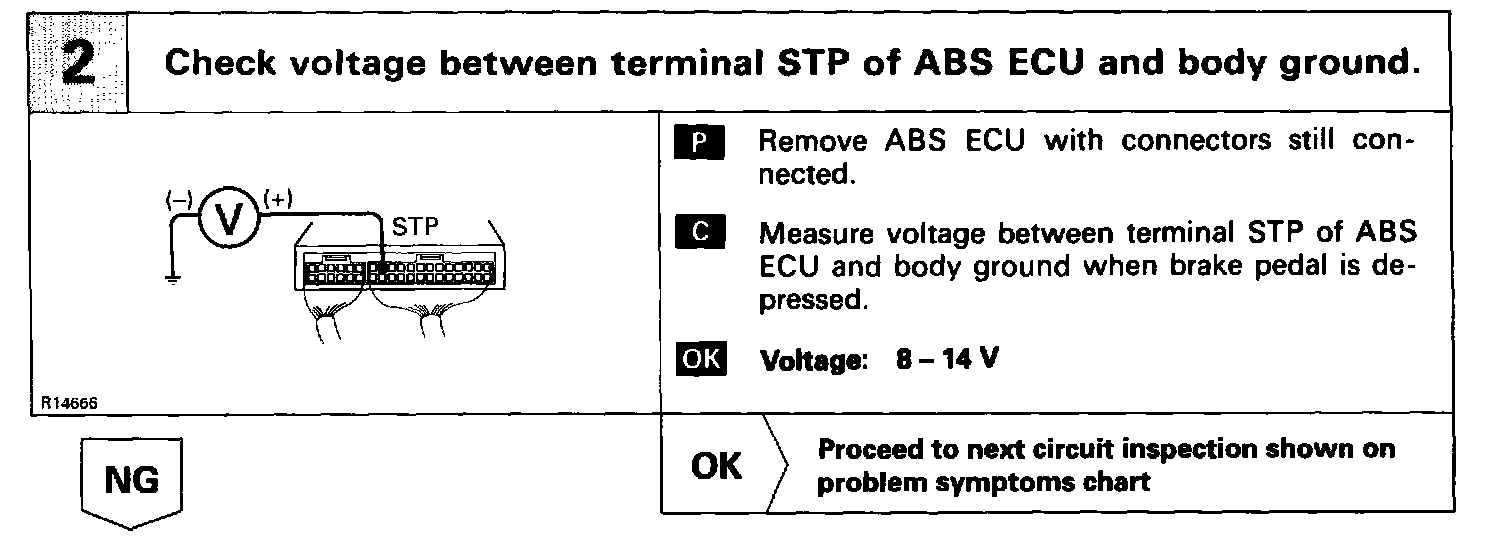

Step 2:

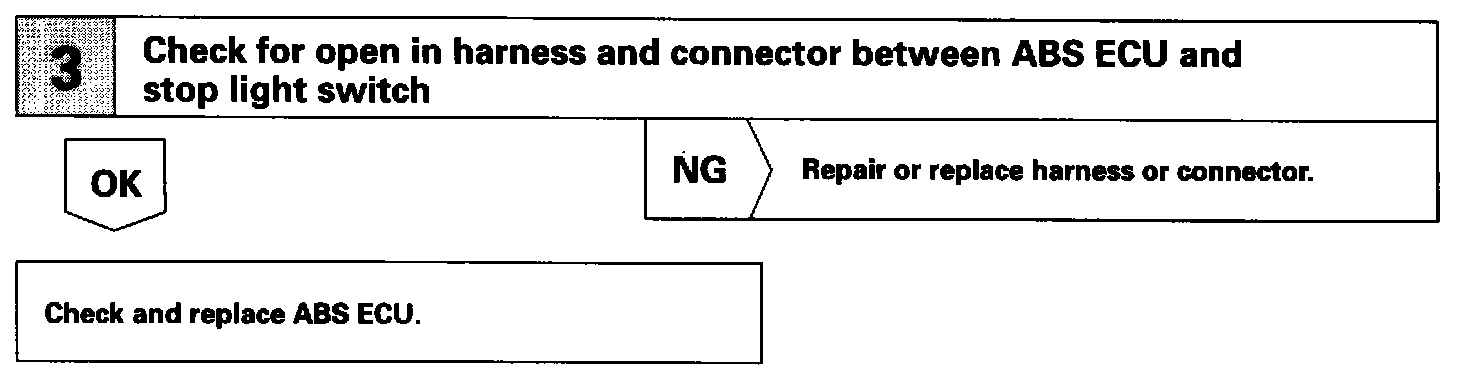

Step 3:
