ABS Light: Testing and Inspection

- If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.
- After removing the short pin of the DLC1, connect between terminals Tc and E1 of the DLC1 to make the ABS warning light blink and output the DTC.

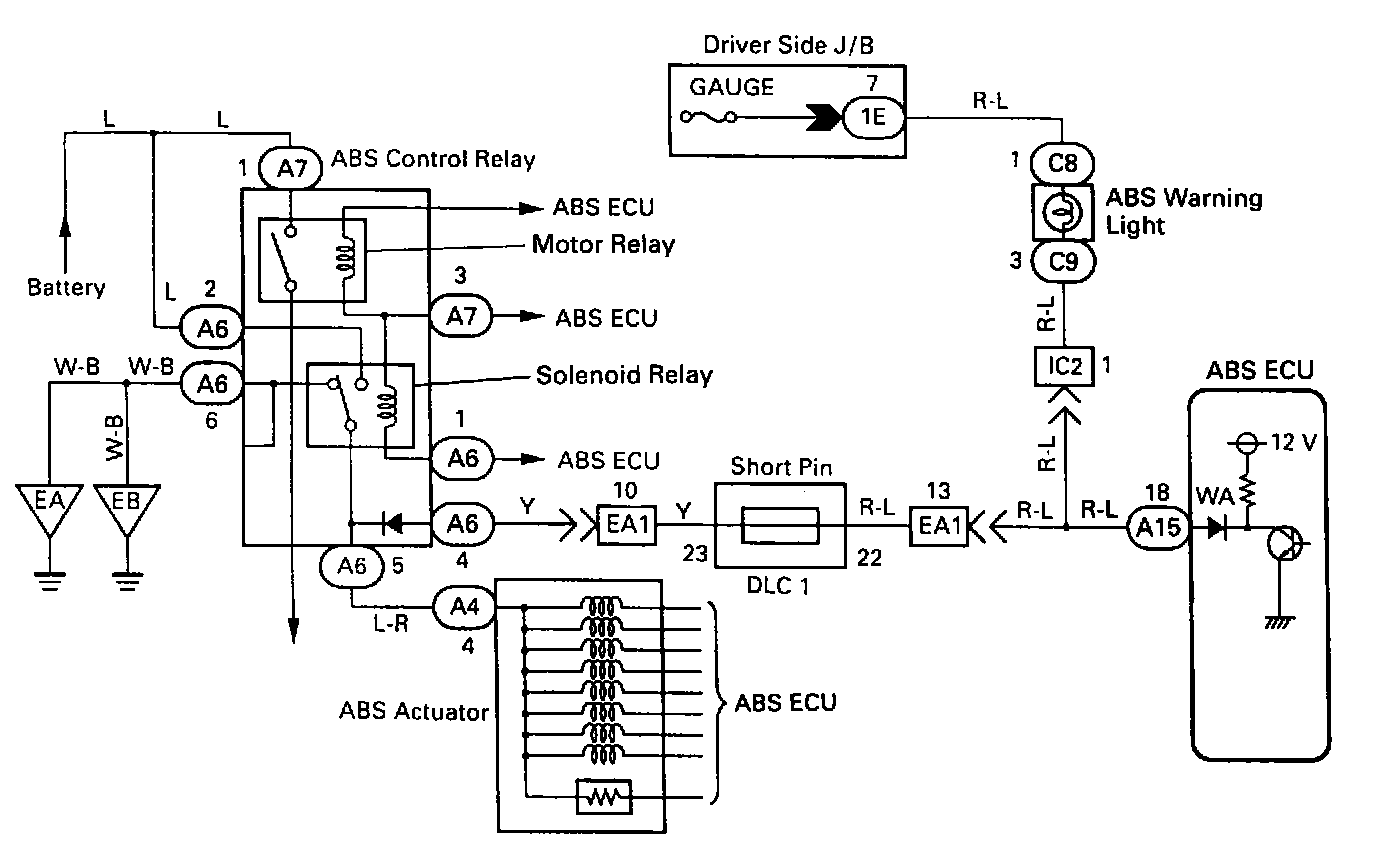

Wiring Diagram:

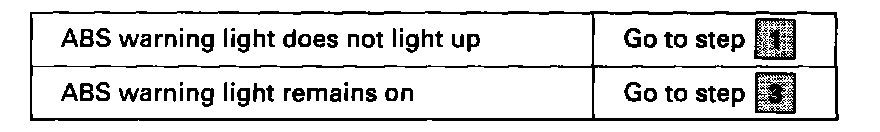

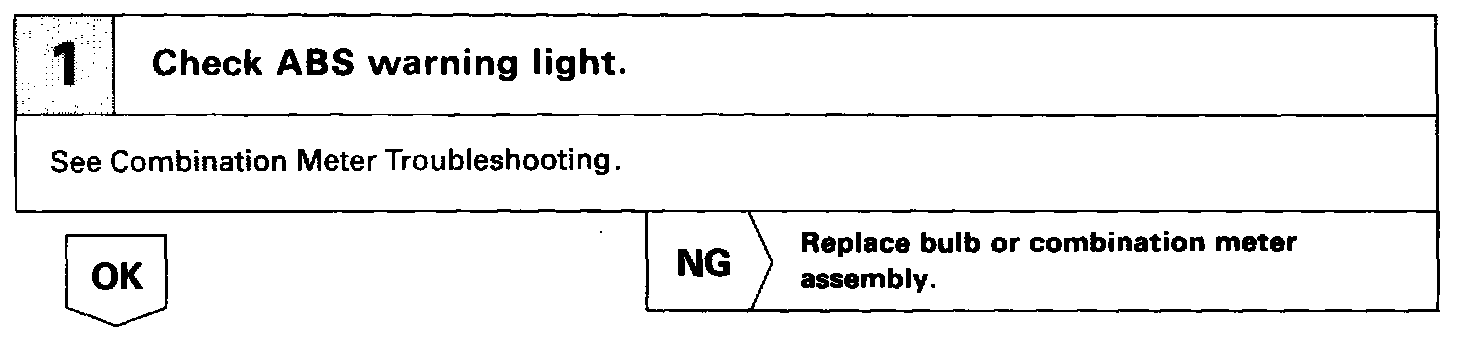

Inspection Procedure - Step 1:

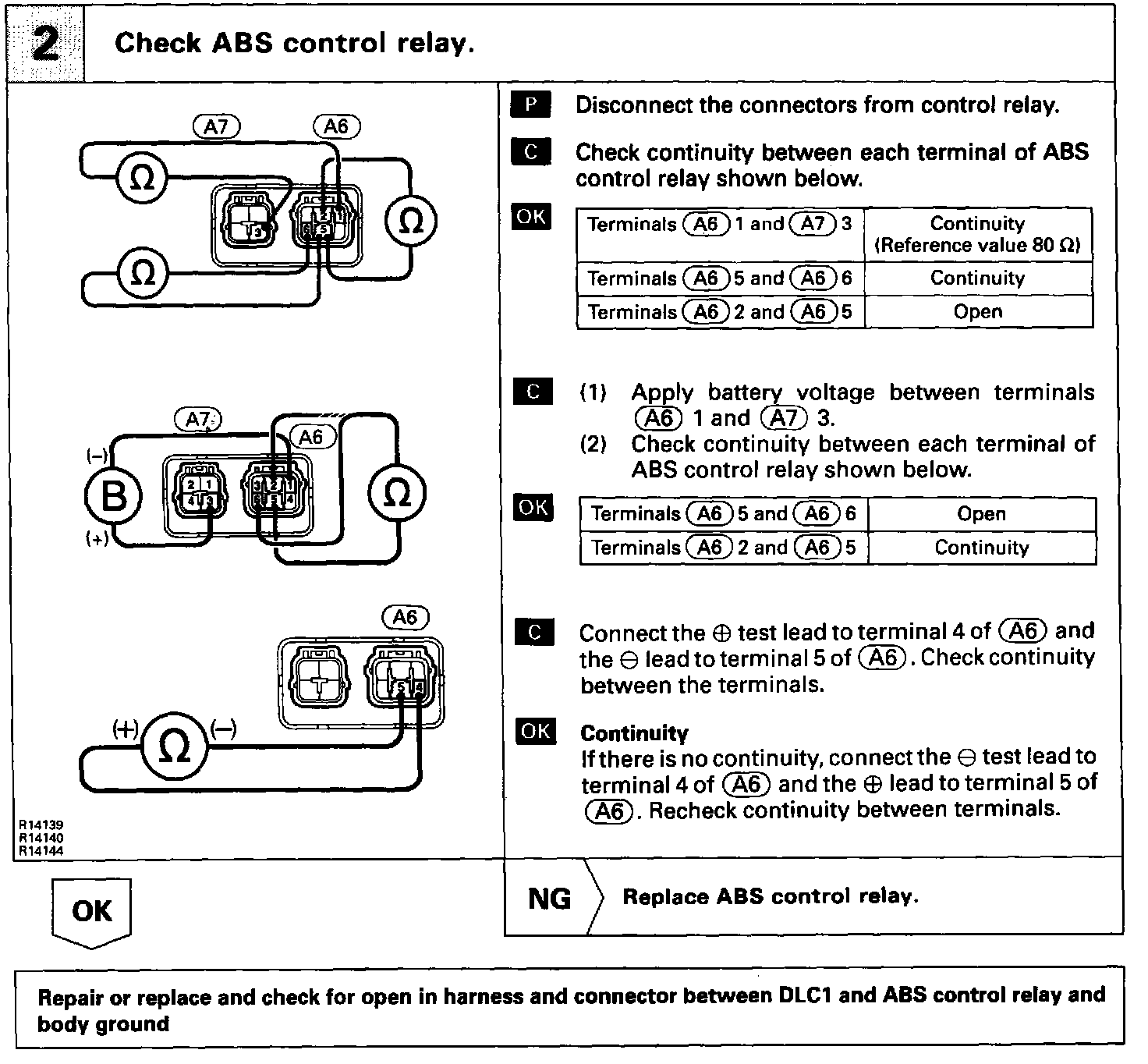

Step 2:

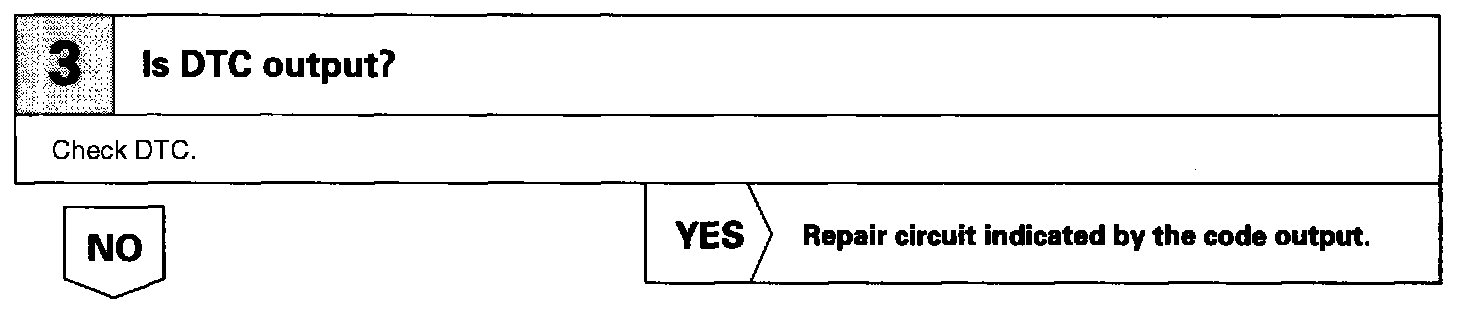

Step 3:

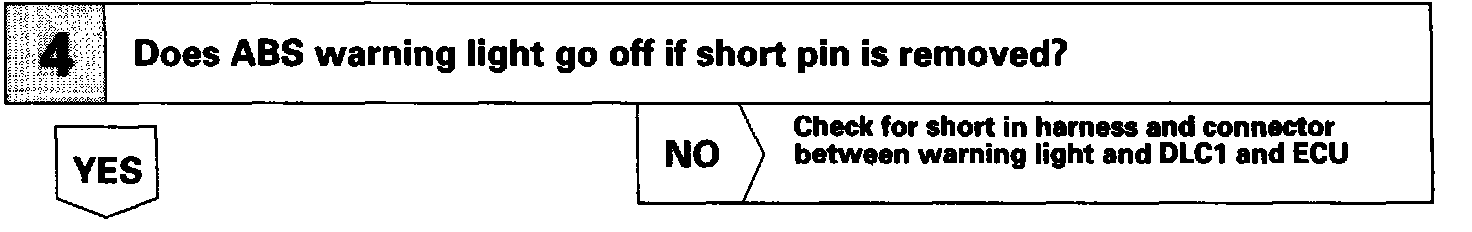

Step 4:

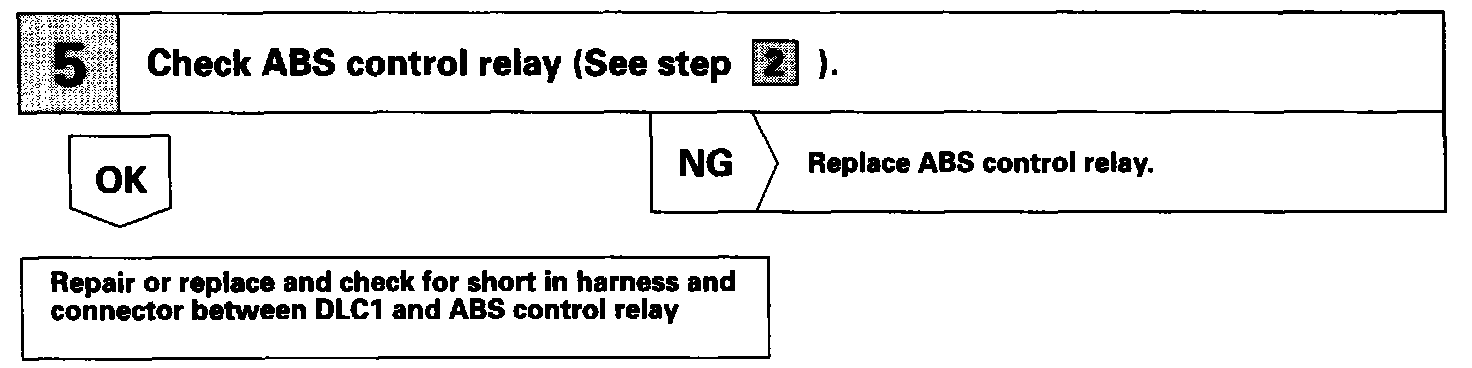

Step 5:
