Windows - Improved Performance In Cold Climate

BODY: BO001-97

February 7, 1997

Title:
REAR DOOR GLASS PERFORMANCE IN COLD CLIMATE

Models:
'95-'96 Corolla

Introduction

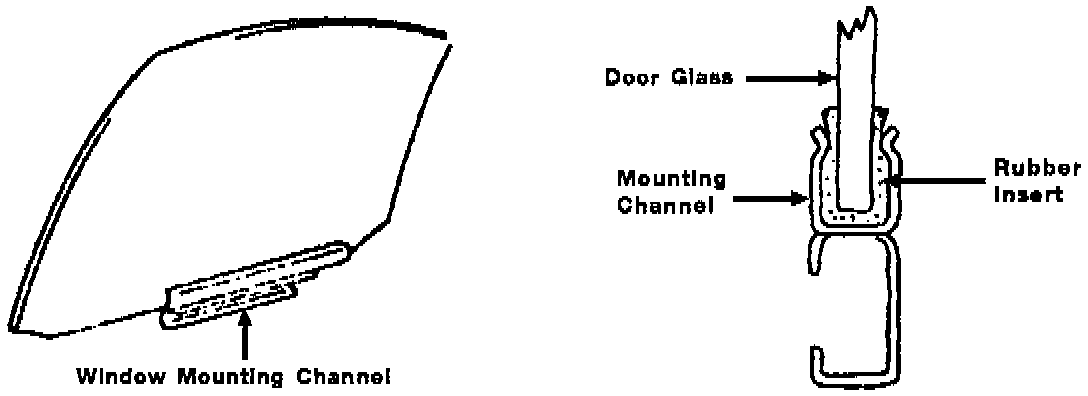

To enhance the performance of the rear door glass on 1995 - 1996 NUMMI Corollas in cold climates, revisions to the mounting channel rubber insert have been made in production.

NOTE:
Service part is NOT affected

Production Change Information

1996 NUMMI Corollas starting with VIN 1NX*****TZ482083

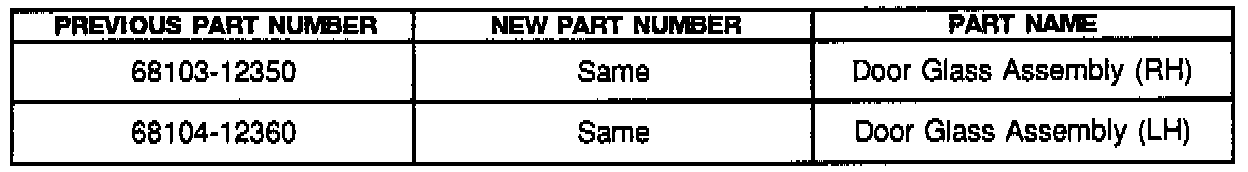

Parts Information





Warranty Information

Field Fix Procedures

Remove and replace the rear door glass assembly with service part:

1. Remove door trim panel.

2. Remove rear door quarter glass and vertical channel.

3. Remove window regulator bolts.

4. Remove door glass.

Reverse procedure to reinstall rear door glass.
