Toyota
>>
1996
>>
Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Connector Views
Connector Views

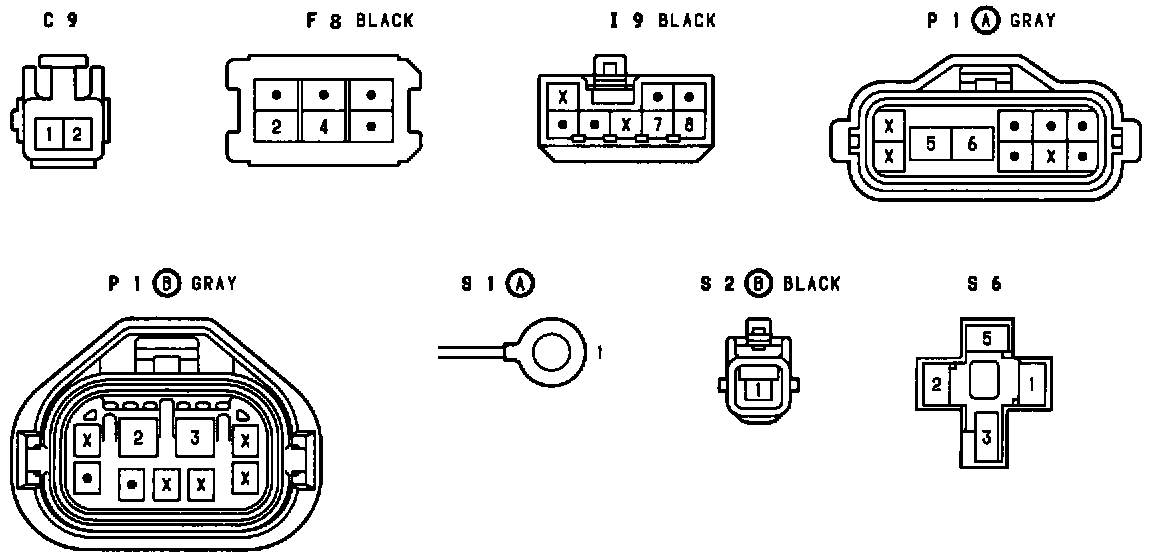

Starting-Connectors:
