Home
>>
Toyota
>>
1996
>>
Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

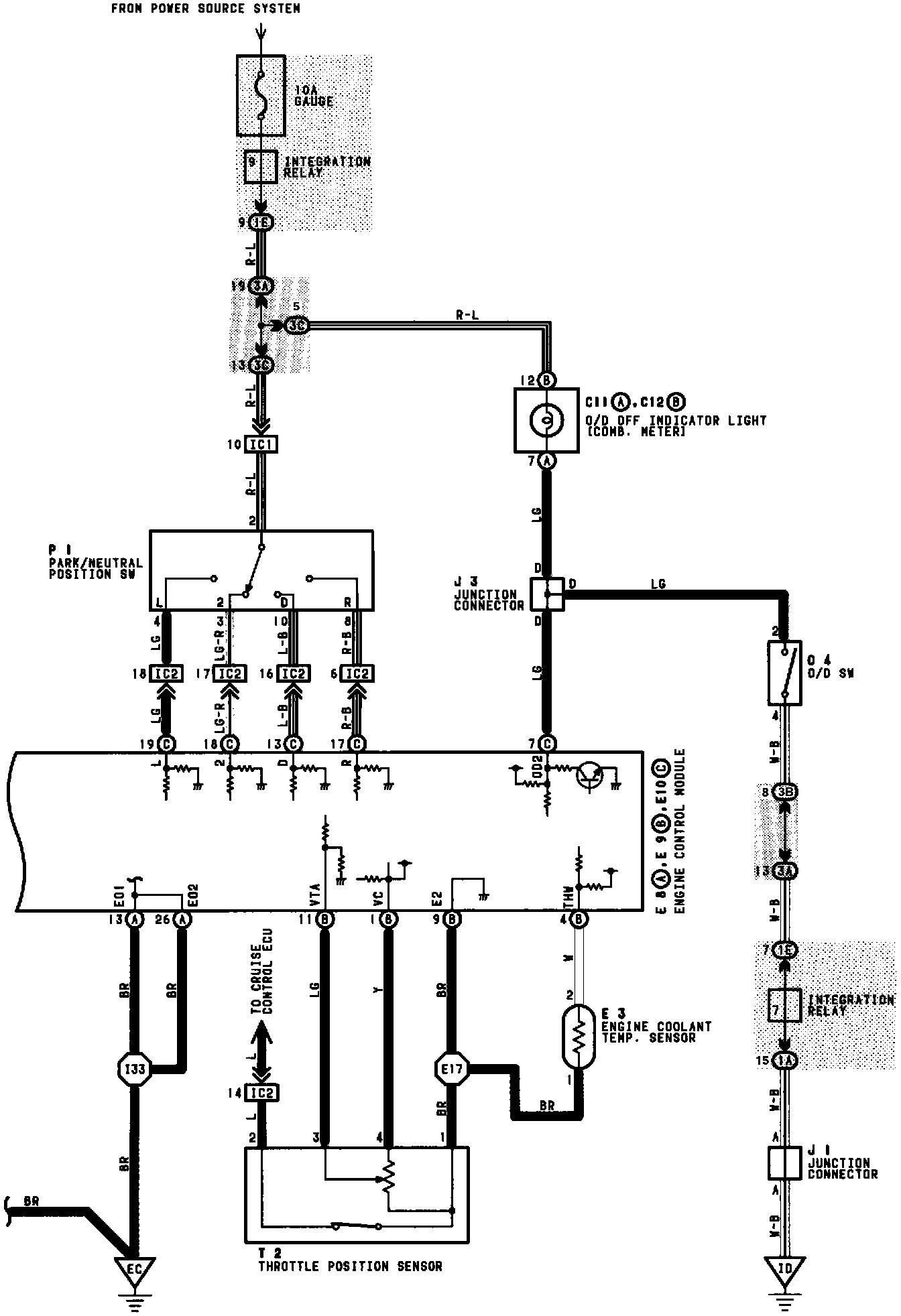

Electronically Controlled Transmission (Part 1 Of 2):

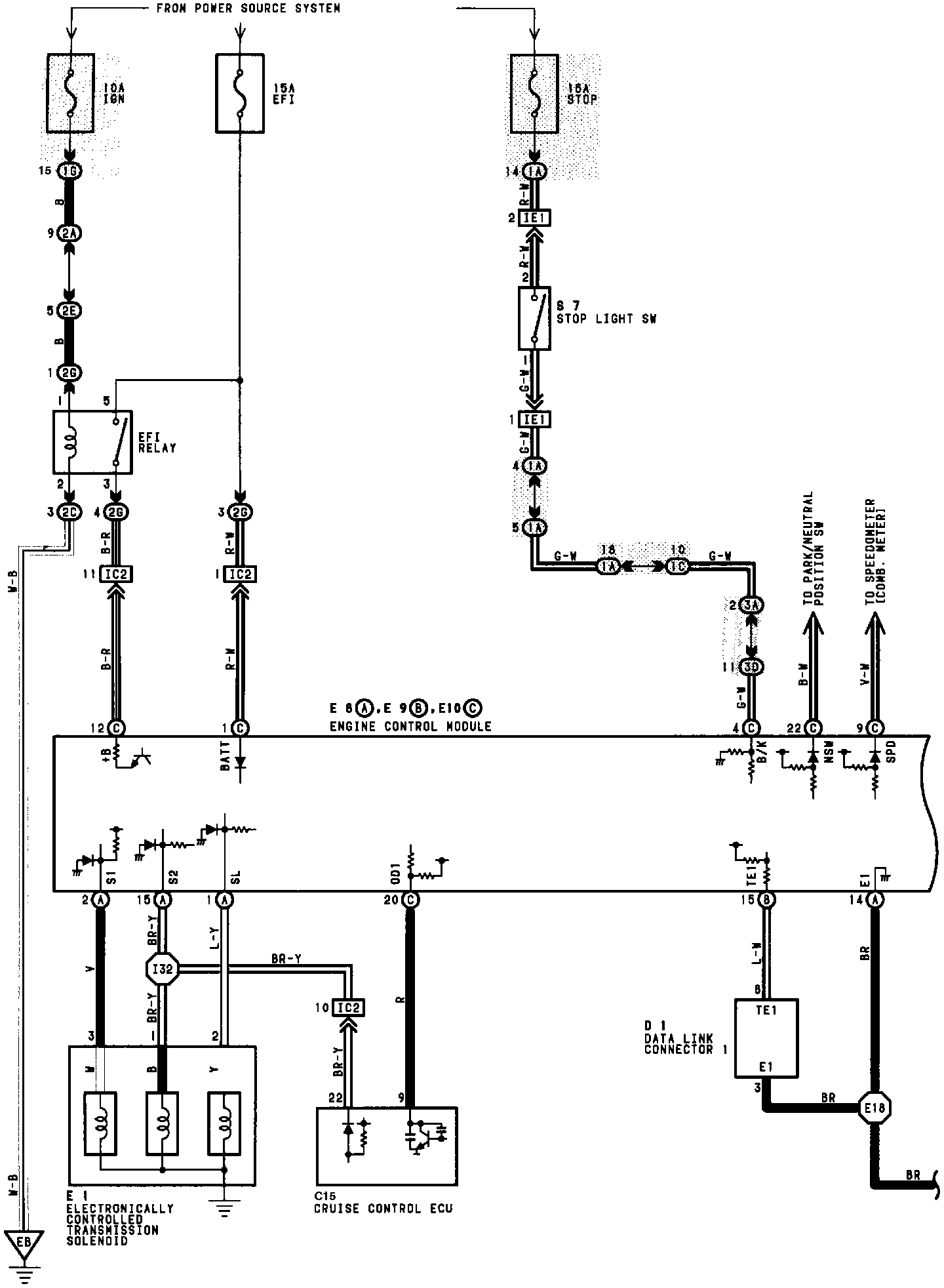

Electronically Controlled Transmission (Part 2 Of 2):
